WIRING HARNESS (E03)

LS650 BOULEVARD S40 2012 (L2) USA CALIFORNI CANADA (E03 E33 E28)

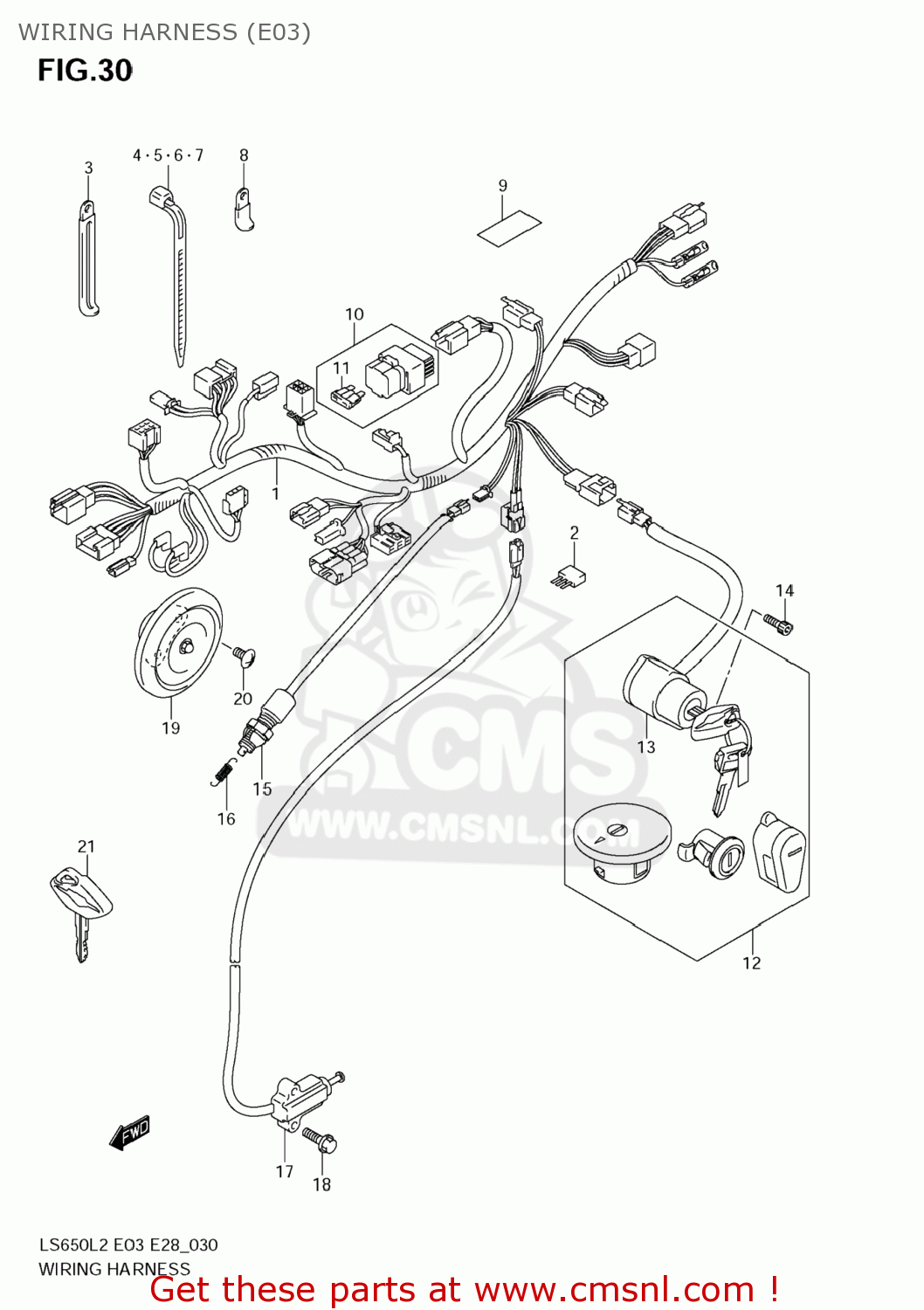

Wiring harness (e03) diagram LS650 BOULEVARD S40 2012 (L2) USA CALIFORNI CANADA (E03 E33 E28)

WIRING HARNESS (E03) LS650 BOULEVARD S40 2012 (L2) USA CALIFORNI CANADA (E03 E33 E28)
WIRING HARNESS (E03) LS650 BOULEVARD S40 2012 (L2) USA CALIFORNI CANADA (E03 E33 E28)
WIRING HARNESS (E03) LS650 BOULEVARD S40 2012 (L2) USA CALIFORNI CANADA (E03 E33 E28)
prices are in EUR
ref
part #
description
quantity
1
3661024BD0
ref: 1
HARNESS,WIRING
€ 0.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
0940408419
ref: 3
CLAMP(L:80)
€ 2.00
4
0940711401
ref: 4
CLAMP(L:95)
0940711401
€ 2.50
5
0940714403
ref: 5
CLAMP(L:125)
0940714403
€ 2.50
6
0940718402
ref: 6
CLAMP(L:165)
0940718402
€ 2.50
7
0940725401
ref: 7
CLAMP(L:235)
0940725401
€ 4.00
8
3665124B10
ref: 8
CLAMP,WIRING HARNESS
€ 0.00
9
3693060A10
ref: 9
COVER
€ 5.00
10
3674024B01
ref: 10
BOX ASSY,FUSE
3674024B01
€ 18.00
11
0948120101
ref: 11
FUSE(20A)
0948120101
€ 2.00
12
3710124830
ref: 12
LOCK SET
€ 0.00
13
3711024B10
ref: 13
SWITCH ASSY,IGNITION
€ 134.50
14
071300516B
ref: 14
BOLT
€ 2.00
15
3774045D00
ref: 15
37740-31D00
SWITCH ASSY,STOP LAMP
3774045D00
€ 20.50
16
0944306077
ref: 16
SPRING
0944306077
€ 4.50
17
3784012X50
ref: 17
SWITCH ASSY,SIDE STAND WARNING
3784012X50
€ 76.00
18
015500620B
ref: 18
BOLT
015500620B
€ 2.50
19
3850024B00
ref: 19
HORN ASSY
€ 52.00
20
021420612B
ref: 20
SCREW
021420612B
€ 2.00
21-1
3714638B00
ref: 21-1
KEY,BLANK(TYPE:C)
€ 0.00
21-1
3714638B00
ref: 21-1
KEY,BLANK(TYPE:C)
€ 0.00
21-2
3714638B10
ref: 21-2
KEY,BLANK(TYPE:D)
€ 51.50
21-2
3714638B10
ref: 21-2
KEY,BLANK(TYPE:D)
€ 51.50
21-3
3714638B20
ref: 21-3
KEY,BLANK(TYPE:E)
€ 0.00
21-3
3714638B20
ref: 21-3
KEY,BLANK(TYPE:E)
€ 0.00
21-4
3714638B30
ref: 21-4
KEY,BLANK(TYPE:F)
€ 51.50
21-4
3714638B30
ref: 21-4
KEY,BLANK(TYPE:F)
€ 51.50
