GEAR SHIFTING
LS650 SAVAGE 1986 (G) USA (E03)

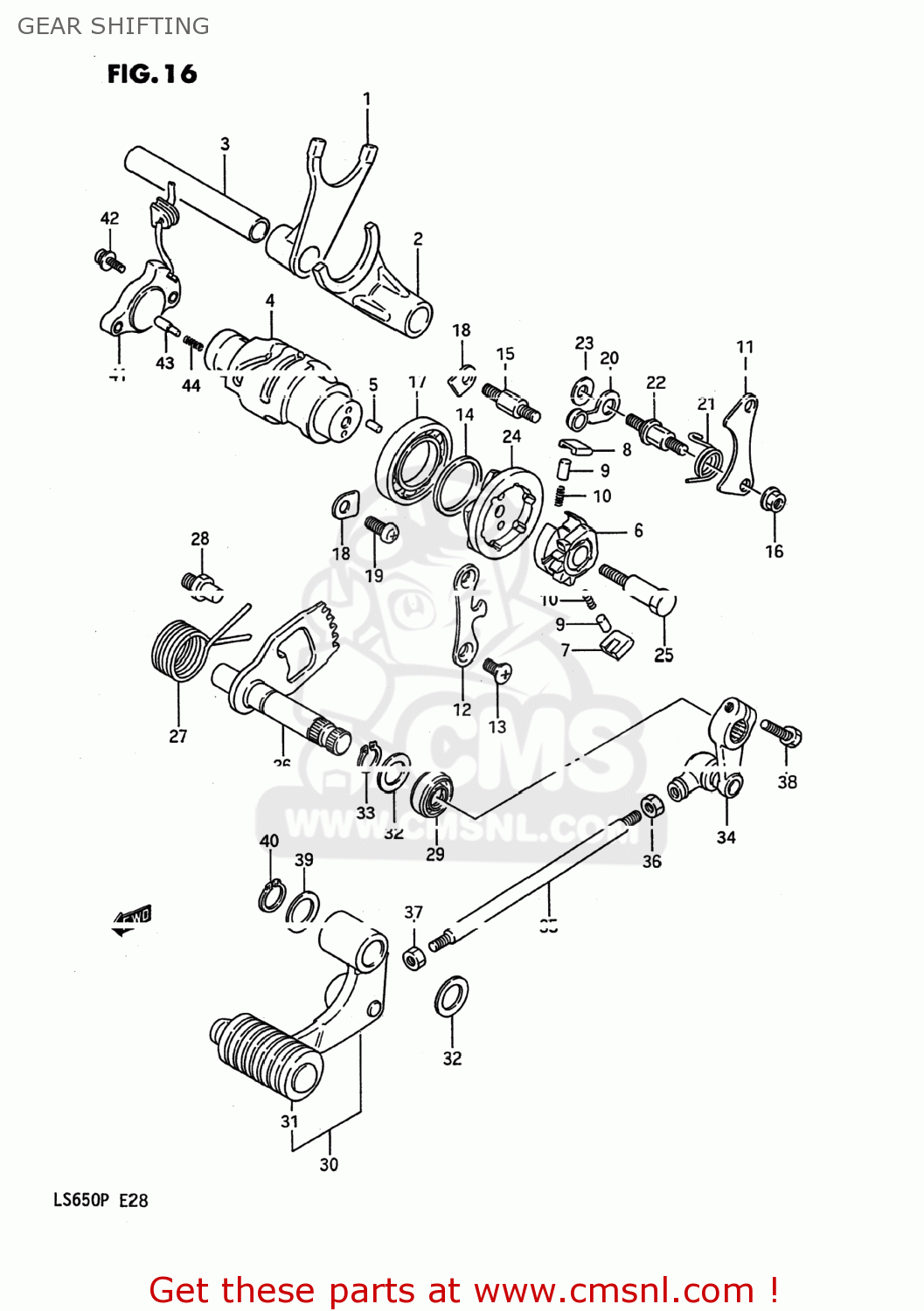

Gear shifting diagram LS650 SAVAGE 1986 (G) USA (E03)
GEAR SHIFTING LS650 SAVAGE 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521124B00
ref: 1
FORK,GEAR SHIFT NO.1
€ 38.50
2
2522124B00
ref: 2
FORK,GEAR SHIFT NO.2
€ 57.00
3
2541124B00
ref: 3
SHAFT,GEAR SHIFT FORK
€ 19.00
4
2531024B02
ref: 4
CAM,GEAR SHIFT
€ 85.00
5
0422104089
ref: 5
PIN
€ 1.50
6
2532231301
ref: 6
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533138A00
ref: 11
LIFTER,GEAR SHIFT POLE
€ 4.50
12
2534138A00
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
0916025059
ref: 14
WASHER(25X32X3)
€ 5.00
15
2533238A00
ref: 15
BOSS,SHIFT PAWL LIFTER
€ 3.50
16
0915906017
ref: 16
08319-31067
NUT
€ 2.50
17
0926225002
ref: 17
09262-25006
BEARING
€ 24.00
18
2474120A10
ref: 18
24741-21A00
RETAINER,SHIFT CAM,R BEARING
€ 2.00
19
0211206128
ref: 19
02112-06127
SCREW 6X12
€ 2.00
20
2535024B00
ref: 20
STOPPER,GEAR SHIFT CAM
€ 8.00
21
0944817021
ref: 21
SPRING
€ 5.00
22
2535612C00
ref: 22
SUPPORT,CAM STOPPER ARM
€ 9.50
23
0821106141
ref: 23
WASHER
€ 2.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
€ 15.00
25
2531238A00
ref: 25
PIN,SHIFT CAM DRIVEN GEAR
€ 4.00
26
2551024B01
ref: 26
SHAFT,GEAR SHIFT
€ 66.00
27
0944426012
ref: 27
09444-26013
SPRING
€ 3.50
28
2567101000
ref: 28
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
09285-12006
OIL SEAL
€ 7.00
30-1
2560024B01
ref: 30-1
25600-24B03
LEVER ASSEMBLY,GEAR SHIFTING
€ 34.50
30-2
2560024B03
ref: 30-2
LEVER ASSY,GEAR SHIFT
€ 34.50
31
2565220C00
ref: 31
RUBBER,GEAR SHIFT PEDAL
€ 8.00
32
0916012011
ref: 32
WASHER(12.5X20X1)
€ 1.50
33
0833131126
ref: 33
08331-3112A
CIRCLIP,12 MM
€ 2.00
34
2552022A00
ref: 34
ARM,GEAR SHIFT LINK
€ 46.50
35
2552549300
ref: 35
25525-21E50
ROD,GEAR SHIFT LINK
€ 12.00
36
0914006011
ref: 36
NUT
€ 1.50
37
0831011067
ref: 37
08310-00067
NUT 6MM
€ 2.50
38
0110706207
ref: 38
01500-06207
BOLT
€ 2.00
39
0821212201
ref: 39
WASHER
€ 1.50
40
0833131126
ref: 40
08331-3112A
CIRCLIP,12 MM
€ 2.00
41-1
3772024B00
ref: 41-1
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 39.50
41-2
3772024B10
ref: 41-2
37720-24B30
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 49.00
42
0211275166
ref: 42
02112-7516A
SCREW
€ 2.50
43
0920905011
ref: 43
PIN(5X15.5)
€ 2.00
44
0944004010
ref: 44
SPRING
€ 1.50
