FRAME COVER
LS650 SAVAGE 1988 (J) USA (E03)

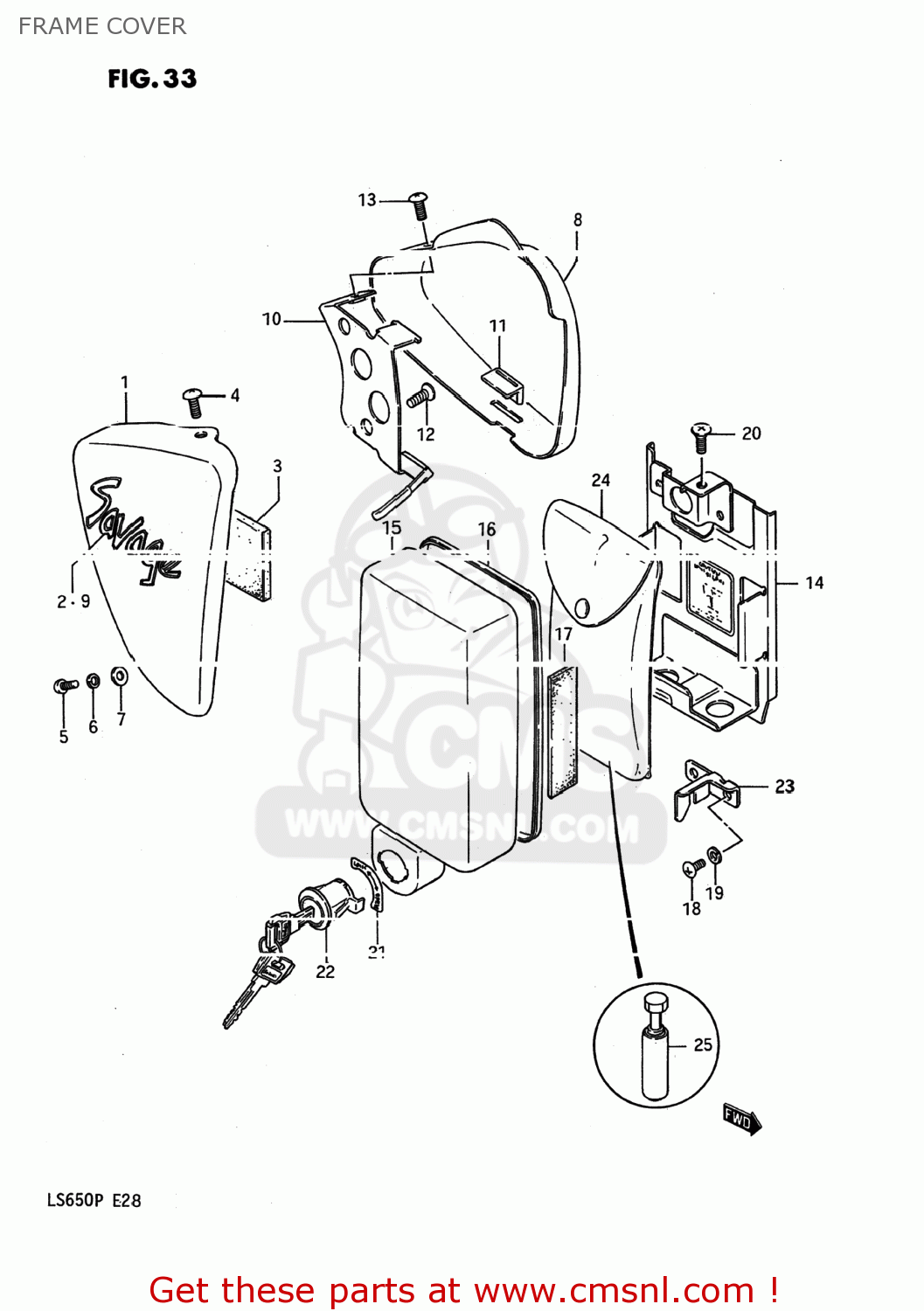

Frame cover diagram LS650 SAVAGE 1988 (J) USA (E03)
FRAME COVER LS650 SAVAGE 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711024B0013Z
ref: 1-1
47110-24B00-13L
COVER,FRAME,RIGHT
€ 88.50
1-2
4710024B0037X
ref: 1-2
ZIJDEKSEL.R
€ 100.00
1-3
4711024B0000J
ref: 1-3
47110-24B00-13L
COVER,FRAME,RIGHT
€ 88.50
1-4
4711024B0024V
ref: 1-4
47110-24B00-13L
COVER,FRAME,RIGHT (BLUE)
€ 88.50
1-5
4711024B0033D
ref: 1-5
47110-24B00-13L
COVER,FRAME,RIGHT
€ 88.50
1-6
4710024B001FX
ref: 1-6
COVER,FRAME,RH
€ 88.50
2-1
6813124B0023A
ref: 2-1
EMBLEM
€ 18.50
2-2
6813124B0022Z
ref: 2-2
EMBLEM
€ 17.50
2-2
6813124B0022Z
ref: 2-2
EMBLEM
€ 17.50
2-3
6813124B0038W
ref: 2-3
EMBLEM,FRAME COVER(BLUE)
€ 17.50
2-3
6813124B0038W
ref: 2-3
EMBLEM,FRAME COVER(BLUE)
€ 17.50
3
1371984150
ref: 3
PAD
€ 2.50
4
0214205124
ref: 4
02142-0512A
SCREW, FRONT & REAR
€ 1.50
5
0214205164
ref: 5
02142-0516A
SCREW
€ 2.50
6
0832121055
ref: 6
08321-0105A
WASHER,LOCK
€ 3.00
7
0832221055
ref: 7
08322-0105A
WASHER,5MM
€ 2.50
8-1
4721024B0013Z
ref: 8-1
47211-24B01-13L
COVER,FRAME,LEFT
€ 101.00
8-2
4720024B0037X
ref: 8-2
COVER,FRAME,L
€ 85.50
8-3
4721024B0000J
ref: 8-3
47211-24B01-13L
COVER,FRAME,LEFT
€ 101.00
8-4
4721024B0024V
ref: 8-4
47211-24B01-13L
COVER,FRAME,LEFT
€ 101.00
8-5
4721024B0033D
ref: 8-5
47211-24B01-13L
COVER,FRAME,LEFT
€ 101.00
8-6
4720024B001FX
ref: 8-6
COVER,FRAME,LH
€ 101.00
9-1
6813124B0023A
ref: 9-1
EMBLEM
€ 18.50
9-2
6813124B0022Z
ref: 9-2
EMBLEM
€ 17.50
9-2
6813124B0022Z
ref: 9-2
EMBLEM
€ 17.50
9-3
6813124B0038W
ref: 9-3
EMBLEM,FRAME COVER(BLUE)
€ 17.50
9-3
6813124B0038W
ref: 9-3
EMBLEM,FRAME COVER(BLUE)
€ 17.50
10
4718024B03
ref: 10
BRACKET,FRAME COVER,L
€ 13.00
11
4711745000
ref: 11
CUSHION,FRAME COVER
€ 1.50
12
0212206125
ref: 12
02122-0612A
SCREW
€ 3.00
13
0214205124
ref: 13
02142-0512A
SCREW, FRONT & REAR
€ 1.50
14
4743024B01
ref: 14
HOLDER,TOOL
€ 11.00
15-1
4744024B00
ref: 15-1
47440-24B20
COVER COMP,TOOL HOLDER
€ 36.00
15-2
4744024B10
ref: 15-2
47440-24B20
COVER COMP,TOOL HOLDER
€ 36.00
16
4744524B00
ref: 16
MOLDING
€ 2.50
17
3365238A10
ref: 17
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
18-1
0211205105
ref: 18-1
02112-0510A
SCREW
€ 2.00
18-2
0211215105
ref: 18-2
02142-0510B
SCREW
€ 1.50
19
0832221055
ref: 19
08322-0105A
WASHER,5MM
€ 2.50
20
0211206108
ref: 20
02112-06107
SCREW
€ 1.50
21
6822624B00
ref: 21
LABEL,TOOL LOCK COVER
€ 1.50
22-1
9570024B00KEY
ref: 22-1
95700-24871
LOCK SET
€ 45.00
22-2
9570024870
ref: 22-2
95700-24871
LOCK SET,TOOL HOLDER
€ 45.00
23
4743424B00
ref: 23
PLATE,TOOL HOLDER LOCK
€ 2.50
24-1
0980000318
ref: 24-1
09800-21012
TOOL ASSY
€ 40.00
24-2
0980000347
ref: 24-2
09800-21012
TOOL ASSY
€ 40.00
25
9622024B00
ref: 25
GAUGE ASSY,TENSION
€ 21.50
