REAR COMBINATION LAMP
LS650 SAVAGE 1995 (S) USA (E03)

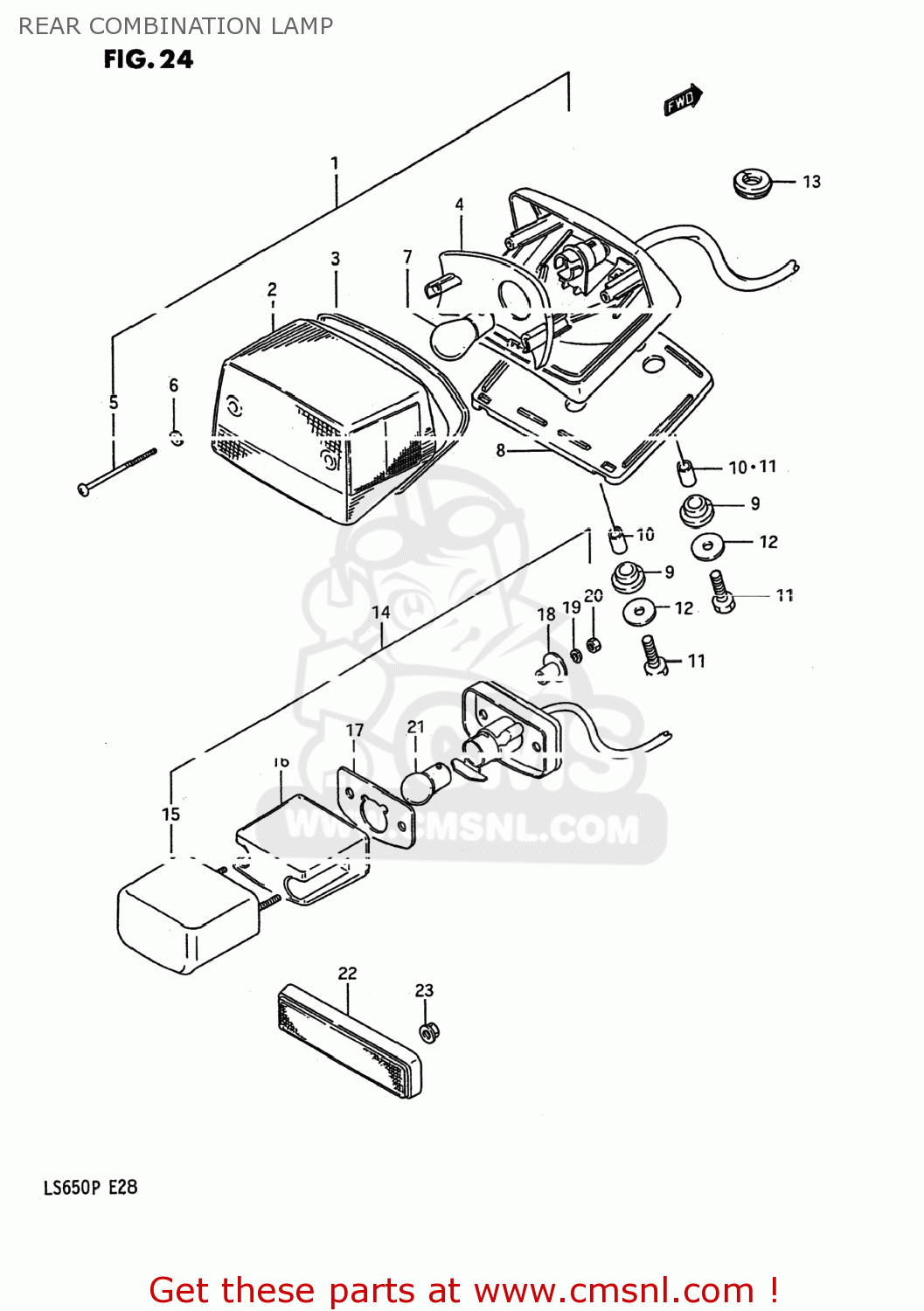

Rear combination lamp diagram LS650 SAVAGE 1995 (S) USA (E03)
REAR COMBINATION LAMP LS650 SAVAGE 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571024B30
ref: 1-1
LAMP ASSY,RR COMBINATION
€ 0.00
1-2
3571024B10
ref: 1-2
LAMP ASSY,RR COMBINATION
€ 0.00
2
3571224B30
ref: 2
LENS
€ 28.50
3
3571338A00
ref: 3
35713-31D00
GASKET (NAS)
€ 9.50
4
3571438A00
ref: 4
REFLECTOR
€ 16.50
5
3572344130
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7-1
0947112084
ref: 7-1
BULB(12V23/8W,TOKAI DENSO)
€ 6.00
7-2
0947112128
ref: 7-2
BULB(12V21/5W,BF141-49642A)
€ 6.00
8-1
3576524B30
ref: 8-1
35765-24B00
CUSHION,REAR COMBINATION LAMP
€ 12.00
8-2
3576524B00
ref: 8-2
CUSHION
€ 12.00
9
3576426470
ref: 9
CUSHION
€ 2.50
10-1
3576637190
ref: 10-1
SPACER
€ 2.00
10-2
3576637190
ref: 10-2
SPACER
€ 2.00
11
3576640640
ref: 11
SPACER
€ 0.00
12
0911606087
ref: 12
09116-06047
BOLT 6X25
€ 2.00
13
0930809013
ref: 13
GROMMET
€ 2.00
14-1
3591024B30
ref: 14-1
35910-24B30-999
LAMP ASSEMBLY,LICENSE
€ 142.50
14-2
3591024B00
ref: 14-2
35910-24B30-999
LAMP ASSEMBLY,LICENSE
€ 142.50
14-3
3591024B00999
ref: 14-3
35910-24B30-999
LAMP ASSEMBLY,LICENSE
€ 142.50
15-1
3591738A30
ref: 15-1
35917-38A20
COVER,LICENSE LAMP
€ 121.50
15-2
3591738A20
ref: 15-2
COVER,LICENSE LAMP
€ 121.50
16
3591238A30
ref: 16
LENS
€ 11.50
17
3591338A30
ref: 17
GASKET,LICENSE LAMP (NAS)
€ 2.00
18
3576624B30
ref: 18
SPACER
€ 2.00
19
0832121047
ref: 19
08321-0104A
WASHER,LOCK 4M
€ 2.00
20
0831011047
ref: 20
08310-00047
NUT
€ 2.00
21-1
0947112037
ref: 21-1
09471-12141
BULB
€ 7.00
21-2
0947112141
ref: 21-2
BULB(12V8W)
€ 7.00
21-3
0947112141
ref: 21-3
BULB(12V8W)
€ 7.00
22
3597038A00
ref: 22
REFLEX REFLECTOR ASSY,RR
€ 25.50
23
0831616056
ref: 23
08316-1005A
NUT
€ 2.50
