CARBURETOR
LS650F SAVAGE 1987 (H) USA (E03)

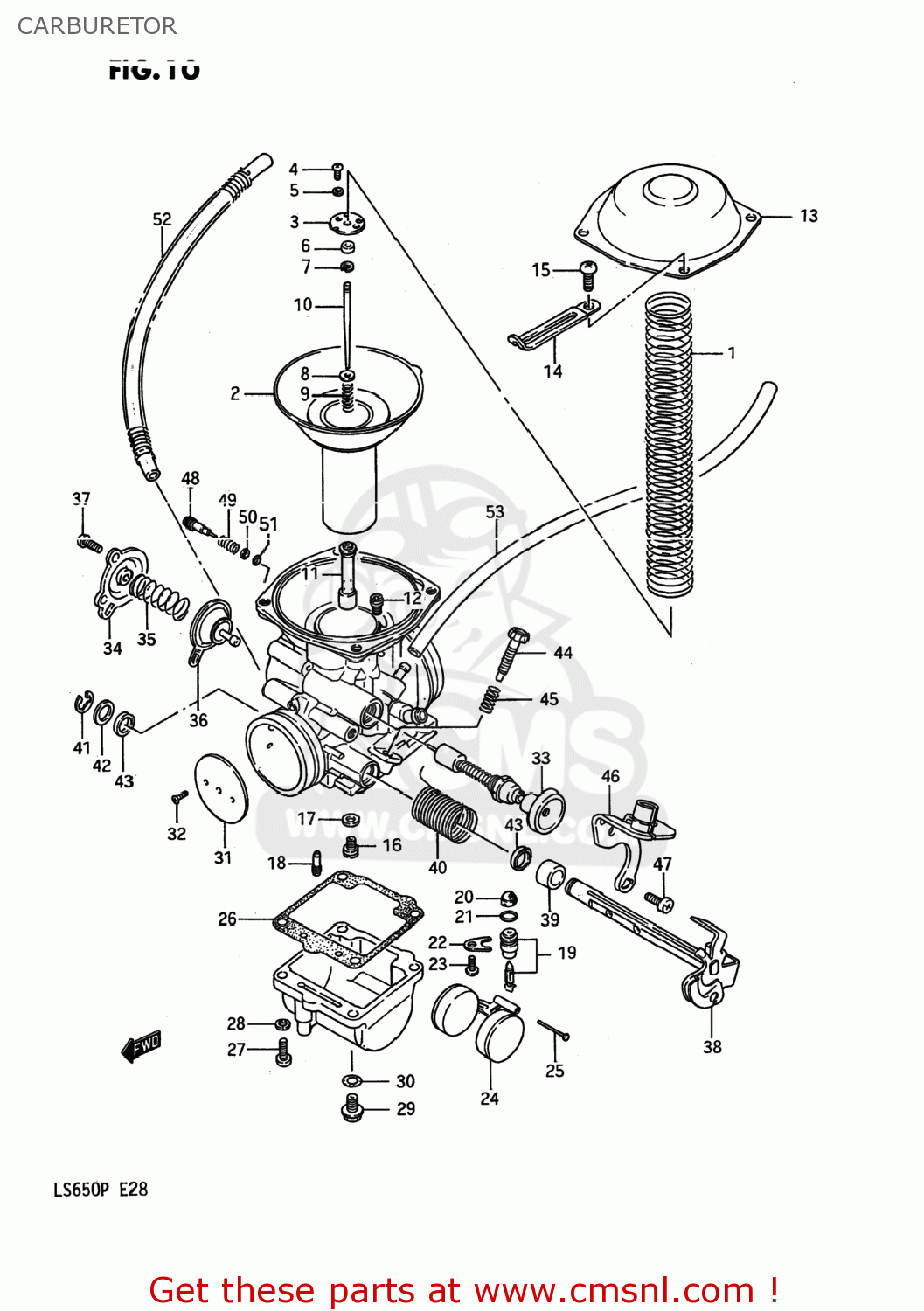

Carburetor diagram LS650F SAVAGE 1987 (H) USA (E03)
CARBURETOR LS650F SAVAGE 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320024B11
ref:
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1
1350324B00
ref: 1
SPRING
€ 11.00
2
1350024B00
ref: 2
13500-24B40
DIAPHRAGM ASSEMBLY
€ 136.00
3
1338937400
ref: 3
PLATE
€ 5.50
4
0211203066
ref: 4
02112-0306B
SCREW
€ 2.00
5
0832121036
ref: 5
08321-2103B
LOCK WASHER
€ 1.50
6
1338744030
ref: 6
RING
€ 5.00
7
1339431210
ref: 7
CLIP,NEEDLE
€ 3.50
8
1338244030
ref: 8
WASHER
€ 3.50
9
1338844030
ref: 9
SPRING
€ 6.00
10
1338324B40
ref: 10
NEEDLE,JET
€ 14.00
11
0949400541
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12
0949170012
ref: 12
JET,PILOT AIR(70)
€ 7.50
13
1350237400
ref: 13
COVER
€ 18.00
14
1367105A20
ref: 14
09404-06433
CLIP
€ 3.00
15
0211205106
ref: 15
02112-0510A
SCREW 5X10
€ 2.00
16
0949131008
ref: 16
JET,MAIN(155)
€ 9.50
17
1333244080
ref: 17
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
18
0949247013
ref: 18
JET,PILOT(47.5)
€ 12.50
19
1337037400
ref: 19
13370-24C80
VALVE ASSEMBLY,NEEDLE
€ 66.50
20
1337684110
ref: 20
13376-19F00
FILTER
€ 6.50
21
1337444080
ref: 21
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
22
1337339110
ref: 22
PLATE
€ 6.50
23
0211204066
ref: 23
02112-0406B
SCREW
€ 2.00
24
1325037400
ref: 24
FLOAT
€ 26.00
25
1325492311
ref: 25
PIN,FLOAT
€ 2.00
26
1325137100
ref: 26
13251-38300
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
27
0211205166
ref: 27
02112-0516A
SCREW
€ 2.00
28
0832121056
ref: 28
08321-0105A
LOCK WASHER
€ 3.00
29
1324744080
ref: 29
PLUG,DRAIN
€ 9.50
30
1324644080
ref: 30
GASKET (NAS)
€ 3.50
31
1355137400
ref: 31
VALVE,THROTTLE (BUTTERFLY)
€ 43.00
32
1360444080
ref: 32
SCREW
€ 3.50
33
1341124B00
ref: 33
13411-24C00
PLUNGER ASSEMBLY
€ 42.00
34
1348438A10
ref: 34
COVER
€ 16.00
35
1348124B00
ref: 35
SPRING
€ 3.00
36
1348005A10
ref: 36
DIAPHRAGM ASSY
€ 54.50
37
0211204106
ref: 37
02112-0410A
SCREWM4X0.7X10
€ 1.00
38
1355024B00
ref: 38
SHAFT ASSEMBLY,THROTTLE
€ 39.50
39
1355705A20
ref: 39
RING
€ 3.00
40
1357324B00
ref: 40
SPRING
€ 0.00
41
1361744080
ref: 41
E RING
€ 3.50
42
1355747070
ref: 42
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
43
1365151010
ref: 43
SEAL
€ 4.00
44
1326737100
ref: 44
13267-25D00
SCREW,THROTTLE STOP
€ 9.00
45
1327193011
ref: 45
SPRING
€ 4.50
46
1362124B01
ref: 46
BRACKET ASSY
€ 32.50
47
1360545420
ref: 47
02112-0510A
SCREW
€ 2.00
48
1326937410
ref: 48
13269-37400
SCREW,PILOT AIR
€ 9.50
49
1326847070
ref: 49
SPRING
€ 5.00
50
1329129900
ref: 50
WASHER
€ 2.00
51
1329529900
ref: 51
O RING,PILOT AIR SCREW
€ 4.00
52
1331824B00
ref: 52
13318-24C00
HOSE ASSEMBLY
€ 18.50
53
1368422A00
ref: 53
44420-44AR0
HOSE
€ 13.00
