HANDLEBAR - CONTROL CABLE (LS650FG/FJ/FK/FL)

LS650P SAVAGE 1988 (J) USA (E03)

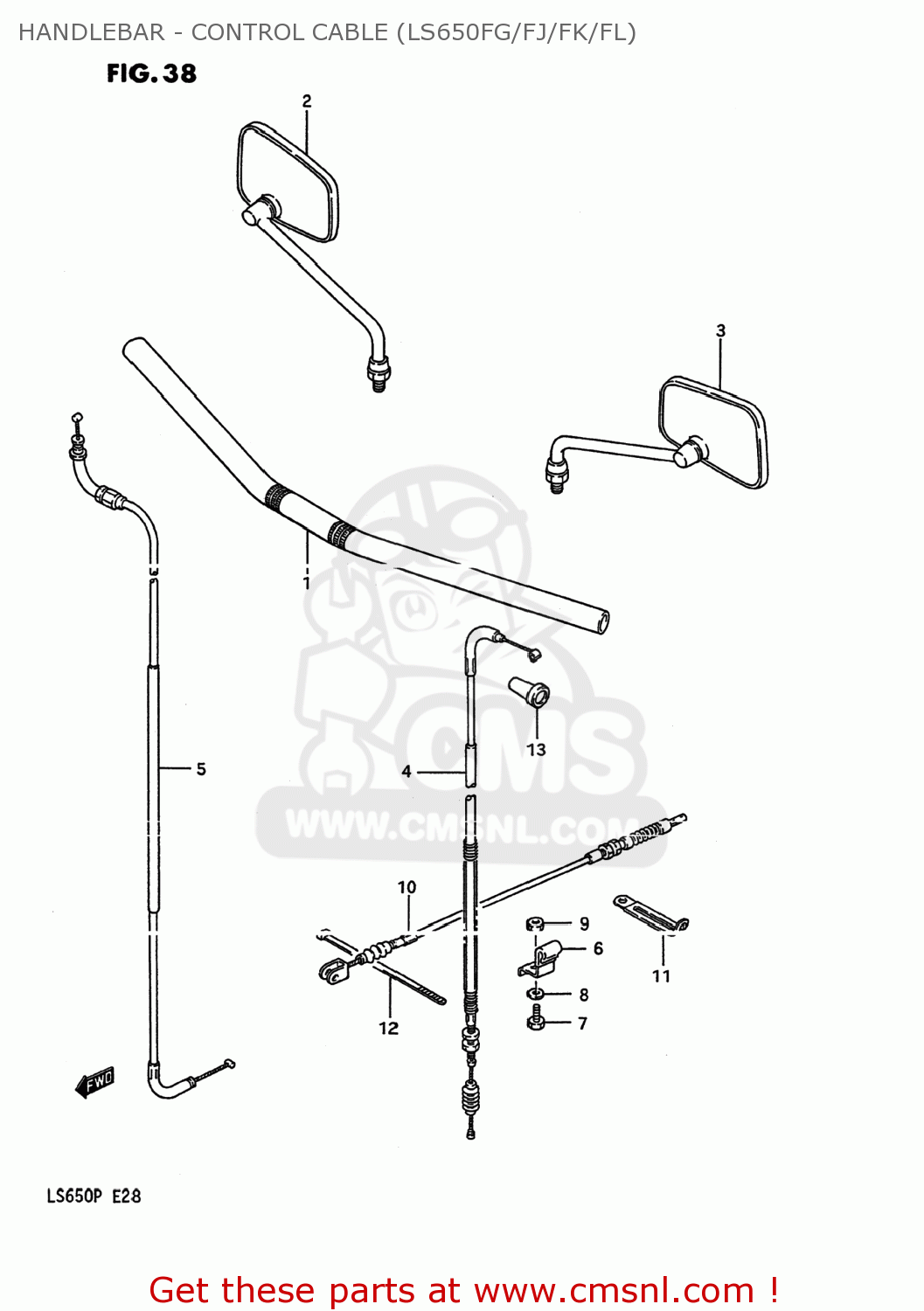

Handlebar - control cable (ls650fg/fj/fk/fl) diagram LS650P SAVAGE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5611024B10
ref: 1-1
56110-24B30

HANDLEBAR

€ 98.50

1-1

5611024B10
ref: 1-1
56110-24B30

HANDLEBAR

€ 98.50

1-2

5611024B30
ref: 1-2

HANDLEBAR

€ 98.50

5650024B10
ref: 2

MIRROR ASSY,RR VIEW,R

€ 78.00

5660024B10
ref: 3

MIRROR ASSY,RR VIEW,L

€ 78.00

5820024B02
ref: 4

CABLE ASSY,CLUTCH

€ 36.00

5830024B02
ref: 5

CABLE ASSY,THROTTLE

€ 30.50

5862124B00
ref: 6
58620-24B00

GUIDE,CABLE

€ 4.50

0110706165
ref: 7
01500-0616A

BOLT 6X16

€ 2.00

0832121064
ref: 8
08321-0106A

WASHER,LOCK

€ 2.00

0831011065
ref: 9
08310-0006A

NUT

€ 2.00

5883024B00
ref: 10
58830-24B01

CABLE COMP,STOP LAMP SWITCH

€ 24.00

0940408402
ref: 11
09404-08420

CLAMP

€ 3.50

0940709402
ref: 12

CLAMP

€ 3.00

5827331000
ref: 13

BOOT,CLUTCH CABLE

€ 2.50

5827331000
ref: 13

BOOT,CLUTCH CABLE

€ 2.50

5827331000
ref: 13

BOOT,CLUTCH CABLE

€ 2.50
