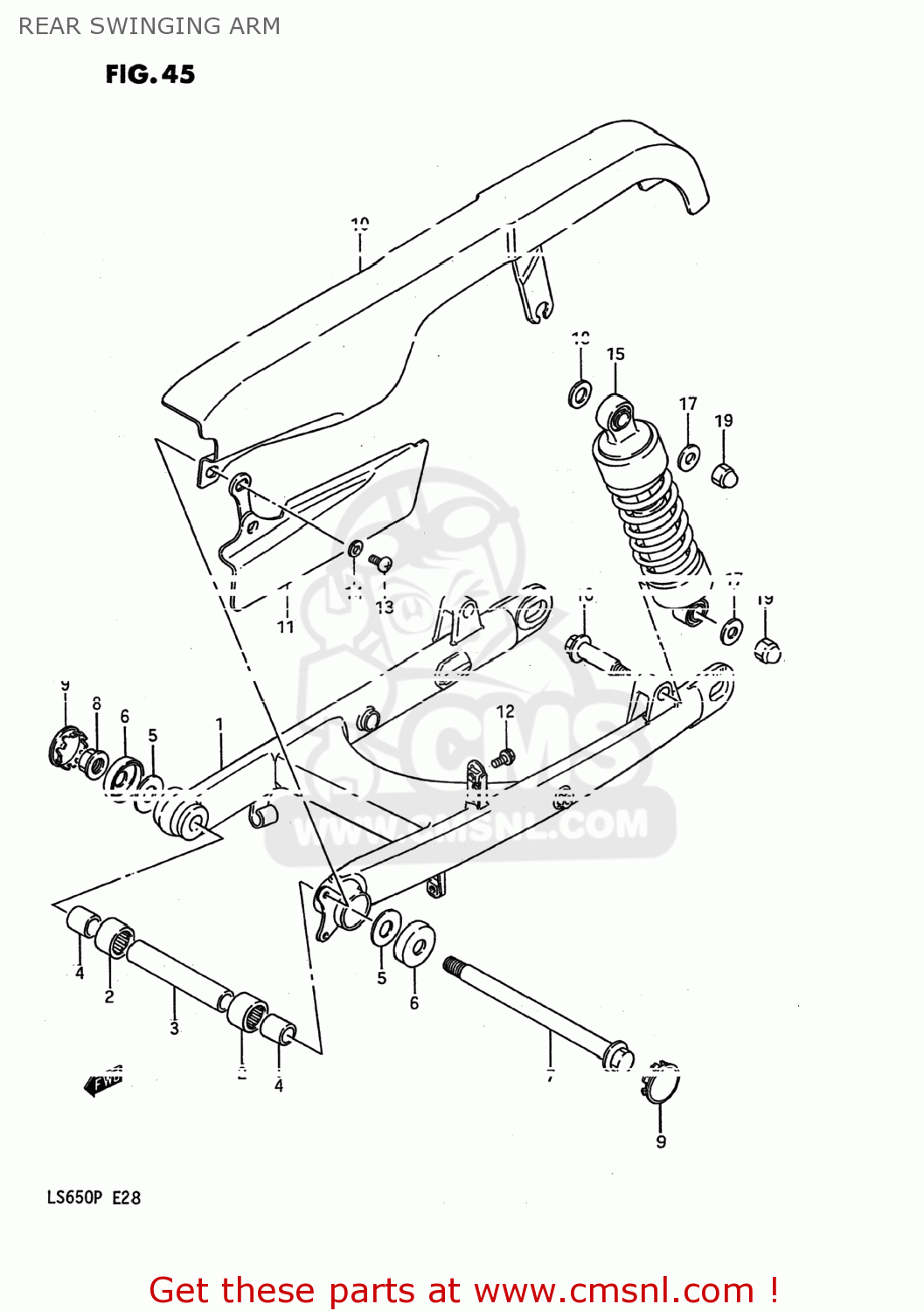

REAR SWINGING ARM

ref

part #

description

quantity

1

6110024B01019
ref: 1
61100-24B03-019

SWING ARM,REAR

€ 404.00

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

6128224B01
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 7.50

4

6125124B00
ref: 4

SPACER,RR SWGARM PIVOT

€ 9.00

5

0821114341
ref: 5

WASHER

€ 3.00

6

6126245002
ref: 6

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

7

6121124B00
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 15.50

8

0831931148
ref: 8
08319-3114A

NUT

€ 9.00

9

6122238A01
ref: 9

CAP,RR SWINGING ARM PIVOT,R

€ 6.50

10

6131024B02
ref: 10

BELT CASE,UPR

€ 155.50

11

6132024B02
ref: 11

BELT CASE,LWR

€ 29.50

12-1

0151706105
ref: 12-1
01550-0610A

BOLT

€ 2.50

12-2

0151706108
ref: 12-2
01550-06107

BOLT

€ 2.50

13-1

0214206108
ref: 13-1
02142-06107

SCREW

€ 2.00

13-2

0214236108
ref: 13-2

SCREW

€ 0.00

14

0832121067
ref: 14
08321-01067

WASHER,LOCK

€ 2.50

15

6210024B00
ref: 15

ABSORBER ASSY,RR SHOCK

€ 214.00

16

6231324B00
ref: 16

BOLT,RR SHOCK ABSORBER LWR

€ 9.00

17

0916010101
ref: 17
09160-10035

WASHER

€ 2.00

18

0916014009
ref: 18

WASHER(14.5X29X2.3)

€ 3.50

19

0831311107
ref: 19
08313-10107

NUT

€ 2.50
