FUEL TANK (MODEL K4)

LS650P SAVAGE 1999 (X) USA (E03)

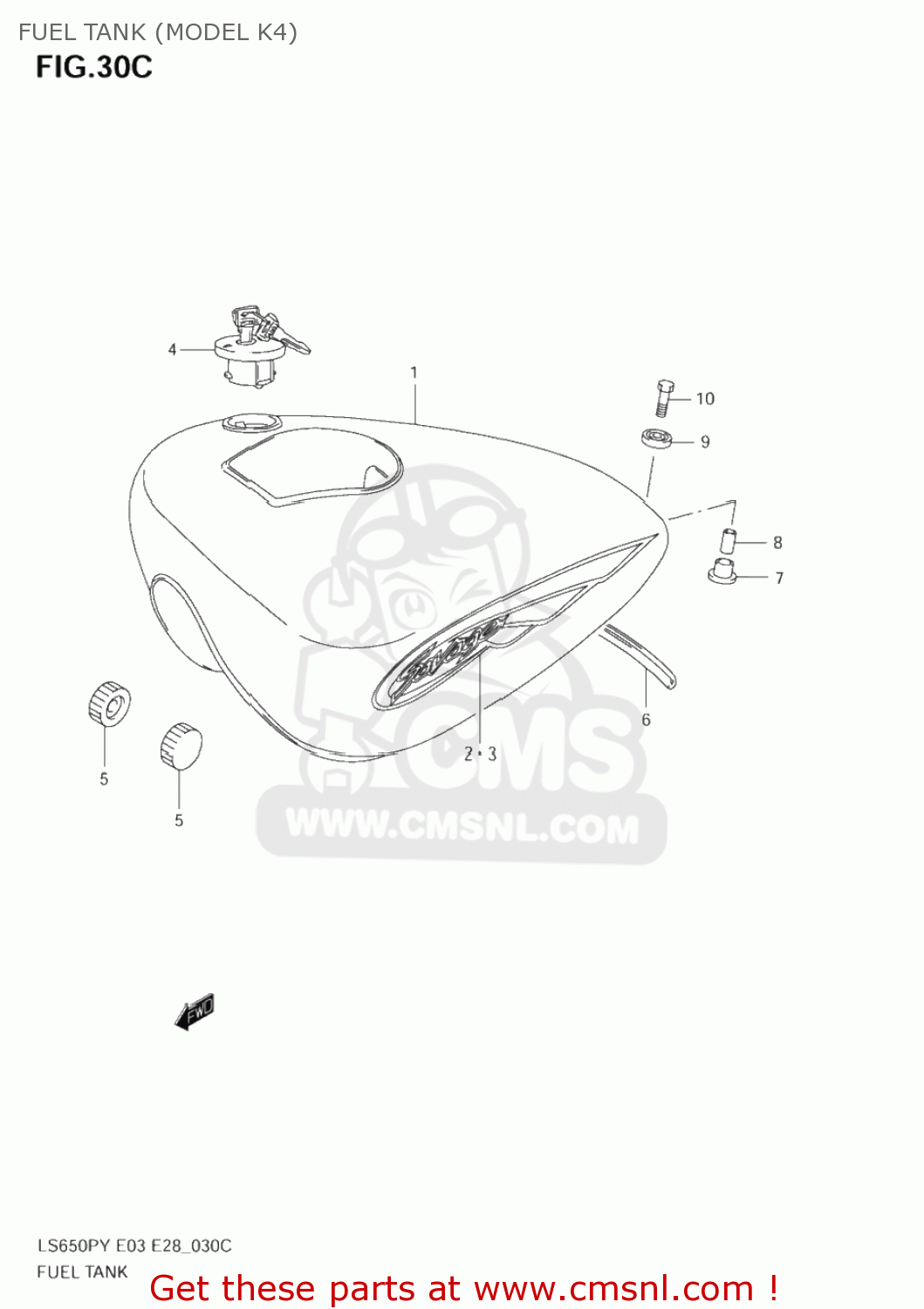

Fuel tank (model k4) diagram LS650P SAVAGE 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410024BF0YV2
ref: 1-1

TANK ASSY,FUEL(SILVER)

€ 0.00

1-2

4410024BF0YAT
ref: 1-2

TANK ASSY,FUEL(PURPLE)

€ 0.00

1-3

4410024BG0YV2
ref: 1-3

TANK ASSY,FUEL(SILVER)

€ 0.00

1-4

4410024BG0YAT
ref: 1-4

TANK ASSY,FUEL(PURPLE)

€ 0.00

2-1

6811124B30YFC
ref: 2-1

EMBLEM,FUEL TANK,R(BLACK)

€ 0.00

2-2

6811124B30YFD
ref: 2-2

EMBLEM,FUEL TANK,R(BLACK)

€ 0.00

3-1

6812124B30YFC
ref: 3-1

EMBLEM,FUEL TANK,L(BLACK)

€ 0.00

3-2

6812124B30YFD
ref: 3-2

EMBLEM,FUEL TANK,L(BLACK)

€ 0.00

4-1

4420024830
ref: 4-1

CAP SET,FUEL TANK

€ 109.50

4-2

4420024820
ref: 4-2

CAP SET,FUEL TANK

€ 150.50

0932910016
ref: 5

CUSHION

€ 3.00

4455224B00
ref: 6

MOLDING,FUEL TANK RR

€ 3.50

0932010020
ref: 7

CUSHION

€ 4.00

0918006271
ref: 8

SPACER(6.5X9X18)

€ 2.00

0932014013
ref: 9

CUSHION

€ 3.00

0150006303
ref: 10
01500-0630A

BOLT

€ 2.50
