FUEL COCK

RF600R 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E39 53)

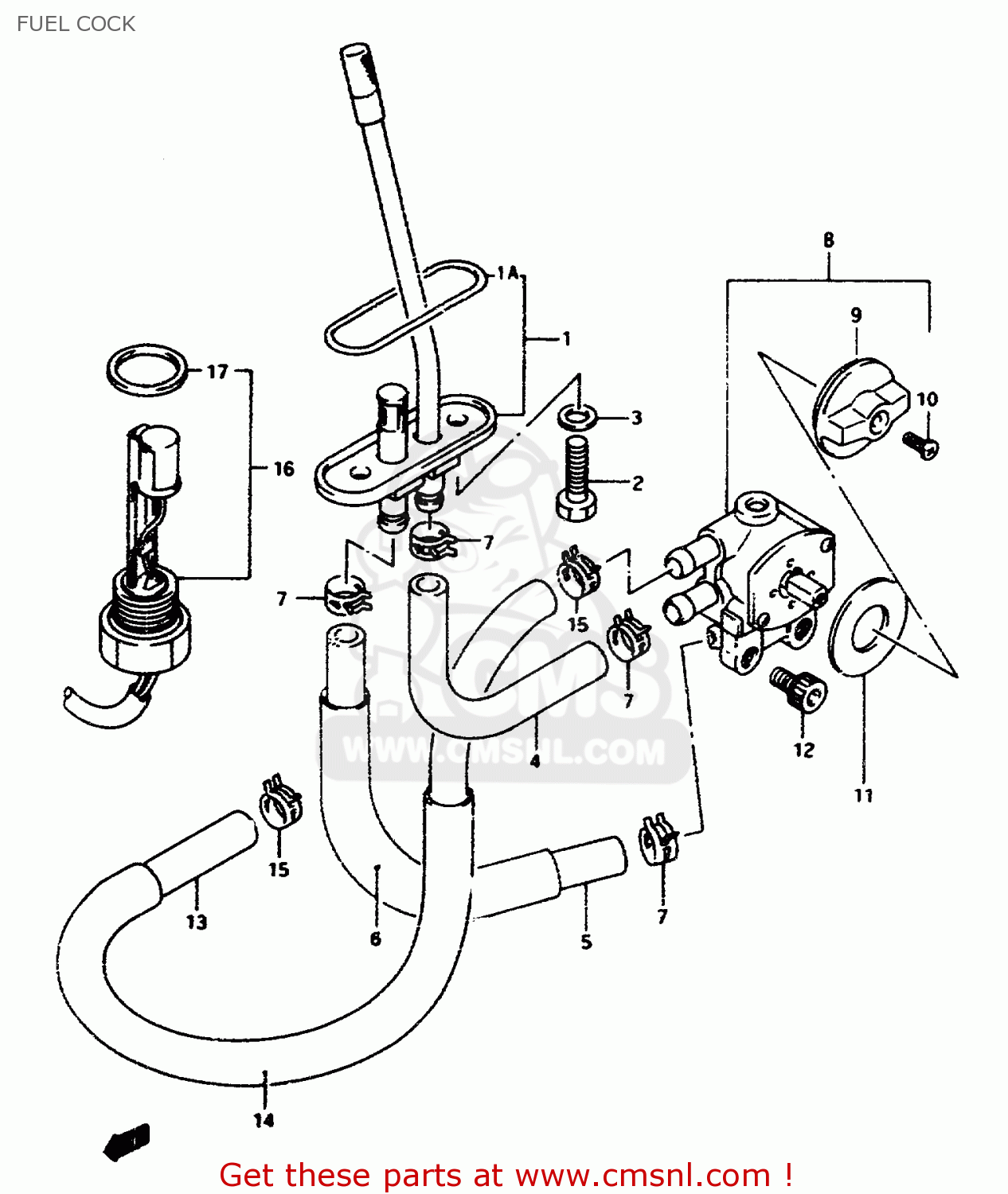

Fuel cock diagram RF600R 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E39 53)

FUEL COCK RF600R 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E39 53)
FUEL COCK RF600R 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E39 53)
FUEL COCK RF600R 1994 (R) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34 E39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4433021E00
ref: 1-1
MODEL P/R
FILTER,FUEL
4433021E00
€ 63.00
1-2
4433021E10
ref: 1-2
MODEL S/T/V
FILTER UNIT,FUEL
4433021E10
€ 63.00
1A
4434849170
ref: 1A
O RING
4434849170
€ 3.50
2-1
0912806006
ref: 2-1
MODEL P/R/S
BOLT(6X20)
0912806006
€ 2.00
2-2
0912806057
ref: 2-2
MODEL T
BOLT(6X20)
0912806057
€ 2.00
2-3
0211206207
ref: 2-3
MODEL V
SCREW
0211206207
€ 2.00
3
0916806026
ref: 3
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
4
4443121E00
ref: 4
HOSE,FUEL ON
4443121E00
€ 8.00
5
0935570125600
ref: 5
HOSE(7X12X600)
0935570125600
€ 26.00
6
0935114152600
ref: 6
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
7
0940111407
ref: 7
CLIP
0940111407
€ 2.50
8
4430021E00
ref: 8
COCK ASSY,FUEL
4430021E00
€ 99.50
9
4430621E00
ref: 9
LEVER,FUEL COCK
4430621E00
€ 17.50
10
4430721E00
ref: 10
SCREW,COCK LEVER
€ 2.00
11
4439121E00
ref: 11
COVER,FUEL COCK
4439121E00
€ 9.00
12-1
0214206087
ref: 12-1
MODEL P
SCREW
€ 1.00
12-2
0214206123
ref: 12-2
MODEL R/S/T/V
SCREW 6X12
0214206123
€ 2.00
13
0935570125600
ref: 13
HOSE(7X12X600)
0935570125600
€ 26.00
14
0935114152600
ref: 14
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
15
0940111407
ref: 15
CLIP
0940111407
€ 2.50
16
3481040C01
ref: 16
GAUGE ASSY,FUEL LEVEL
3481040C01
€ 120.50
17
3482540C00
ref: 17
GASKET,FUEL LEVEL GAUGE (NAS)
3482540C00
€ 6.50
