FUEL PUMP

RF600R 1996 (T) (E02 E04 E22 E24 E25 E34 E37)

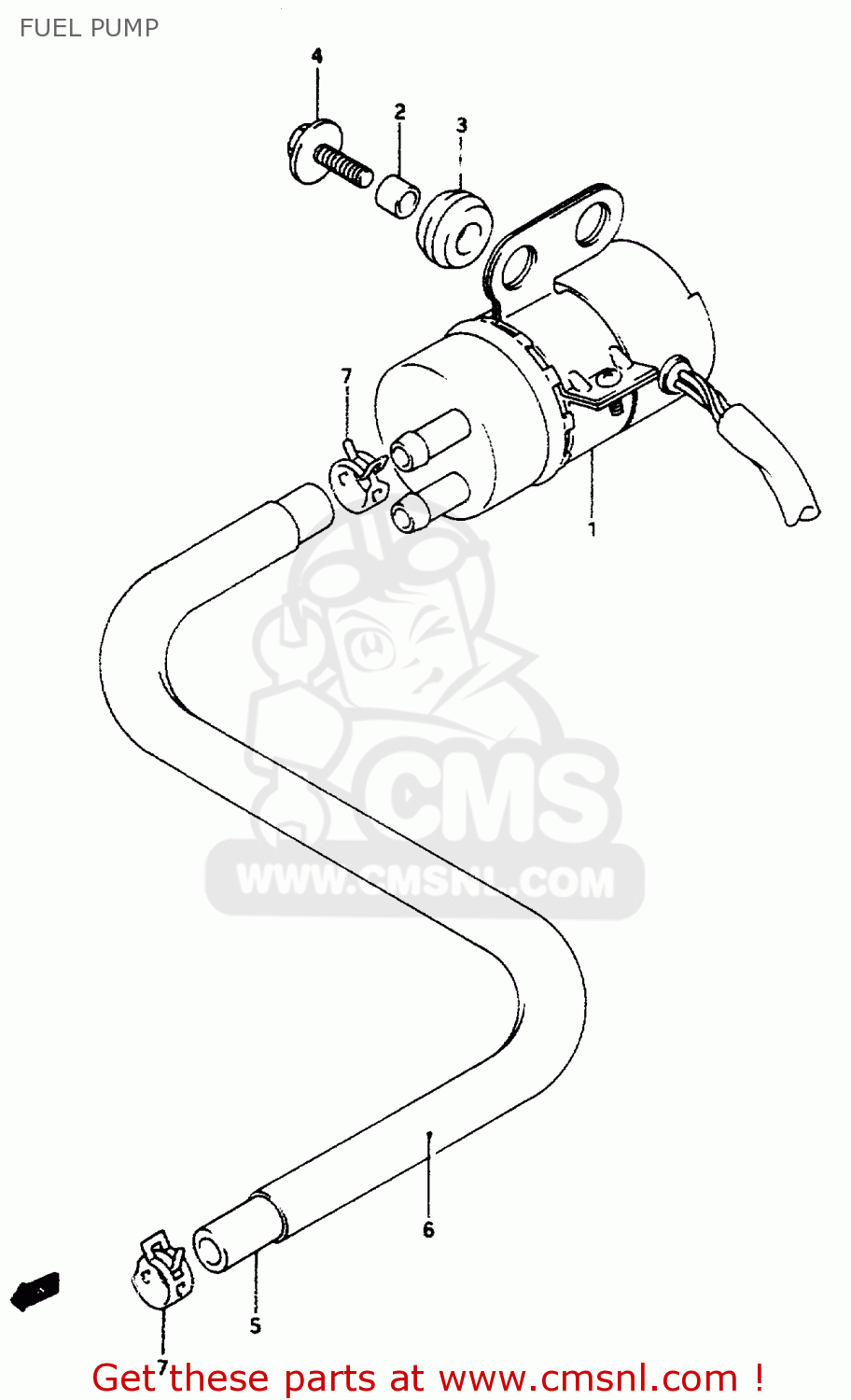

Fuel pump diagram RF600R 1996 (T) (E02 E04 E22 E24 E25 E34 E37)

FUEL PUMP RF600R 1996 (T) (E02 E04 E22 E24 E25 E34 E37)

FUEL PUMP RF600R 1996 (T) (E02 E04 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1-1

1510021E00
ref: 1-1
MODEL P

PUMP ASSY,FUEL

€ 391.50

1-2

1510021E01
ref: 1-2
MODEL R/S/T/V

PUMP ASSY,FUEL

€ 391.50

2-1

0918006011
ref: 2-1
~E.NO.104892

SPACER (6.1X9X9)

€ 2.00

2-2

0918006263
ref: 2-2
E.NO.104893~

SPACER(6.5X9X9)

€ 2.00

3-1

0932009026
ref: 3-1
MODEL P

CUSHION

€ 4.00

3-2

0932009009
ref: 3-2
MODEL R/S/T/V

CUSHION

€ 5.00

4

0911606010
ref: 4

BOLT(6X20)

€ 2.00

5-1

0935470133600
ref: 5-1
MODEL P/R L:600>370

HOSE (7X13X600)

€ 26.00

5-2

0935570125600
ref: 5-2
MODEL S/T/V L:600>38

HOSE(7X12X600)

€ 26.00

6

0935114152600
ref: 6
L:600>330

PROTECTOR(14.5X15.5X600)

€ 9.00

7-1

0940112404
ref: 7-1
MODEL P/R

CLIP

€ 2.50

7-2

0940111407
ref: 7-2
MODEL S/T/V

CLIP

€ 2.50
