FRONT BRAKE HOSE

RF600RU 1993 (P) (E22)

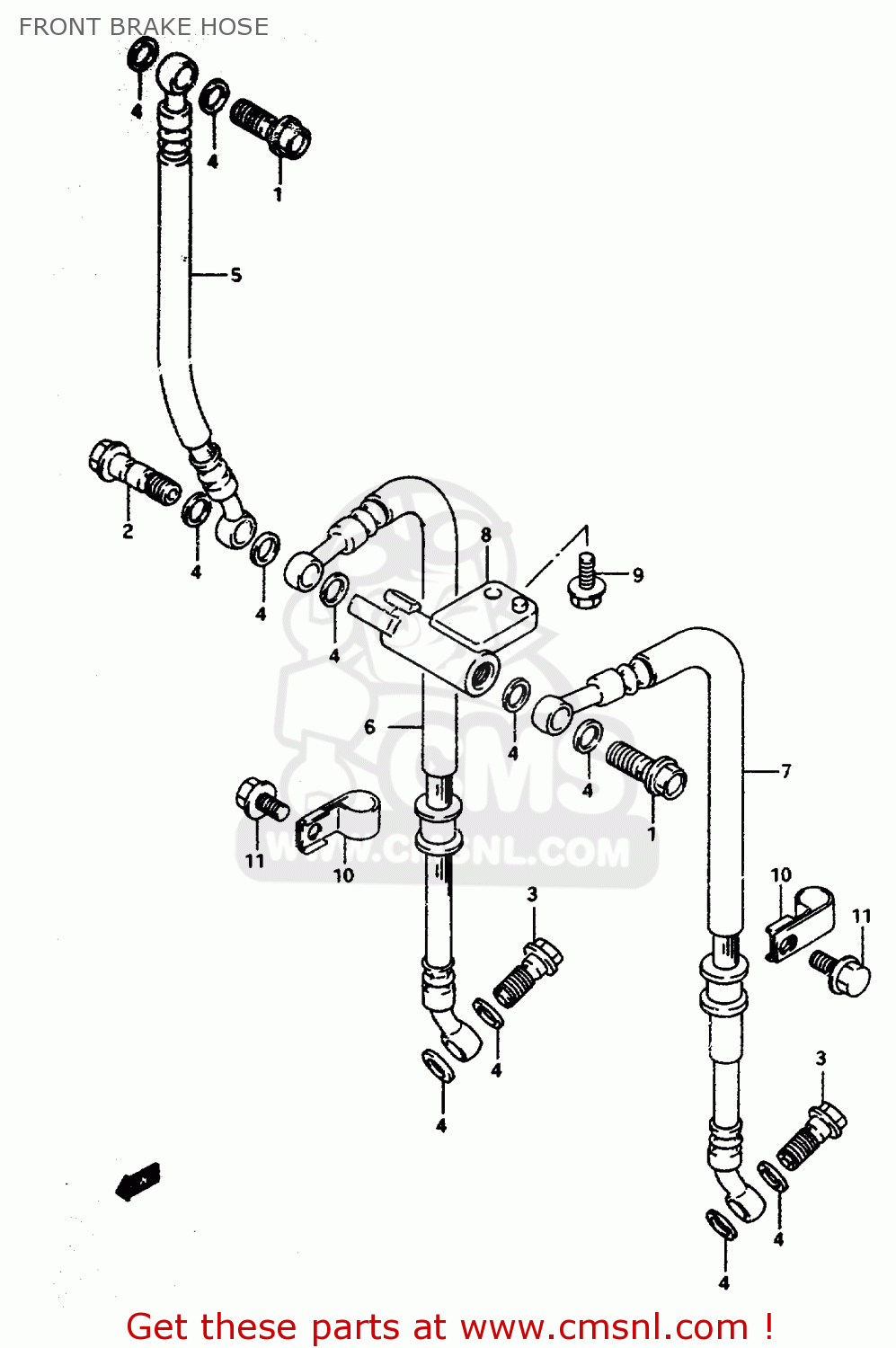

Front brake hose diagram RF600RU 1993 (P) (E22)

FRONT BRAKE HOSE RF600RU 1993 (P) (E22)

FRONT BRAKE HOSE RF600RU 1993 (P) (E22)

prices are in EUR

ref

part #

description

quantity

1-1

0936010039
ref: 1-1
MODEL P/R/S/T

BOLT UNION

€ 6.50

1-2

0936010041
ref: 1-2
MODEL V

BOLT UNION

€ 6.50

2-1

0936010018
ref: 2-1
MODEL P/R/S/T

BOLT UNION

€ 7.00

2-2

0936010043
ref: 2-2
MODEL V

BOLT UNION

€ 6.50

3-1

0936010040
ref: 3-1
MODEL P/R/S/T

BOLT UNION

€ 5.00

3-2

0936010042
ref: 3-2
MODEL V

BOLT UNION

€ 5.00

4

0916110009
ref: 4

WASHER(10X15X1.5)

€ 2.00

5

5948021E00
ref: 5

HOSE,FR BRAKE NO.1

€ 68.00

6

5924021E00
ref: 6

HOSE,FR BRAKE NO.2,R

€ 76.00

7

5944021E00
ref: 7

HOSE COMP,FRONT BRAKE

€ 77.00

8

5949117E00
ref: 8

JOINT,BRAKE HOSE

€ 68.50

9-1

0151706167
ref: 9-1
MODEL P

BOLT 6X16

€ 1.50

9-2

0155006163
ref: 9-2
MODEL R/S/T/V

BOLT

€ 2.50

10

5926845D00
ref: 10

CLAMP,FR BRAKE HOSE NO.2

€ 9.00

11-1

0151706125
ref: 11-1
MODEL P

BOLT 6X12

€ 2.50

11-2

0155006123
ref: 11-2
MODEL R/S/T/V

BOLT

€ 2.50
