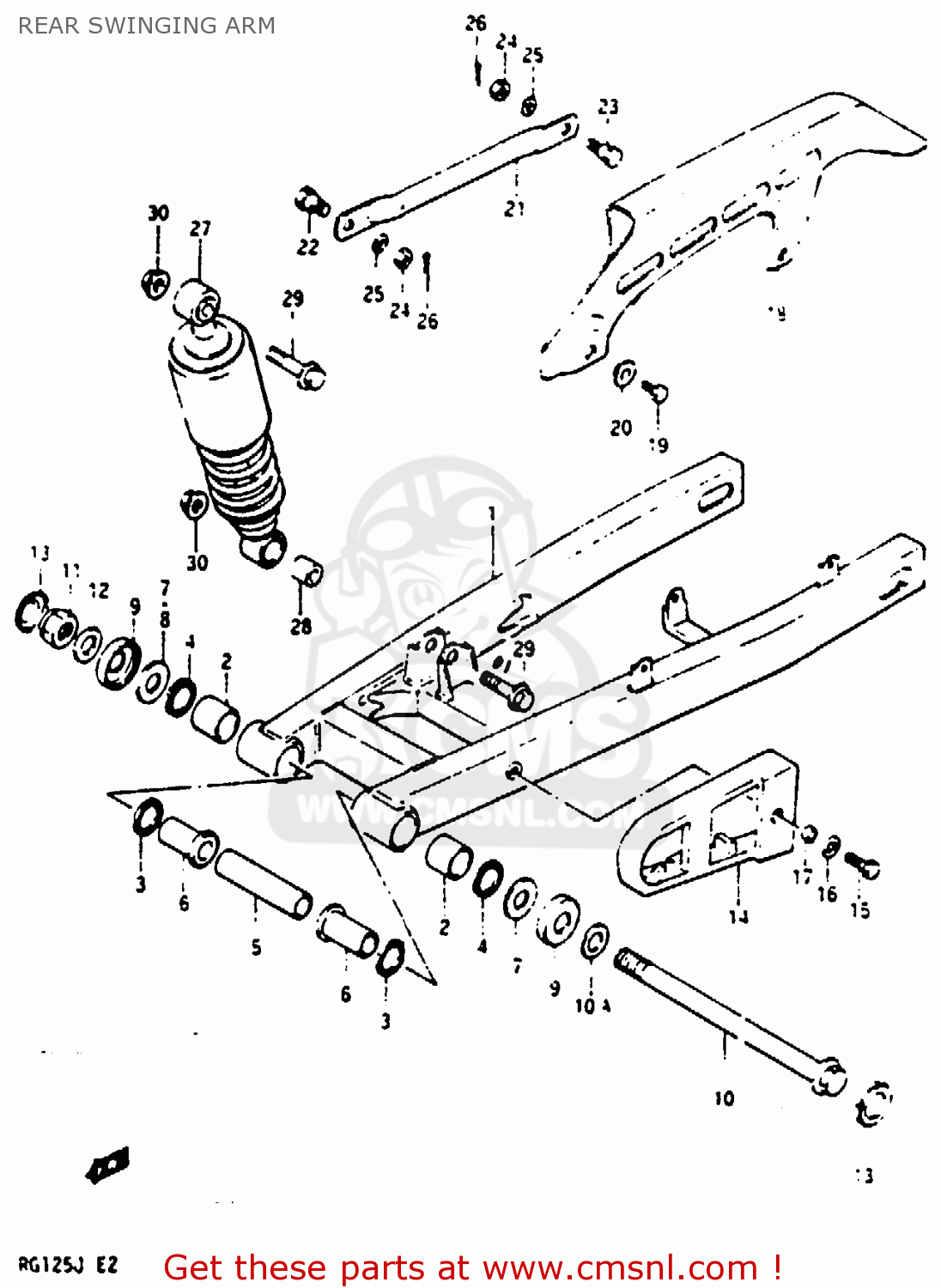

REAR SWINGING ARM

ref

part #

description

quantity

1

6100036A0313L
ref: 1
SILVER

SWINGING ARM ASSY, REAR

€ 221.50

2

6126113700
ref: 2

BUSHING,RR SWGARM PIVOT

€ 8.00

3

0928620001
ref: 3

SEAL,OIL(20X27X5)

€ 2.50

4

0928520005
ref: 4

OIL SEAL

€ 5.00

5

6128236A00
ref: 5

SPACER,RR SWGARM CTR

€ 4.50

6

6125136A00
ref: 6

SPACER,RR SWGARM PIVOT

€ 17.50

7

0821114321
ref: 7

WASHER

€ 4.00

8

0821114322
ref: 8

WASHER

€ 2.50

9

6262444B10
ref: 9

SEAL,RR CUSHION LEVER CTR DUST

€ 19.50

10

6121136A03
ref: 10

SHAFT,RR SWINGINGARM PIVOT

€ 85.00

10A

0916014047
ref: 10A

WASHER

€ 3.00

11

0915914019
ref: 11

NUT

€ 8.50

12

0916014027
ref: 12

WASHER(14.2X24X2.3)

€ 2.50

13

4149914A00019
ref: 13

CAP,CUSHION LEVER

€ 3.00

14

6127336A01
ref: 14

BUFFER, CHAIN TOUCH DIFFENCE

€ 24.00

15

0110706206
ref: 15

BOLT,M6X1X20

€ 2.00

16

0916006019
ref: 16

WASHER(6.5X16X1.2)

€ 1.50

17

0918006142
ref: 17

SPACER

€ 1.50

18

6131136A00291
ref: 18

CASE, CHAIN (BLACK)

€ 30.50

19

0910006092
ref: 19

BOLT 6X8

€ 2.50

20

0916906026
ref: 20

WASHER

€ 2.00

21

6431136A0013L
ref: 21

TORQUELINK,RR

€ 11.50

22

0911108012
ref: 22

BOLT(8X22.5)

€ 3.00

23

0911108013
ref: 23

BOLT(8X26.5)

€ 3.00

24

0914008008
ref: 24

NUT

€ 1.50

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0411120208
ref: 26

PIN 20X20

€ 1.50

27

6210036A11
ref: 27

ABSORBER ASSY, REAR SHOCK

€ 450.50

28

6218736A00
ref: 28

COLLAR

€ 9.50

29

0910310J44
ref: 29

BOLT

€ 0.00

30

0831931107
ref: 30

NUT

€ 3.00
