OIL TANK

RG125C 1987 (H) (E02 E04 E15 E17 E18 E30 E53)

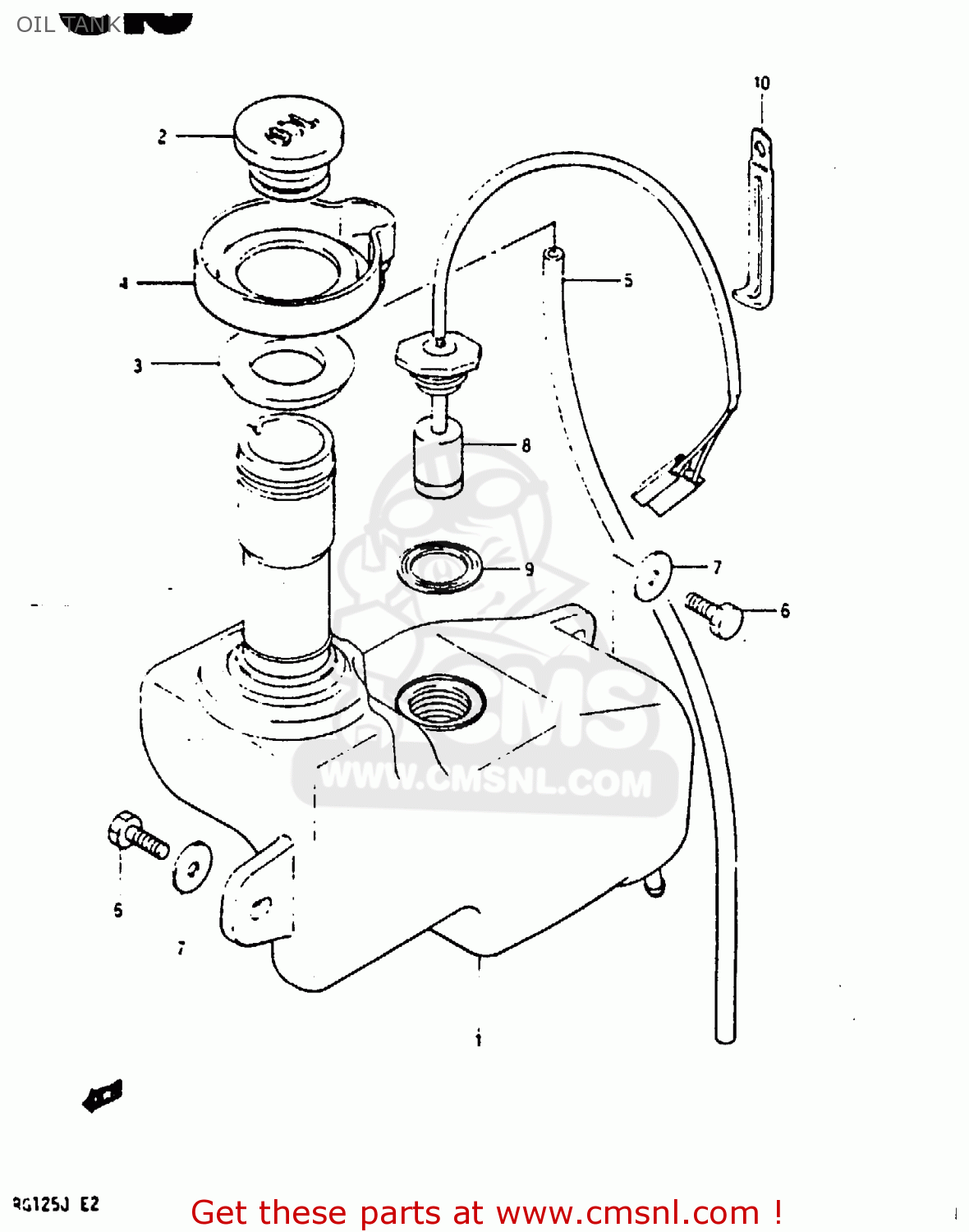

Oil tank diagram RG125C 1987 (H) (E02 E04 E15 E17 E18 E30 E53)

OIL TANK RG125C 1987 (H) (E02 E04 E15 E17 E18 E30 E53)

OIL TANK RG125C 1987 (H) (E02 E04 E15 E17 E18 E30 E53)

prices are in EUR

ref

part #

description

quantity

1

4461136A00
ref: 1

TANK,OIL

€ 33.50

2

4465104701
ref: 2

CAP,OIL TANK

€ 5.00

3

4466104700
ref: 3

CUSHION,OIL TANK

€ 3.00

4

4468204700
ref: 4

TRAY,FUEL & OIL DRAIN

€ 3.00

5

093525082300A
ref: 5
L:1000@r730

HOSE

€ 13.00

6

0110706166
ref: 6

BOLT

€ 2.00

7

0916006006
ref: 7

WASHER

€ 2.00

8

3788036A00
ref: 8

SWITCH ASSY, OIL LEVEL

€ 27.00

9

4464331D00
ref: 9

GASKET

€ 0.00

10

0940406401
ref: 10

CLAMP L:35

€ 2.50
