HEAR COMBINAITON LAMP
RG125U 1988 (J)

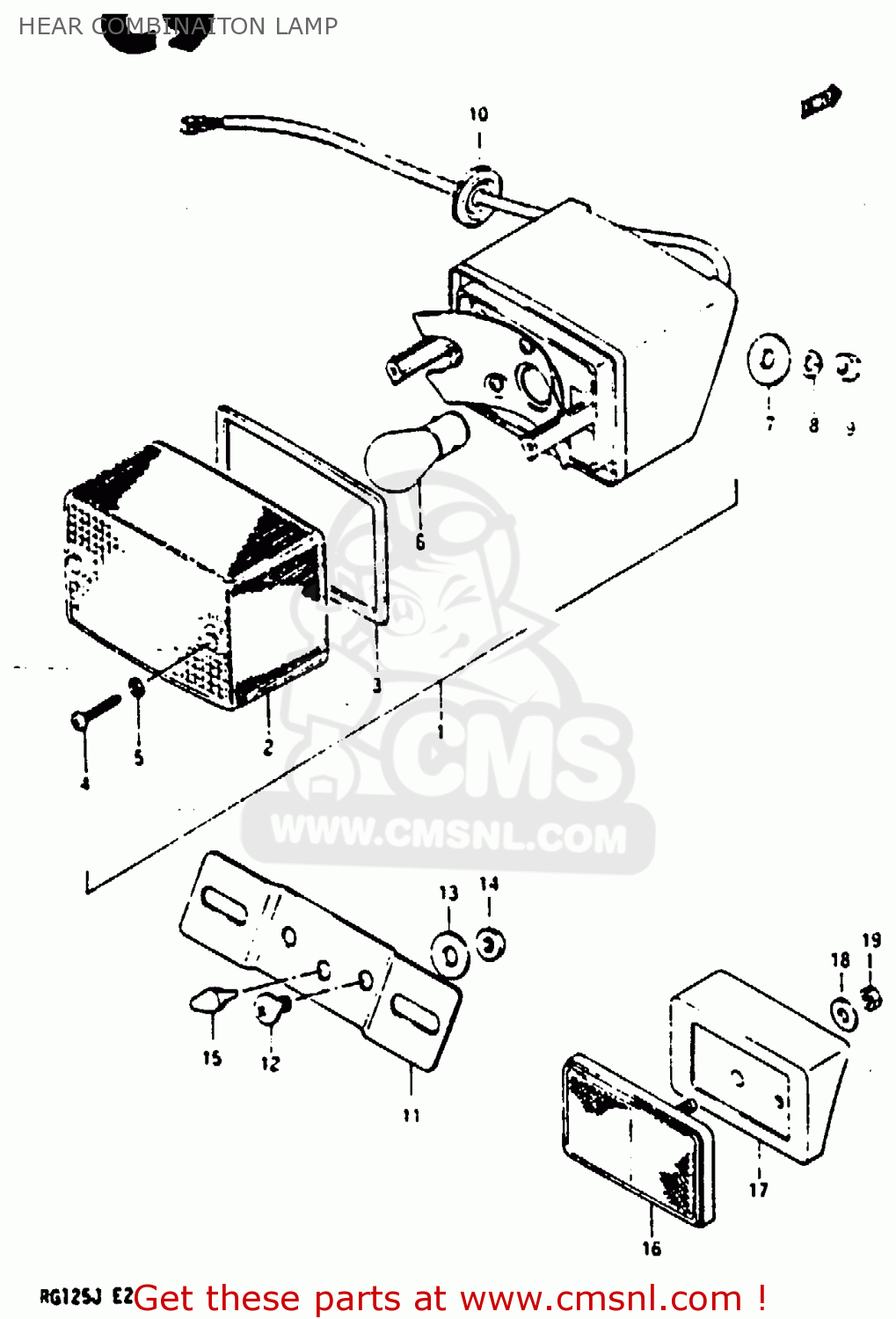

Hear combinaiton lamp diagram RG125U 1988 (J)
HEAR COMBINAITON LAMP RG125U 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571036A70
ref: 1-1
E2, E17
LAMP ASSY,RR COMBINATION
€ 106.00
1-2
3571036A21
ref: 1-2
E4, E15, E18, E21
LAMP ASSY, REAR COMBINATION
€ 106.00
1-3
3571036A00
ref: 1-3
E24, E30
LAMP ASSY, REAR COMBINATION
€ 106.00
2-1
3571236A70
ref: 2-1
E2, E17
LENS
€ 19.00
2-2
3571213600
ref: 2-2
E4, E15, E18, E21, E
LENS,LAMP RR
€ 19.00
3
3571313600
ref: 3
GASKET,RR COMBI LAMP LENS (NAS)
€ 3.50
4
0321104207
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6-1
0947112083
ref: 6-1
BULB(12V21/5W)
€ 6.00
6-2
0947112084
ref: 6-2
E24, E30
BULB(12V23/8W,TOKAI DENSO)
€ 6.00
7
0916006012
ref: 7
WASHER(6,5X22X1.6)
€ 2.00
8
0832121066
ref: 8
WASHER,LOCK
€ 2.00
9
0831012066
ref: 9
NUT
€ 2.00
10
0930807013
ref: 10
GROMMET
€ 3.50
11
3592736510
ref: 11
BRACKET,PLATE LICENSE
€ 8.50
12
0214206126
ref: 12
SCREW
€ 2.00
13
0916006060
ref: 13
WASHER
€ 2.00
14
0831616066
ref: 14
NUT
€ 2.50
15
0932106023
ref: 15
CUSHION
€ 2.00
16-1
3597036A00
ref: 16-1
REFLEX REFIECTOR, REAR
€ 13.00
16-2
3597049330
ref: 16-2
E24, E30
REFLEX REFLECTOR,RR
€ 16.50
17
3597736A00
ref: 17
SPACER
€ 3.50
18
0832221056
ref: 18
WASHER
€ 2.50
19
0831011056
ref: 19
NUT
€ 2.50
