REAR WHEEL (RM100X)
RM100 1980 (T) USA (E03)

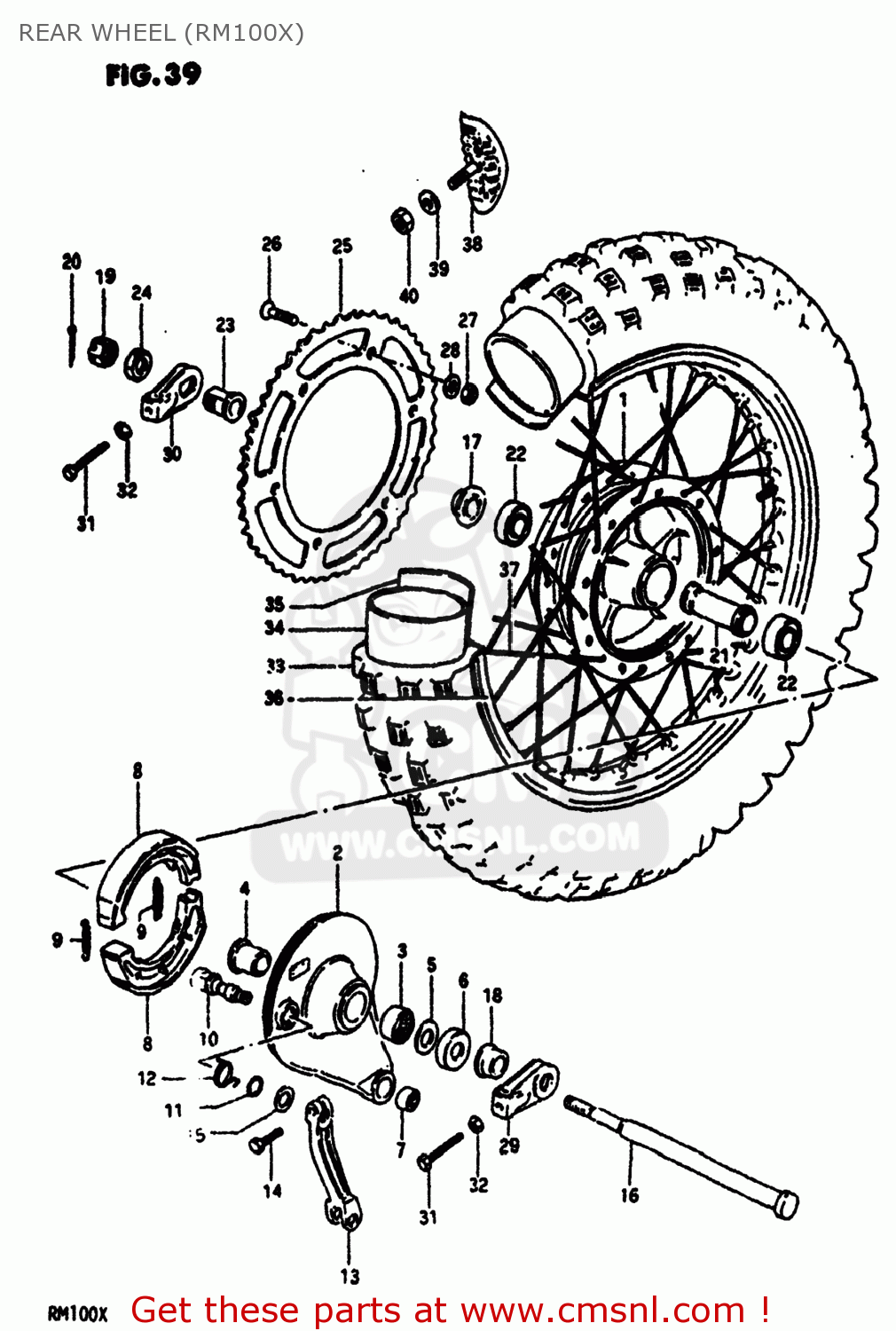

Rear wheel (rm100x) diagram RM100 1980 (T) USA (E03)
REAR WHEEL (RM100X) RM100 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411040202
ref: 1
DRUM,REAR HUB
€ 50.50
2
6420041840
ref: 2
64200-41841
PANEL SET,REAR HUB
€ 80.50
3
0926322025
ref: 3
BEARING(22X29X25)
€ 31.50
4
6421340300
ref: 4
SPACER,REAR HUB PANEL
€ 28.00
5
0916015028
ref: 5
08211-15341
WASHER
€ 2.00
6
6484540300
ref: 6
61262-22A00
COVER, PANEL DUST SEAL
€ 7.50
7
6435240400
ref: 7
64352-40401
SPHERICAL BEARING,TORQUE
€ 69.50
8
6441040200
ref: 8
64400-13810
SHOE,BRAKE
€ 32.00
9
0944307001
ref: 9
09443-07025
SPRING(L:34)
€ 2.50
10
5444101002
ref: 10
CAM,FR BRAKE
€ 19.50
11
0928012001
ref: 11
O RING(D:2.5,ID:11.4)
€ 2.50
12
0944830005
ref: 12
SPRING
€ 19.00
13
6445140200
ref: 13
LEVER,RR BRAKE CAM
€ 601.00
14
0110706258
ref: 14
01500-06257
BOLT
€ 2.00
15
0916012011
ref: 15
WASHER(12.5X20X1)
€ 1.50
16
6471140210
ref: 16
AXLE,REAR
€ 45.50
17
6475040210
ref: 17
SPACER,RR AXLE,L
€ 7.00
18
0918015049
ref: 18
SPACER (15.2X26X34)
€ 6.00
19
0831431128
ref: 19
08314-3112A
NUT 12MM
€ 2.00
20
0411130308
ref: 20
04111-3030A
COTTER PIN
€ 1.50
21
6473040300
ref: 21
64730-40301
SPACER,REAR HUB BEARING
€ 23.50
22
0812362027
ref: 22
BEARING
€ 14.50
23
6479128001
ref: 23
SPACER,CHAIN ADJUSTER,L
€ 12.00
24
0914018005
ref: 24
09140-18501
NUT
€ 3.00
25-1
6451140242
ref: 25-1
SPROCKET,REAR (NT:60)(AL)
€ 0.00
25-2
6451140232
ref: 25-2
SPROCKET,REAR
€ 0.00
25-3
6451140252
ref: 25-3
SPROCKET,REAR
€ 34.00
26
0912008004
ref: 26
SCREW(8X33.5)
€ 3.00
27
0831931088
ref: 27
08319-3108A
NUT
€ 2.50
28
0832211088
ref: 28
08322-01087
WASHER
€ 2.00
29
6141028004
ref: 29
ADJUSTER,CHAIN,R
€ 8.00
30
6142028003
ref: 30
ADJUSTER,CHAIN,L
€ 11.00
31
0910008146
ref: 31
BOLT(8X40)
€ 2.50
32
0831012088
ref: 32
08310-00087
NUT
€ 2.00
33
6510040230
ref: 33
65100-14130
TIRE
€ 0.00
34
6520041330
ref: 34
65200-42AA0
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
35
6526133030
ref: 35
PROTECTOR,INNER TUBE
€ 5.50
36
6531140200
ref: 36
RIM,REAR WHEEL
€ 119.00
37
6532040210
ref: 37
SPOKE SET,REAR WHEEL
€ 38.00
38
6527030001
ref: 38
65270-43D00
STOPPER,BEAD
€ 30.50
39
0832211088
ref: 39
08322-01087
WASHER
€ 2.00
40
0831012088
ref: 40
08310-00087
NUT
€ 2.00
