REAR SWINGING ARM (RM100T
RM100 1981 (X) USA (E03)

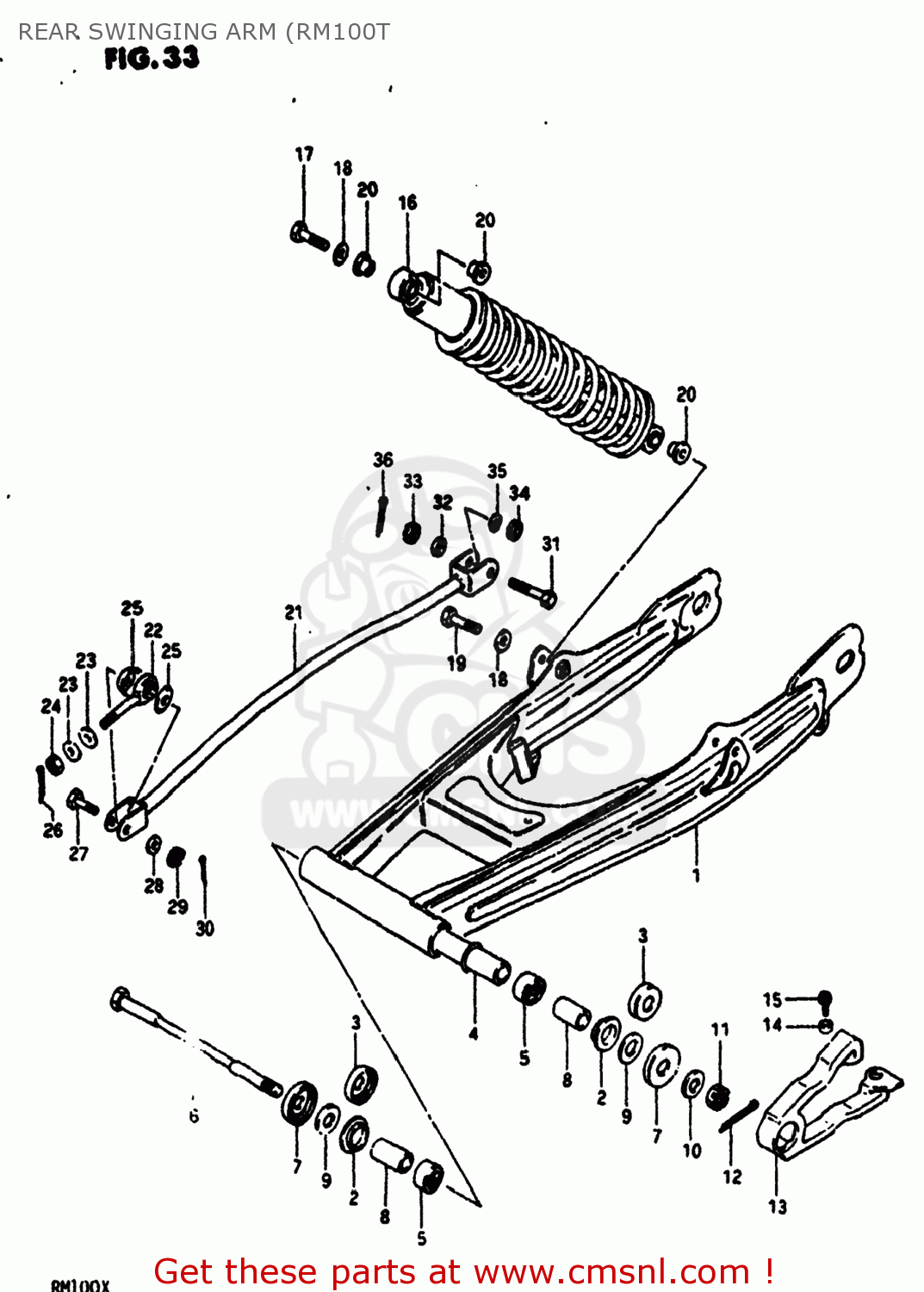

Rear swinging arm (rm100t diagram RM100 1981 (X) USA (E03)
REAR SWINGING ARM (RM100T RM100 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
611004086008C
ref: 1-1
61100-40865-08C
SWING ARM ASSEMBLY,REAR
€ 82.50
1-2
611014084008C
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 0.00
2
6126140201
ref: 2
BUSH,RR SWINGINGARM PIVOT
€ 21.00
3
0928517001
ref: 3
SEAL,OIL(17X24X3)
€ 3.50
4
6128040201
ref: 4
SPACER
€ 14.50
5
0926317011
ref: 5
09263-17027
ROLLER BEARING (17X24X2
€ 13.50
6
6121140201
ref: 6
SHAFT,RR SWINGINGARM PIVOT
€ 20.00
7-1
6126240200
ref: 7-1
61262-03B00
COVER,REAR SWING ARM DUST
€ 5.00
7-2
6126241500
ref: 7-2
COVER,RR SWGARM DUST SEAL
€ 7.50
8
6125140200
ref: 8
SPACER,RR SWGARM PIVOT
€ 9.50
9-1
0821112282
ref: 9-1
WASHER
€ 2.00
9-2
0821112281
ref: 9-2
WASHER
€ 2.00
10
0832211128
ref: 10
08322-01127
WASHER
€ 2.00
11
0831441128
ref: 11
08314-4012A
NUT, REAR AXLE
€ 2.50
12
0411120308
ref: 12
04111-2030A
COTTER PIN
€ 1.00
13-1
6127340222
ref: 13-1
61273-40224
BUFFER,CHAIN TOUCH DEFLECTOR
€ 28.00
13-2
6127340224
ref: 13-2
BUFFER,CHAIN TOUCH DEFLECTOR
€ 28.00
14
0918005015
ref: 14
09180-05046
SPACER (5.5X8X4)
€ 3.00
15
6127540200
ref: 15
SCREW,CHAIN TOUCH DEFEND
€ 1.50
16
6210040250
ref: 16
ABSORBER ASSEMBLY,REAR SHOCK
€ 0.00
17-1
0910008150
ref: 17-1
BOLT
€ 2.00
17-2
0910008174
ref: 17-2
BOLT
€ 0.00
18
0832211088
ref: 18
08322-01087
WASHER
€ 2.00
19-1
0910008165
ref: 19-1
09103-08178
BOLT
€ 5.00
19-2
0910008173
ref: 19-2
09103-08178
BOLT 8X38
€ 5.00
20
6231640200
ref: 20
SPACER,RR SHK ABS INNER
€ 7.50
21
6431040210
ref: 21
64310-40210-13L
TORQUE LINK,REAR
€ 49.00
22
6433740401
ref: 22
BEARING
€ 4.50
23
0916408011
ref: 23
WASHER
€ 3.50
24
0831012088
ref: 24
08310-00087
NUT
€ 2.00
25-1
6433840400
ref: 25-1
DUST SEAL,TORQUE LINK FR BRG
€ 6.50
25-2
6433940410
ref: 25-2
6433940410
26
0411120158
ref: 26
04111-2015A
PIN
€ 1.50
27
0910108003
ref: 27
BOLT 8X28
€ 2.00
28
0832211088
ref: 28
08322-01087
WASHER
€ 2.00
29
0831441088
ref: 29
08314-4008B
NUT 8MM
€ 2.50
30
0411120208
ref: 30
04111-2020A
PIN 20X20
€ 1.50
31
0910108010
ref: 31
BOLT 8X35
€ 3.50
32
0832211088
ref: 32
08322-01087
WASHER
€ 2.00
33
0831441088
ref: 33
08314-4008B
NUT 8MM
€ 2.50
34
6433940410
ref: 34
6433940410
35
0916008050
ref: 35
09160-08144
WASHER (8.5X16X2.6)
€ 2.00
36
0411120208
ref: 36
04111-2020A
PIN 20X20
€ 1.50
