MUFFLER
RM125 1979 1980 (N T) USA (E03)

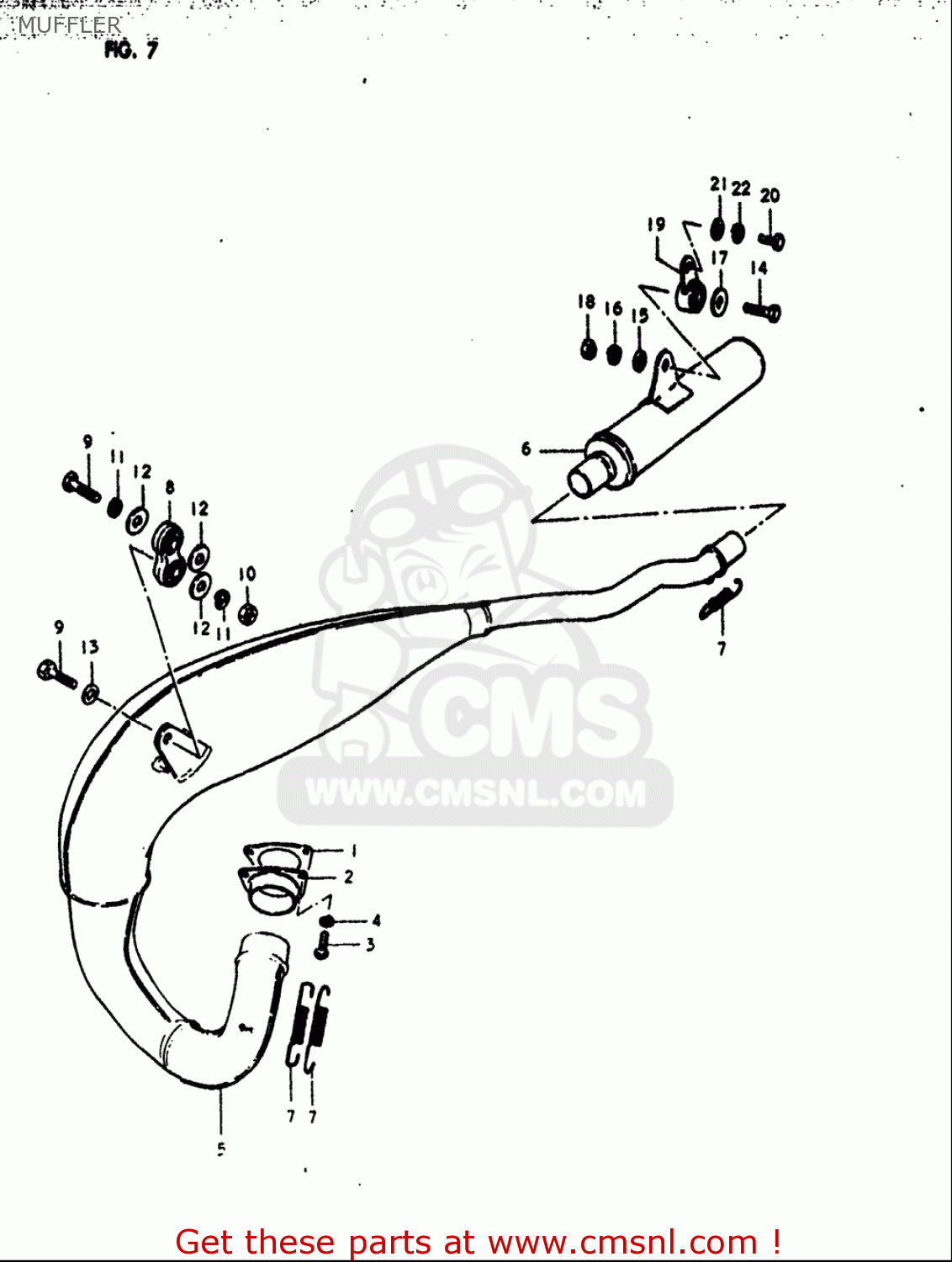

Muffler diagram RM125 1979 1980 (N T) USA (E03)
MUFFLER RM125 1979 1980 (N T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418140200H17
ref: 1
GASKET,EXHAUST FLANGE (NAS)
€ 6.00
3
0211206167
ref: 3
SCREW
€ 2.50
4
0832101067
ref: 4
WASHER,LOCK
€ 2.50
6
1433040201
ref: 6
BODY,MUFFLER,SECOND
€ 228.50
7
0944311002
ref: 7
SPRING
€ 4.50
8
1477040000
ref: 8
DAMPER,MUFFLER
€ 139.00
9
0150008353
ref: 9
BOLT
€ 3.50
10
0831000087
ref: 10
NUT
€ 2.00
11
0832101087
ref: 11
WASHER,LOCK
€ 2.00
12
0916008130
ref: 12
WASHER(8.5X24X1.6)
€ 2.00
13
0832201087
ref: 13
WASHER
€ 2.00
14
0150008307
ref: 14
BOLT
€ 2.50
15
0832201087
ref: 15
WASHER
€ 2.00
16
0832101087
ref: 16
WASHER,LOCK
€ 2.00
17
0916008135
ref: 17
WASHER(8.5X28X1.6)
€ 2.00
18
0831000087
ref: 18
NUT
€ 2.00
19
1470040810
ref: 19
DAMPER,MUFFLER SUPPORT 2ND
€ 28.00
20
0150008163
ref: 20
BOLT
€ 2.00
21
0832201087
ref: 21
WASHER
€ 2.00
22
0832101087
ref: 22
WASHER,LOCK
€ 2.00
