CUSHION LEVER (MODEL K)

RM125 1989 (K) USA (E03)

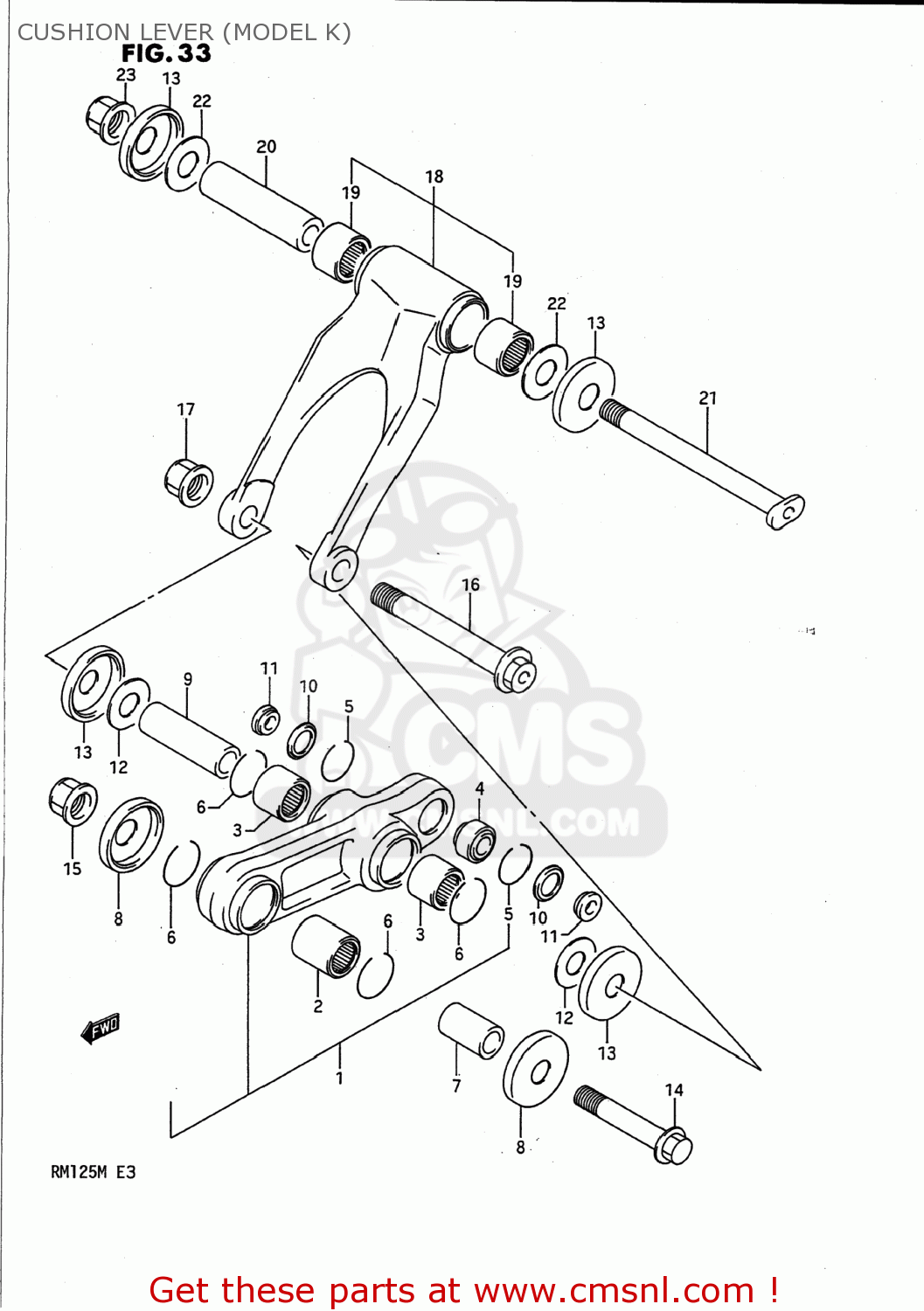

Cushion lever (model k) diagram RM125 1989 (K) USA (E03)

CUSHION LEVER (MODEL K) RM125 1989 (K) USA (E03)
CUSHION LEVER (MODEL K) RM125 1989 (K) USA (E03)
CUSHION LEVER (MODEL K) RM125 1989 (K) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6260027840
ref: 1
LEVER SET,REAR CUSHION
6260027840
€ 259.50
2
0926320053
ref: 2
BEARING(20X27X25)
0926320053
€ 15.50
3
0926320063
ref: 3
BEARING(20X27X20)
0926320063
€ 34.00
4
6217500B00
ref: 4
BEARING,RR CUSHION LEVER
6217500B00
€ 66.00
5
6227714200
ref: 5
62657-34A01
RING
6227714200
€ 1.50
6
0938126002
ref: 6
CIRCLIP
0938126002
€ 2.50
7
6231700B20
ref: 7
62317-27C10
SPACER,REAR CUSHION LEVER
€ 9.00
8
6216228C00
ref: 8
62162-28E00
SEAL,REAR CUSHION LEVER
€ 6.50
9
6264600B20
ref: 9
62626-05D00
SPACER,REAR CUSHION LEVER
€ 18.50
10-1
6222627C00
ref: 10-1
SEAL,RR CUSHION LEVER RR DUST
€ 5.50
10-2
0928517001
ref: 10-2
SEAL,OIL(17X24X3)
0928517001
€ 3.50
11-1
6268427C00
ref: 11-1
COLLAR
€ 9.00
11-1
6268427C00
ref: 11-1
COLLAR
€ 9.00
11-2
6268427C10
ref: 11-2
COLLAR
6268427C10
€ 9.00
12
0821114322
ref: 12
WASHER
0821114322
€ 2.50
13
6268327C00
ref: 13
SEAL,RR CUSHION LEVER
6268327C00
€ 7.00
14
6265800B20
ref: 14
BOLT,RR CUSHION LEVER FR
6265800B20
€ 8.50
15
0831931128
ref: 15
08319-3112A
NUT 12MM
0831931128
€ 4.00
16
6262127C00
ref: 16
62621-01B00
SHAFT,REAR CUSHION LEVER
6262127C00
€ 12.50
17
0831931148
ref: 17
08319-3114A
NUT
0831931148
€ 9.00
18
6260027850
ref: 18
62600-05870
LEVER SET,REAR CUSHION
6260027850
€ 319.50
19
0926320063
ref: 19
BEARING(20X27X20)
0926320063
€ 34.00
20
6264627C00
ref: 20
SPACER,RR CUSHION ROD
6264627C00
€ 16.00
21
6262227C00
ref: 21
BOLT,REAR CUSHION ROD
€ 28.50
22
0821114322
ref: 22
WASHER
0821114322
€ 2.50
23
0831931148
ref: 23
08319-3114A
NUT
0831931148
€ 9.00
23
0831931148
ref: 23
08319-3114A
NUT
0831931148
€ 9.00
23
0831931148
ref: 23
08319-3114A
NUT
0831931148
€ 9.00
