MAGNETO

RM125 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

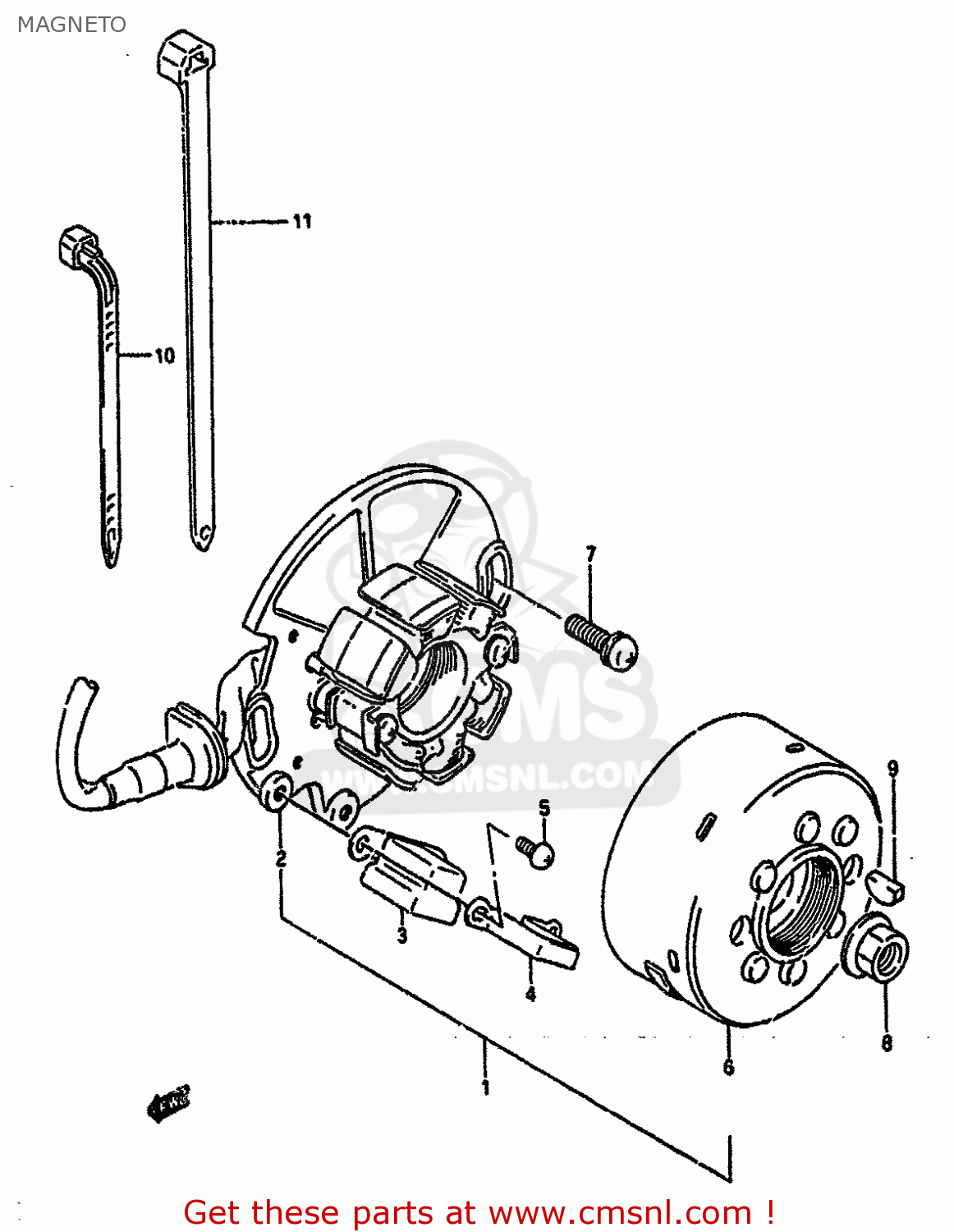

Magneto diagram RM125 1990 (L) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1-1

3210027C00
ref: 1-1
MODEL K

MAGNETO ASSEMBLY

€ 661.50

1-2

3210027C10
ref: 1-2
MODEL L/M

MAGNETO ASSEMBLY

€ 446.00

2-1

3210127C00
ref: 2-1
MODEL K, 32101-27C01

STATOR ASSEMBLY

€ 408.00

2-2

3210127C10
ref: 2-2
MODEL L/M

STATOR ASSEMBLY

€ 408.00

3216027C00
ref: 3
FOR 32101-27C01/3210

COIL ASSEMBLY,PICK-UP

€ 51.50

3215727C00
ref: 4
FOR 32101-27C01/3210

HOLDER,PICK UP COIL

€ 7.50

0211275166
ref: 5
FOR 32101-27C01/3210

SCREW

€ 2.50

6-1

3210227C00
ref: 6-1
MODEL K

ROTOR

€ 309.50

6-2

3210227C10
ref: 6-2
MODEL L/M

ROTOR ASSEMBLY

€ 258.00

0211216208
ref: 7

SCREW

€ 2.00

0831616108
ref: 8

NUT

€ 2.00

0834131049
ref: 9

KEY 4MM

€ 3.50

10-1

0940714403
ref: 10-1
MODEL K/L

CLAMP(L:125)

€ 2.50

10-2

0940714403
ref: 10-2
MODEL M

CLAMP(L:125)

€ 2.50

10-3

0940725401
ref: 10-3
MODEL K/L

CLAMP(L:235)

€ 4.00

10-4

0940718402
ref: 10-4
MODEL M

CLAMP(L:165)

€ 2.50

0940722404
ref: 11
MODEL M

CLAMP

€ 2.50

MAGNETO

all assemblies
