KICK STARTER

RM125 1993 (P) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

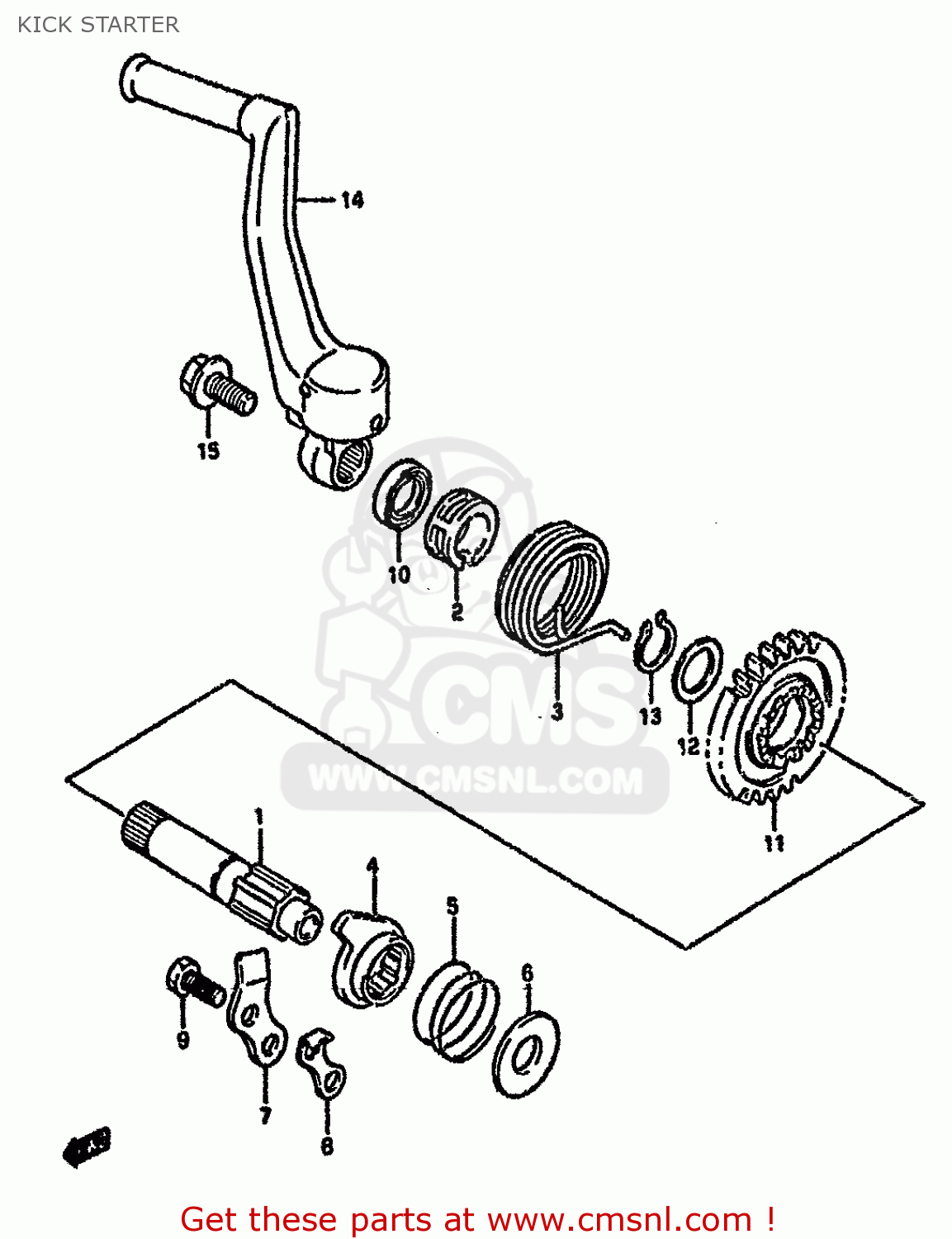

Kick starter diagram RM125 1993 (P) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

2621127C00
ref: 1

SHAFT,KICK STARTER

€ 113.50

2622127C00
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 3.50

0944845013
ref: 3

SPRING

€ 11.00

2623102B00
ref: 4

STARTER,KICK

€ 15.50

0944031002
ref: 5

SPRING

€ 2.00

0821112301
ref: 6

WASHER

€ 2.00

2623240200
ref: 7

GUIDE,KICK STARTER

€ 3.00

2623340200
ref: 8

STOPPER,KICK STARTER

€ 2.50

9-1

0110706167
ref: 9-1
MODEL N/P

BOLT

€ 3.00

9-2

0150006123
ref: 9-2
MODEL R/S

BOLT

€ 2.00

10-1

0928516003
ref: 10-1
MODEL N/P/R

SEAL,OIL(16X24X5)

€ 3.00

10-2

0928316004
ref: 10-2
MODEL S

SEAL,OIL(15.8X24X5)

€ 6.00

2624143D00
ref: 11

GEAR,KICK STARTER DRIVE

€ 85.00

0822116245
ref: 12

WASHER

€ 3.50

0833131166
ref: 13

CIRCLIP 16MM

€ 2.00

14-1

2630027C31
ref: 14-1
MODEL N

LEVER ASSEMBLY,KICK STARTER

€ 286.00

14-2

2630027C33
ref: 14-2
MODEL P/R

LEVER ASSEMBLY,KICK STARTER

€ 286.00

14-3

2630027C34
ref: 14-3
MODEL S

LEVER ASSEMBLY,KICK STARTER

€ 286.00

0910308253
ref: 15

BOLT(8X14)

€ 4.00
