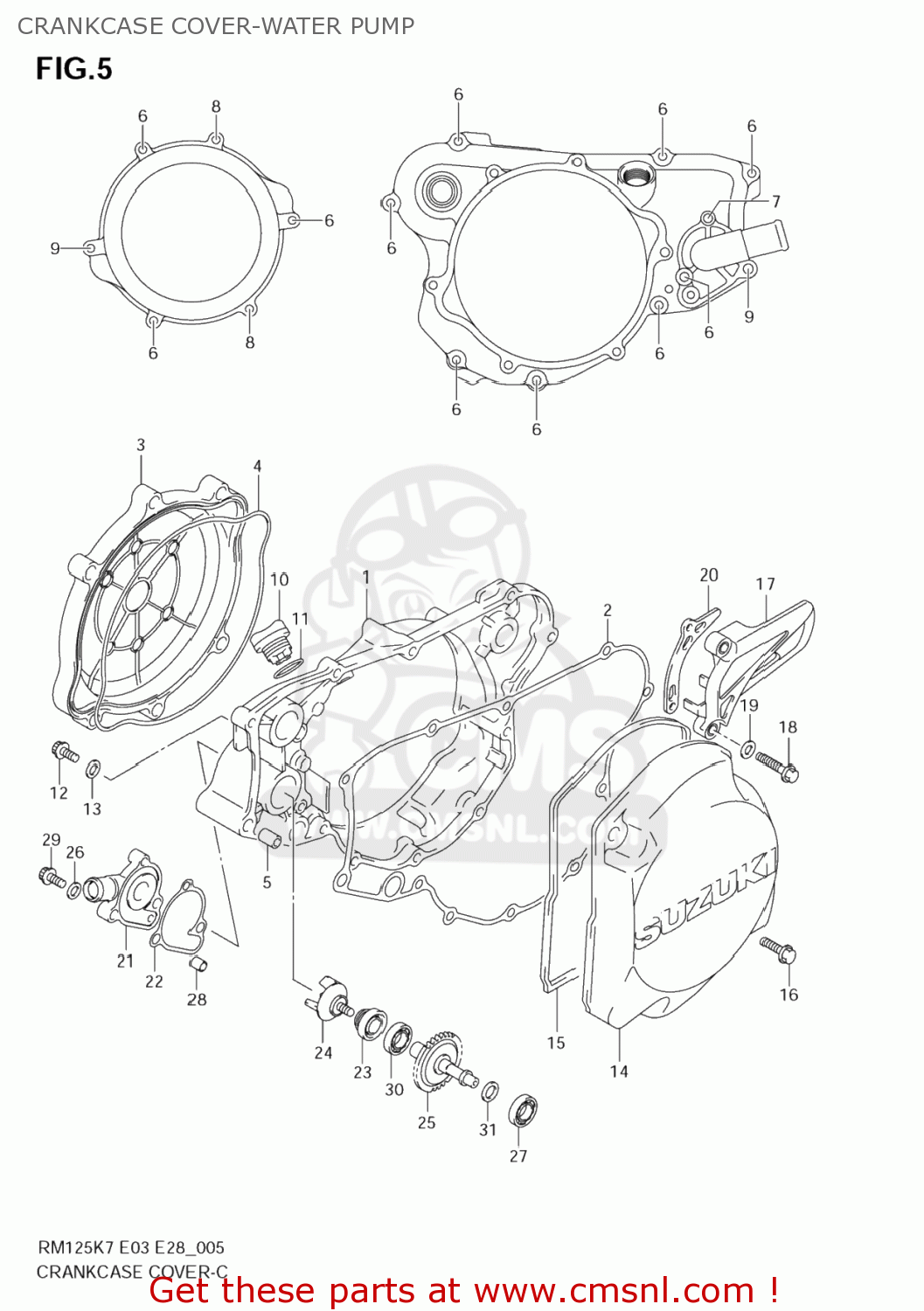

CRANKCASE COVER-WATER PUMP

ref

part #

description

quantity

1

1134136F00
ref: 1

COVER,CLUTCH

€ 137.50

2

1148236F00
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 11.50

3

1137136F01
ref: 3

COVER,CLUTCH OUTER

€ 121.00

4

1148436E10
ref: 4

O RING,CLUTCH COVER OUTER

€ 16.00

5

0421109109
ref: 5

PIN

€ 2.00

6

0910306250
ref: 6

BOLT(6X25)

€ 2.50

7

0910306251
ref: 7

BOLT(6X30)

€ 2.50

8

0910306245
ref: 8

BOLT(6X65)

€ 3.00

9

0910306254
ref: 9

BOLT(6X70)

€ 4.50

10

1197125D00
ref: 10

PLUG,ENGINE OIL FILLER

€ 5.50

11

0928017003
ref: 11

O RING(D:3.1,ID:16.8)

€ 2.00

12

071200610B
ref: 12

BOLT

€ 2.00

13

0916806004
ref: 13

GASKET(6.2X11X1).2 (NAS)

€ 1.50

14

1135136F00
ref: 14

COVER,MAGNETO

€ 114.00

15

1148336E11
ref: 15

GASKET,MAGNETO COVER

€ 6.00

16

0910306235
ref: 16
01547-06207

BOLT,6X20

€ 2.50

17

1136036E00
ref: 17

COVER,ENGINE SPROCKET

€ 27.00

18

0910306251
ref: 18

BOLT(6X30)

€ 2.50

19

083220106B
ref: 19

WASHER

€ 2.00

20

2764137E00
ref: 20

PLATE,FR CHAIN GUIDE

€ 7.00

21

1741136F00
ref: 21

CASE,WATER PUMP

€ 62.50

22

1743136F00
ref: 22

GASKET,WATER PUMP CASE (NAS)

€ 6.00

23

1746137F00
ref: 23

SEAL,WATER PUMP OIL

€ 5.00

24

1749136F00
ref: 24

IMPELLER,WATER PUMP

€ 18.50

25

1751036F10
ref: 25

SHAFT,WATER PUMP

€ 56.00

26

0916806004
ref: 26

GASKET(6.2X11X1).2 (NAS)

€ 1.50

27

0926208005
ref: 27

BEARING(8X22X7)

€ 12.50

28

0421109109
ref: 28

PIN

€ 2.00

29

071200610B
ref: 29

BOLT

€ 2.00

30

0811369010
ref: 30

BEARING

€ 19.00

31

0821106121
ref: 31

WASHER

€ 2.00
