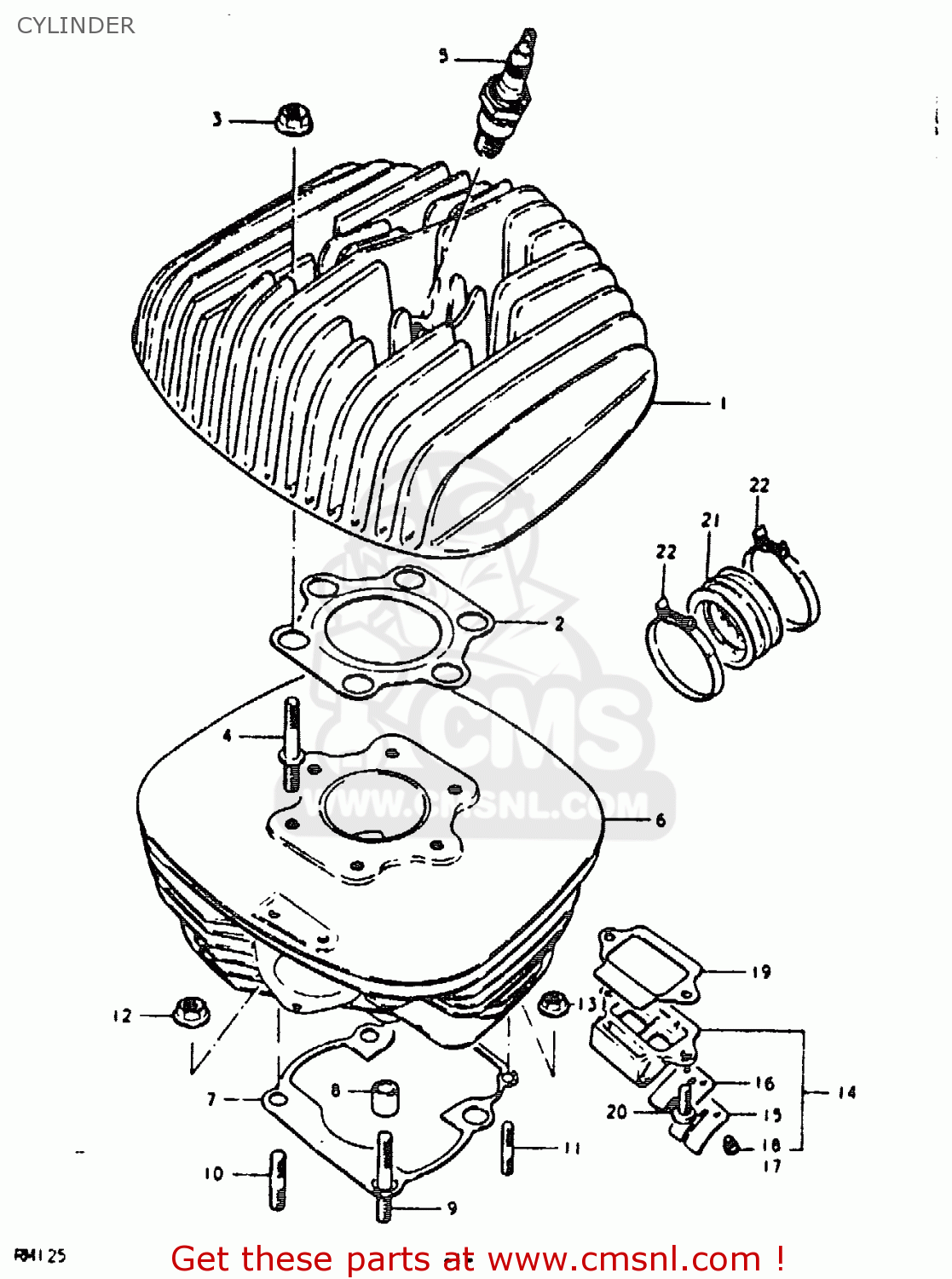

CYLINDER

ref

part #

description

quantity

1

1111140202
ref: 1

HEAD,CYLINDER

€ 0.00

2-1

1114140201
ref: 2-1

GASKET,CYLINDER HEAD (NAS)

€ 9.00

2-2

1114140710
ref: 2-2
OPT

GASKET,CYLINDER HEAD (NAS)

€ 8.50

3

0831616088
ref: 3

NUT

€ 2.50

4

0910808018
ref: 4

BOLT,STUD

€ 4.00

5-1

0948200097
ref: 5-1

SPARK PLUG

€ 19.50

5-3

0948200099
ref: 5-3

SPARK PLUG

€ 3.00

6-1

1121040202
ref: 6-1

CYLINDER

€ 371.50

7

1124140200
ref: 7

GASKET,CYLINDER (MCA)

€ 7.50

8

0920613001
ref: 8

PIN

€ 2.50

9

0142108408
ref: 9

STUD 8X40

€ 2.50

10

0142108258
ref: 10

STUD 8X25

€ 2.50

11

0142106208
ref: 11

STUD 6X20

€ 2.50

12

0831616088
ref: 12

NUT

€ 2.50

13

0831616068
ref: 13

NUT

€ 2.50

14

1315040200
ref: 14

VALVE ASSY,REED

€ 110.50

15

1315240200
ref: 15

STOPPER,REED VALVE

€ 110.50

16

1315340200
ref: 16

VALVE,REED

€ 10.00

17

0211203088
ref: 17

SCREW

€ 1.50

18

0832121038
ref: 18

LOCK WASHER

€ 1.50

19

1315640200
ref: 19

GASKET,REED VALVE (MCA)

€ 7.50

20

0211206168
ref: 20

SCREW

€ 2.50

21-1

1311140200
ref: 21-1

PIPE,INTAKE

€ 8.50

22-1

0940248306
ref: 22-1

CLAMP

€ 4.50
