REAR WHEEL (RM250B
RM250 1977 (B) USA (E03)

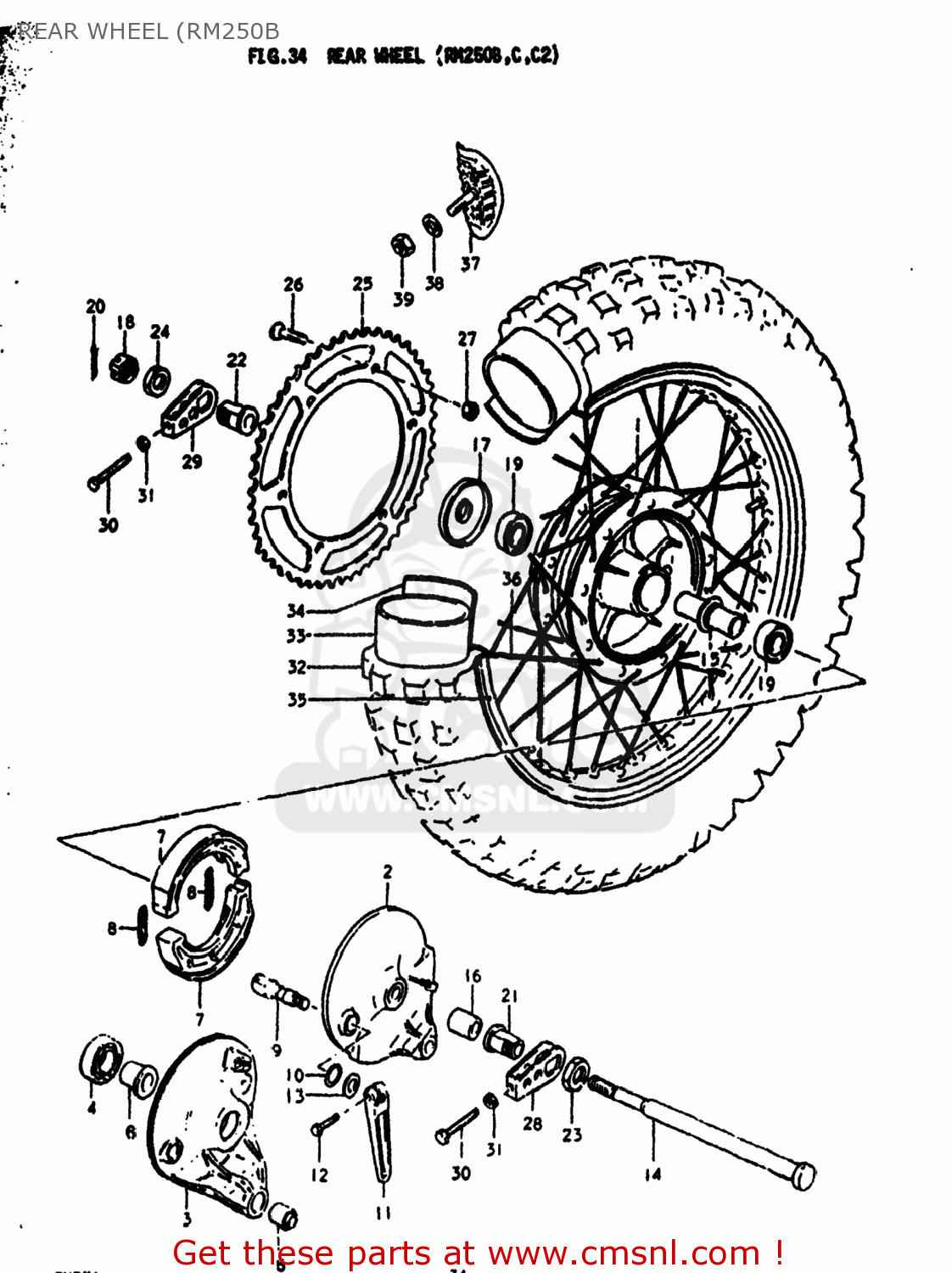

Rear wheel (rm250b diagram RM250 1977 (B) USA (E03)
REAR WHEEL (RM250B RM250 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411041602
ref: 1-1
HUB COMP,REAR
€ 166.50
1-2
6410041820
ref: 1-2
HUB REAR
€ 256.00
1-2
6410041820
ref: 1-2
HUB REAR
€ 256.00
2-1
6421041103
ref: 2-1
PANEL,REAR HUB
€ 82.00
2-2
6421041701
ref: 2-2
PANEL,REAR HUB
€ 116.00
3
6421041110
ref: 3
64200-41820
PANEL,REAR HUB
€ 77.50
4
0812360050
ref: 4
08123-60057
BEARING,RR SPROCKET DRUM
€ 16.50
5
0931910008
ref: 5
BUSH
€ 8.00
6
6421341110
ref: 6
SPACER,REAR HUB PANEL
€ 6.00
7
5441008002
ref: 7
64400-02830
SHOE,BRAKE
€ 35.00
8
5542041100
ref: 8
SPRING
€ 5.50
9
5444008001
ref: 9
54440-08004
CAM,FRONT BRAKE
€ 19.00
10
0928013001
ref: 10
O RING(D:3.2,ID:12.9)
€ 4.00
11
5445141100
ref: 11
LEVER,FRONT BRAKE CAM
€ 43.50
12
0110706258
ref: 12
01500-06257
BOLT
€ 2.00
13
0916015001
ref: 13
09160-15048
WASHER (15X24X1.6)
€ 2.50
14
6471141100
ref: 14
AXLE,REAR
€ 29.50
15
6473041101
ref: 15
SPACER,REAR HUB BEARING
€ 11.50
16-1
0918017044
ref: 16-1
SPACER
€ 3.50
16-2
6474141110
ref: 16-2
SPACER,REAR AXLE,RIGHT
€ 4.50
17
6475041102
ref: 17
SPACER,REAR AXLE
€ 4.50
18-1
0831431148
ref: 18-1
08314-3114A
NUT
€ 2.50
18-2
0914114004
ref: 18-2
NUT
€ 5.00
19
0812362034
ref: 19
08133-62037
BEARING
€ 24.50
20
0411130408
ref: 20
04111-3040A
PIN 30X40
€ 1.50
21-1
6478141100
ref: 21-1
SPACER,CHAIN ADJUSTER
€ 7.00
21-2
6478141710
ref: 21-2
SPACER,CHAIN ADJUSTER
€ 13.00
22-1
6479141100
ref: 22-1
SPACER,CHAIN ADJUSTER
€ 14.50
22-2
6479141710
ref: 22-2
SPACER,CHAIN ADJUSTER
€ 15.00
23
0914024007
ref: 23
NUT
€ 4.50
24
0914022006
ref: 24
NUT
€ 6.00
25
6451141130
ref: 25
64511-41131
SPROCKET,REAR
€ 79.50
26
0912008003
ref: 26
09120-08004
SCREW
€ 3.00
27
0915908021
ref: 27
NUT
€ 1.50
28-1
6142041100
ref: 28-1
ADJUSTER,CHAIN
€ 8.00
28-2
6142041710
ref: 28-2
ADJUSTER,CHAIN
€ 8.50
29-1
6141041100
ref: 29-1
ADJUSTER,CHAIN
€ 10.00
29-2
6141041710
ref: 29-2
ADJUSTER,CHAIN
€ 9.50
30
0910408006
ref: 30
09104-08034
BOLT
€ 3.00
31
0831012088
ref: 31
08310-00087
NUT
€ 2.00
32-1
6510041610
ref: 32-1
65100-14230
TIRE
€ 0.00
32-2
6510041611
ref: 32-2
65100-14230
TIRE
€ 0.00
33
6520041110
ref: 33
65200-16510
TUBE ASSEMBLY,WHEEL,INNER
€ 16.00
34
6526116510
ref: 34
65261-33030
PROTECTOR,WHEEL,INNER
€ 5.50
35
6531141220
ref: 35
RIM,REAR WHEEL
€ 119.00
36
6530041850
ref: 36
65300-41851
SPOKE SET,REAR
€ 48.00
37
6527032101
ref: 37
65270-28E00
STOPPER,BEAD
€ 38.00
38
0832211088
ref: 38
08322-01087
WASHER
€ 2.00
39
0831012086
ref: 39
08310-0008A
NUT
€ 1.50
