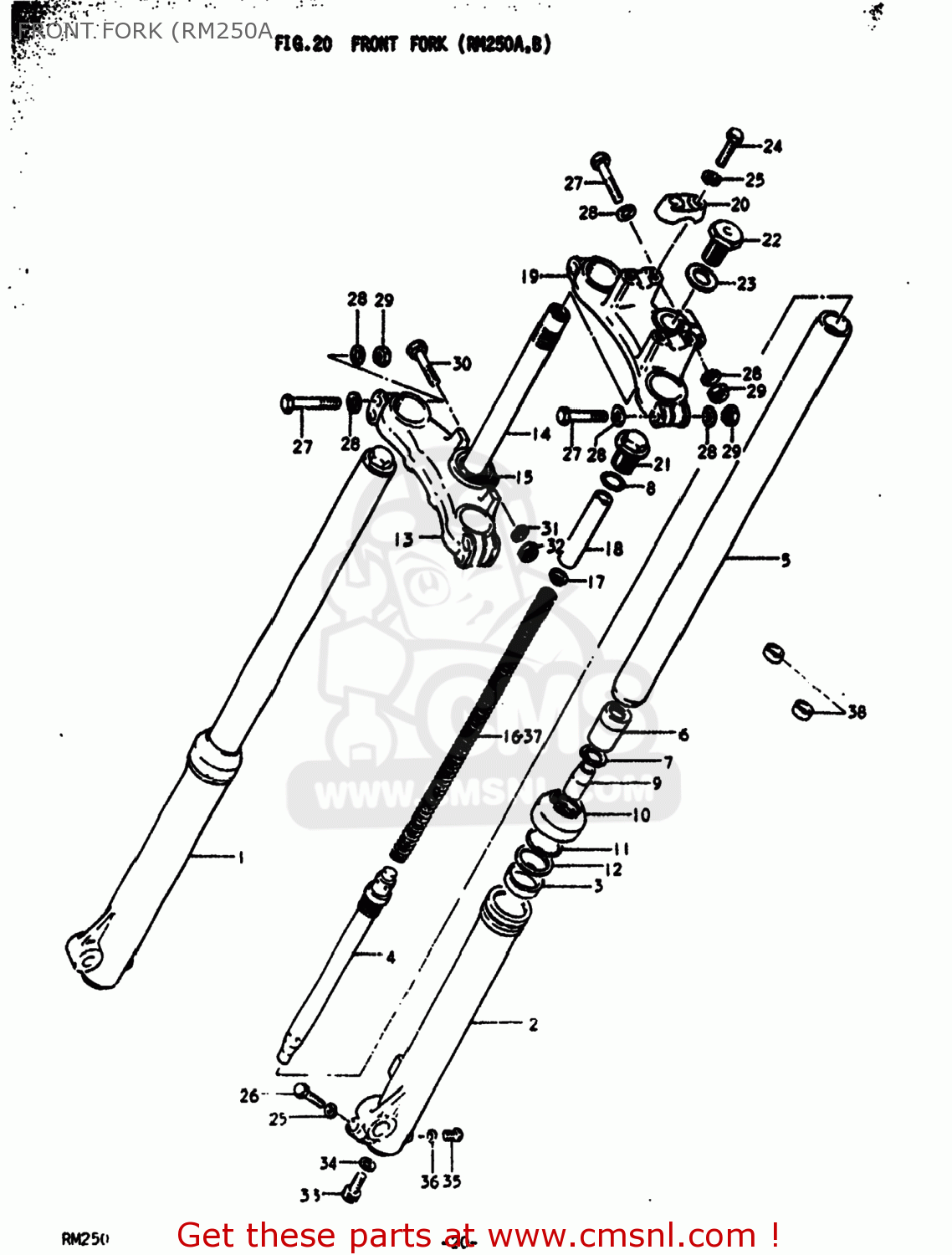

FRONT FORK (RM250A

ref

part #

description

quantity

0-1

5110041111
ref: 0-1

DAMPER SET

€ 0.00

0-2

5110041210
ref: 0-2

DAMPER SET

€ 0.00

1-1

5113041111
ref: 1-1

TUBE,OUTER,RIGHT

€ 80.50

1-2

5113041210
ref: 1-2

TUBE,OUTER,RIGHT

€ 0.00

2

5114041110
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5115341110
ref: 3
51153-16730

OIL SEAL,FRONT FORK

€ 28.50

4-1

5114641111
ref: 4-1

CYLINDER,FRONT FORK

€ 24.00

4-2

5114641210
ref: 4-2

CYLINDER,FRONT FORK

€ 0.00

5

5111141110
ref: 5

TUBE,FORK,INNER

€ 86.00

6

5111238010
ref: 6

PISTON,FORK INNER TUBE

€ 0.00

7

5111838010
ref: 7

RING

€ 0.00

8

5111716310
ref: 8

O RING

€ 4.50

9-1

5119538010
ref: 9-1

PIECE,OIL LOCK

€ 16.00

9-2

5119541210
ref: 9-2
51195-49071

PIECE,OIL LOCK

€ 12.00

10

5117341110
ref: 10

SEAL,DUST

€ 10.50

11

5115632110
ref: 11

CIRCLIP,FORK OIL SEAL

€ 6.00

12

5115832110
ref: 12

RING,FORK BACK UP

€ 3.00

13

5141141110
ref: 13

STEM,STEERING

€ 65.50

14-1

5140132110
ref: 14-1

STEM,STEERING

€ 59.50

14-2

5140141310
ref: 14-2

STEM,STEERING

€ 44.00

15

5162133001
ref: 15

RACE,STEERING OUTER LWR

€ 10.00

16-1

5117141110
ref: 16-1

SPRING

€ 36.50

16-2

5117141210
ref: 16-2

SPRING

€ 15.50

17-1

5117238010
ref: 17-1

GUIDE,FRONT FORK SPRING C

€ 9.50

17-2

5135607010
ref: 17-2

WASHER,STEERING STEM HEAD

€ 5.00

18-1

5117641010
ref: 18-1

SPACER,SPRING

€ 0.00

18-2

5117641310
ref: 18-2

SPACER,SPRING

€ 2.50

19

5131141110
ref: 19
51311-40210-08C

HEAD,STEERING STEM

€ 0.00

20

5621127100
ref: 20

HOLDER,HANDLEBAR

€ 12.50

21

5135138010
ref: 21
51351-40210

BOLT,FORK

€ 14.00

22-1

5135128310
ref: 22-1

CAP

€ 6.50

22-2

5135141310
ref: 22-2

BOLT,STEERING STEM HEAD

€ 10.50

23-1

5135628310
ref: 23-1

WASHER,STEM HEAD

€ 2.50

23-2

5135641310
ref: 23-2

WASHER

€ 6.00

24

0122108357
ref: 24
01204-08357

Bolt

€ 3.50

25

0832121088
ref: 25
08321-01087

LOCK WASHER

€ 2.00

26

0110708308
ref: 26
01500-08307

BOLT (8X30)

€ 2.50

27

0110708558
ref: 27
01500-08557

BOLT 8X55

€ 3.00

28

0832221088
ref: 28
08322-01087

WASHER

€ 2.00

29

0831012088
ref: 29
08310-00087

NUT

€ 2.00

30

0110710608
ref: 30
01500-1060A

BOLT 10X60

€ 3.50

31

0832121108
ref: 31
08321-01107

LOCK WASHER

€ 2.00

32

0831022108
ref: 32
08310-00107

NUT

€ 2.50

33

5114716510
ref: 33

BOLT,FORK CYLINDER(10X25)

€ 3.50

34-1

5114816510
ref: 34-1

GASKET (NAS)

€ 2.00

34-2

5114841310
ref: 34-2

GASKET (NAS)

€ 2.50

35

0211104087
ref: 35
02112-04087

SCREW

€ 1.50

36

5118303010
ref: 36

GASKET,DRAIN,PLUG (NAS)

€ 3.00

37

5117141630
ref: 37

SPRING

€ 9.00

38

5230041110
ref: 38

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
