CRANKCASE COVER-WATER PUMP (MODEL L/M/N)

RM250 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

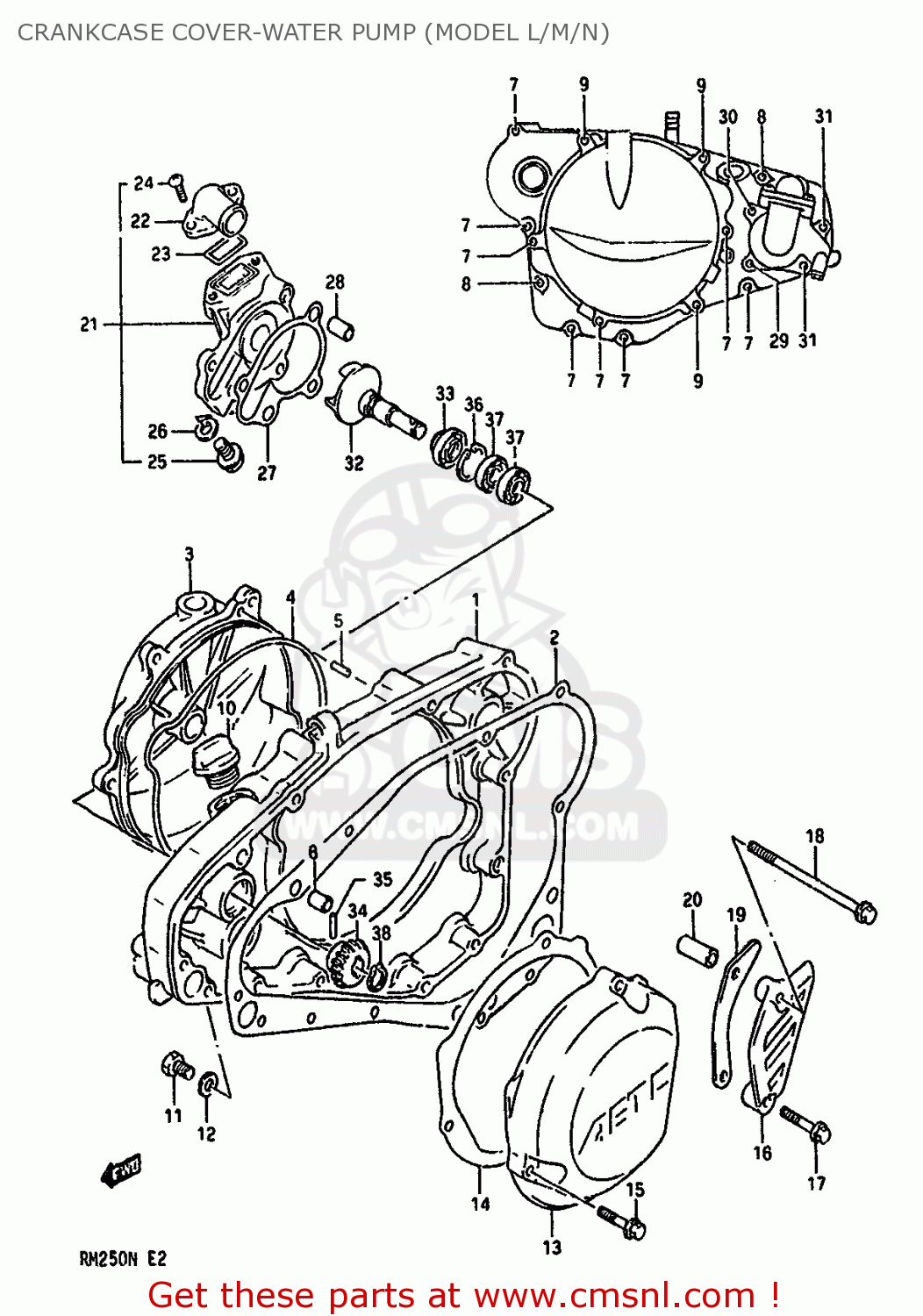

Crankcase cover-water pump (model l/m/n) diagram RM250 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

CRANKCASE COVER-WATER PUMP (MODEL L/M/N) RM250 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CRANKCASE COVER-WATER PUMP (MODEL L/M/N) RM250 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
CRANKCASE COVER-WATER PUMP (MODEL L/M/N) RM250 1989 (K) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1134128C10
ref: 1-1
MODEL L/M
COVER,CLUTCH
1134128C10
€ 129.50
1-2
1134128C30
ref: 1-2
MODEL N
COVER,CLUTCH
€ 175.50
2
1148228C01
ref: 2
GASKET,CLUTCH COVER (NAS)
1148228C01
€ 15.00
3
1137128C11
ref: 3
-11371-28C10
COVER,CLUTCH,OUTER
€ 339.50
4
1148428C10
ref: 4
O RING,CLUTCH COVER OUTER
1148428C10
€ 18.50
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
0421109129
ref: 6
PIN
0421109129
€ 2.00
7
0154706257
ref: 7
BOLT
0154706257
€ 2.50
8
0154706357
ref: 8
BOLT
0154706357
€ 2.50
9-1
0154706657
ref: 9-1
MODEL L/M
BOLT
0154706657
€ 2.00
9-2
0154706707
ref: 9-2
MODEL N
BOLT
0154706707
€ 2.50
10
0920020810
ref: 10
PLUG SET
0920020810
€ 8.00
11
0912806004
ref: 11
SCREW(6X10)
0912806004
€ 1.50
12
0916806004
ref: 12
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
13
1135128C00
ref: 13
COVER
€ 103.00
14-1
1148328C00
ref: 14-1
MODEL L
GASKET,MAGNETO COVER (NAS)
1148328C00
€ 7.00
14-2
1148328C01
ref: 14-2
MODEL M/N
GASKET,MAGNETO COVER (NAS)
1148328C01
€ 7.00
15
0154706257
ref: 15
BOLT
0154706257
€ 2.50
16
1136027C00
ref: 16
COVER,SPROCKET
€ 28.00
17
0154706257
ref: 17
BOLT
0154706257
€ 2.50
18
0154706958
ref: 18
BOLT 6X95
0154706958
€ 4.00
19-1
2764128C10
ref: 19-1
PLATE,FR CHAIN GUIDE(13T)
2764128C10
€ 8.50
19-2
2764128C00
ref: 19-2
OPT,FOR NT:14
PLATE,FR CHAIN GUIDE(14T)
2764128C00
€ 7.50
19-3
2764128C20
ref: 19-3
OPT,FOR NT:15
PLATE,FR CHAIN GUIDE(15T)
€ 8.00
20
0918006203
ref: 20
SPACER(6.5X10.5X25)
0918006203
€ 3.50
21
1741028C10
ref: 21
CASE,WATER PUMP
1741028C10
€ 93.50
22
1741228C10
ref: 22
CONNECTOR
1741228C10
€ 23.50
23
1741414300
ref: 23
O RING,WATER PUMP CONNECTOR
1741414300
€ 3.00
24
0211206164
ref: 24
SCREW
€ 2.00
25
1741500B00
ref: 25
BOLT,BLEEDER
1741500B00
€ 3.00
26
1741328C10
ref: 26
WASHER
1741328C10
€ 1.50
27
1743128C10
ref: 27
GASKET,WATER PUMP CASE (NAS)
1743128C10
€ 10.00
28
0421109129
ref: 28
PIN
0421109129
€ 2.00
29
0154706207
ref: 29
BOLT
0154706207
€ 2.50
30
0154706307
ref: 30
BOLT
0154706307
€ 2.50
31
0154706807
ref: 31
BOLT
0154706807
€ 3.50
32
1749128C10
ref: 32
IMPELLER,WATER PUMP
1749128C10
€ 39.00
33
1746128C10
ref: 33
SEAL,WATER PUMP OIL
1746128C10
€ 7.00
34
1744128C10
ref: 34
GEAR,WATER PUMP DRIVEN
1744128C10
€ 25.00
35
0926103010
ref: 35
PIN(3X13.8)
0926103010
€ 3.00
36
0833141249
ref: 36
CIRCLIP
0833141249
€ 2.50
37
0811369000
ref: 37
BEARING
0811369000
€ 23.50
38
0833131106
ref: 38
CIRCLIP,10MM
0833131106
€ 2.00
