TRANSMISSION

RM250 1993 (P) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

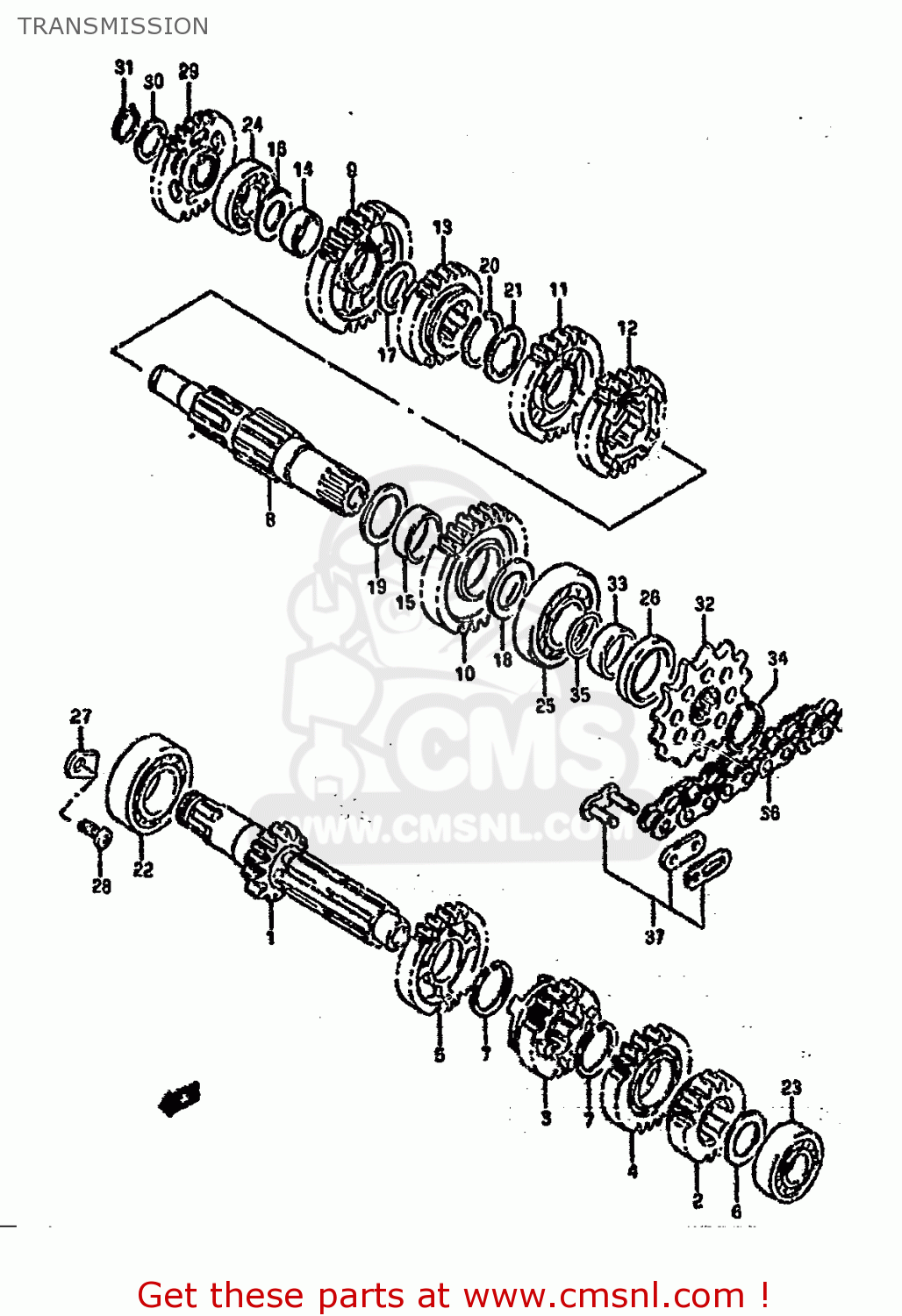

Transmission diagram RM250 1993 (P) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

TRANSMISSION RM250 1993 (P) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
TRANSMISSION RM250 1993 (P) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
TRANSMISSION RM250 1993 (P) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
2412128C04
ref: 1
SHAFT,COUNTER
2412128C04
€ 123.00
2
2422128C10
ref: 2
GEAR,SECOND DRIVE (NT:17)
2422128C10
€ 75.00
3
2423128C21
ref: 3
GEAR,3RD DRIVE
2423128C21
€ 78.50
4
2424128C20
ref: 4
GEAR,4TH DRIVE(NT:19)
2424128C20
€ 146.00
5
2425128C01
ref: 5
GEAR,FIFTH DRIVE
2425128C01
€ 109.50
6
0821117301
ref: 6
WASHER,THRUST
0821117301
€ 3.00
7
0938025010
ref: 7
CIRCLIP
0938025010
€ 3.00
8-1
2413128C01
ref: 8-1
MODEL P/R
SHAFT,DRIVE
2413128C01
€ 189.00
8-2
2413128C02
ref: 8-2
MODEL S
SHAFT,DRIVE
€ 189.00
9-1
2431128C01
ref: 9-1
MODEL P/R
GEAR,FIRST DRIVEN
€ 131.50
9-2
2431128C02
ref: 9-2
MODEL S
GEAR,1ST DRIVEN
2431128C02
€ 131.50
10
2432128C10
ref: 10
GEAR,2ND DRIVEN(NT:29)
2432128C10
€ 128.50
11
2433128C02
ref: 11
GEAR,THIRD DRIVEN
€ 85.00
12
2434128C20
ref: 12
GEAR,4TH DRIVEN(NT:22)
2434128C20
€ 146.00
13
2435128C20
ref: 13
GEAR,5TH DRIVEN(NT:23)
2435128C20
€ 82.50
14
0930020037
ref: 14
BUSH(20X24X10)
0930020037
€ 12.50
15
0930025031
ref: 15
BUSH(25X28X10)
0930025031
€ 16.00
16
0821117301
ref: 16
WASHER,THRUST
0821117301
€ 3.00
17
0821120301
ref: 17
WASHER
0821120301
€ 3.00
18
0821122342
ref: 18
WASHER
€ 4.50
19
0821125341
ref: 19
WASHER
0821125341
€ 3.50
20
0938025010
ref: 20
CIRCLIP
0938025010
€ 3.00
21
0916725012
ref: 21
WASHER,LOCK
0916725012
€ 3.50
22
0814362057
ref: 22
BEARING
0814362057
€ 24.50
23
0926217023
ref: 23
BEARING(17X40X12)
0926217023
€ 14.00
24
0926217023
ref: 24
BEARING(17X40X12)
0926217023
€ 14.00
25
0926222023
ref: 25
BEARING(22X56X15)
0926222023
€ 40.50
26
0928328020
ref: 26
SEAL,OIL(28X38X6)
0928328020
€ 11.50
27-1
2474120A10
ref: 27-1
~E.NO.100885
RETAINER,SHIFT CAM,R BEARING
€ 2.00
27-2
2474121A00
ref: 27-2
E.NO.100886~
RETAINER
2474121A00
€ 2.00
28-1
0211206128
ref: 28-1
MODEL P/R
SCREW 6X12
0211206128
€ 2.00
28-2
0211206123
ref: 28-2
MODEL S
SCREW
0211206123
€ 1.50
29
2626028C01
ref: 29
GEAR,KICK STARTER IDLE
2626028C01
€ 47.00
30
0822117245
ref: 30
SHIM
0822117245
€ 3.00
31-1
0938017001
ref: 31-1
MODEL P
CIRCLIP
0938017001
€ 2.00
31-2
0833131176
ref: 31-2
MODEL R/S
CIRCLIP,17MM
0833131176
€ 2.00
32-1
2751114310
ref: 32-1
SPROCKET,ENGINE
2751114310
€ 23.50
32-2
2751114300
ref: 32-2
OPT
SPROCKET,ENGINE
2751114300
€ 23.00
32-3
2751114320
ref: 32-3
OPT
SPROCKET(NT:15)
2751114320
€ 20.00
33
2753128C00
ref: 33
SPACER,ENGINE SPROCKET
2753128C00
€ 10.50
34
0938022006
ref: 34
CIRCLIP
0938022006
€ 3.00
35
0928021010
ref: 35
O RING(D:1.9,ID:21.8)
0928021010
€ 2.50
36-1
2760028C01116
ref: 36-1
116-112L,MODEL P/R
CHAIN,DRIVE(520KD2X116LE)
2760028C01116
€ 80.00
36-2
2760043D00114
ref: 36-2
MODEL S
CHAIN ASSEMBLY DID520DM.11
€ 72.50
36-3
2760028C01116
ref: 36-3
OPT,116-114L,MODEL P
CHAIN,DRIVE(520KD2X116LE)
2760028C01116
€ 80.00
37-1
2762028C00
ref: 37-1
MODEL P/R
JOINT ASSEMBLY,CHAIN
€ 8.50
37-2
2762043D00
ref: 37-2
MODEL S
JOINT SET,CHAIN
€ 5.00
37-3
2762014262
ref: 37-3
JOINT ASSEMBLY,CHAIN
€ 0.00
