REAR CUSHION LEVER (MODEL W)

RM250 1998 (W) (E02 E04 E24 P37)

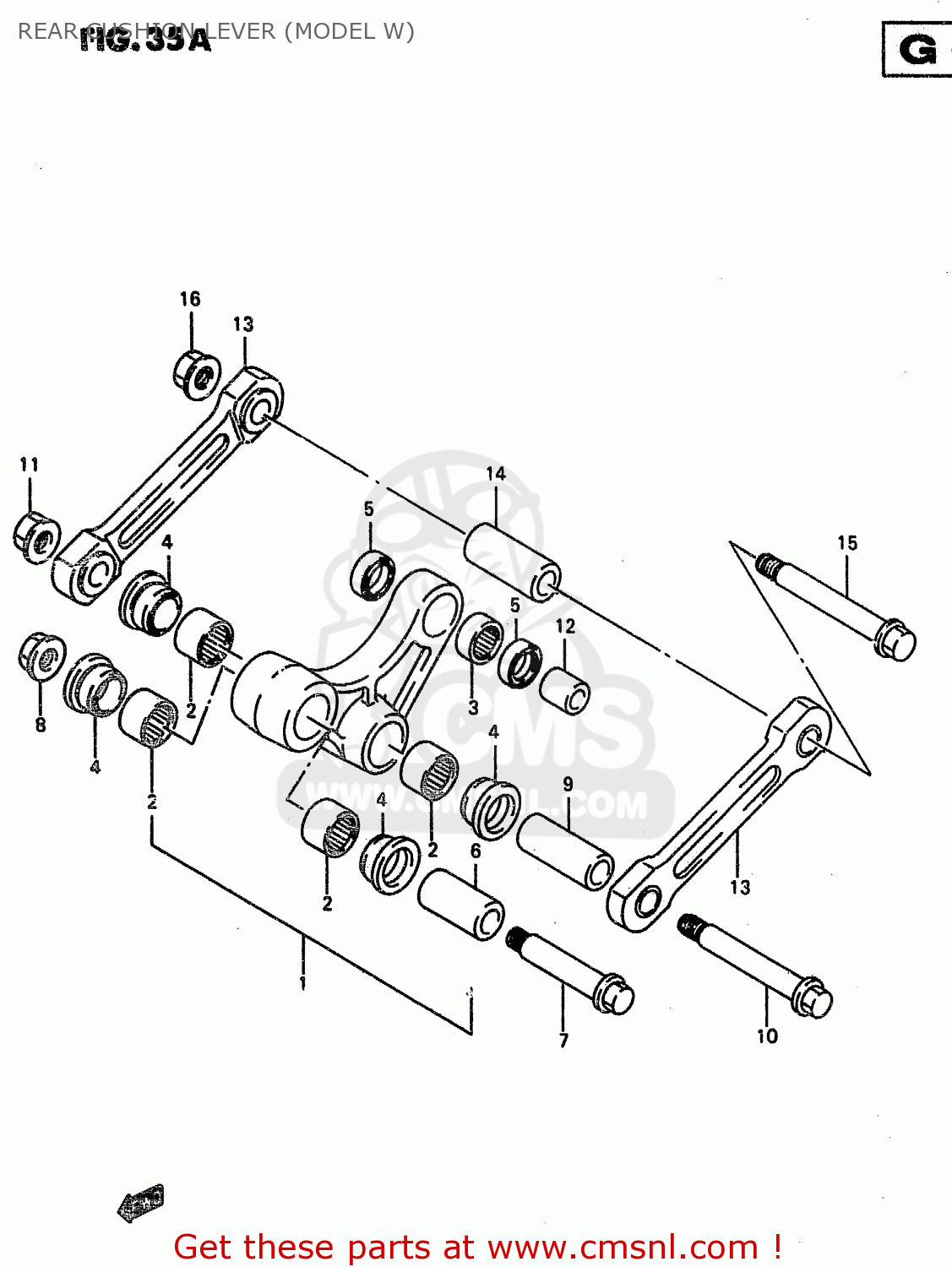

Rear cushion lever (model w) diagram RM250 1998 (W) (E02 E04 E24 P37)

prices are in EUR

ref

part #

description

quantity

6260037820
ref: 1

LEVER SET,RR CUSHION

€ 264.50

0926322066
ref: 2

BEARING(22X28X16)

€ 14.50

0926320083
ref: 3

BEARING(20X26X12)

€ 21.50

6262437E00
ref: 4

SEAL,SWINGING ARM RR

€ 7.00

0928420001
ref: 5

SEAL,OIL(20X26X4.5)

€ 3.50

6231737E00
ref: 6

SPACER,RR CUSHION LEVER FR

€ 14.50

6265837E00
ref: 7

BOLT,REAR CUSHION LEVER

€ 10.00

0831931128
ref: 8

NUT 12MM

€ 4.00

6264637E00
ref: 9

SPACER,RR CUSHION

€ 15.50

6262137E00
ref: 10

BOLT,REAR CUSHION

€ 9.00

0831931128
ref: 11

NUT 12MM

€ 4.00

6268436E00
ref: 12

SPACER,RR CUSHION LEVER RR

€ 9.50

6264037E00
ref: 13

ROD SET,REAR CUSHION

€ 116.50

6264637E00
ref: 14

SPACER,RR CUSHION

€ 15.50

6262137E00
ref: 15

BOLT,REAR CUSHION

€ 9.00

0831931128
ref: 16

NUT 12MM

€ 4.00

REAR CUSHION LEVER (MODEL W)

all assemblies
