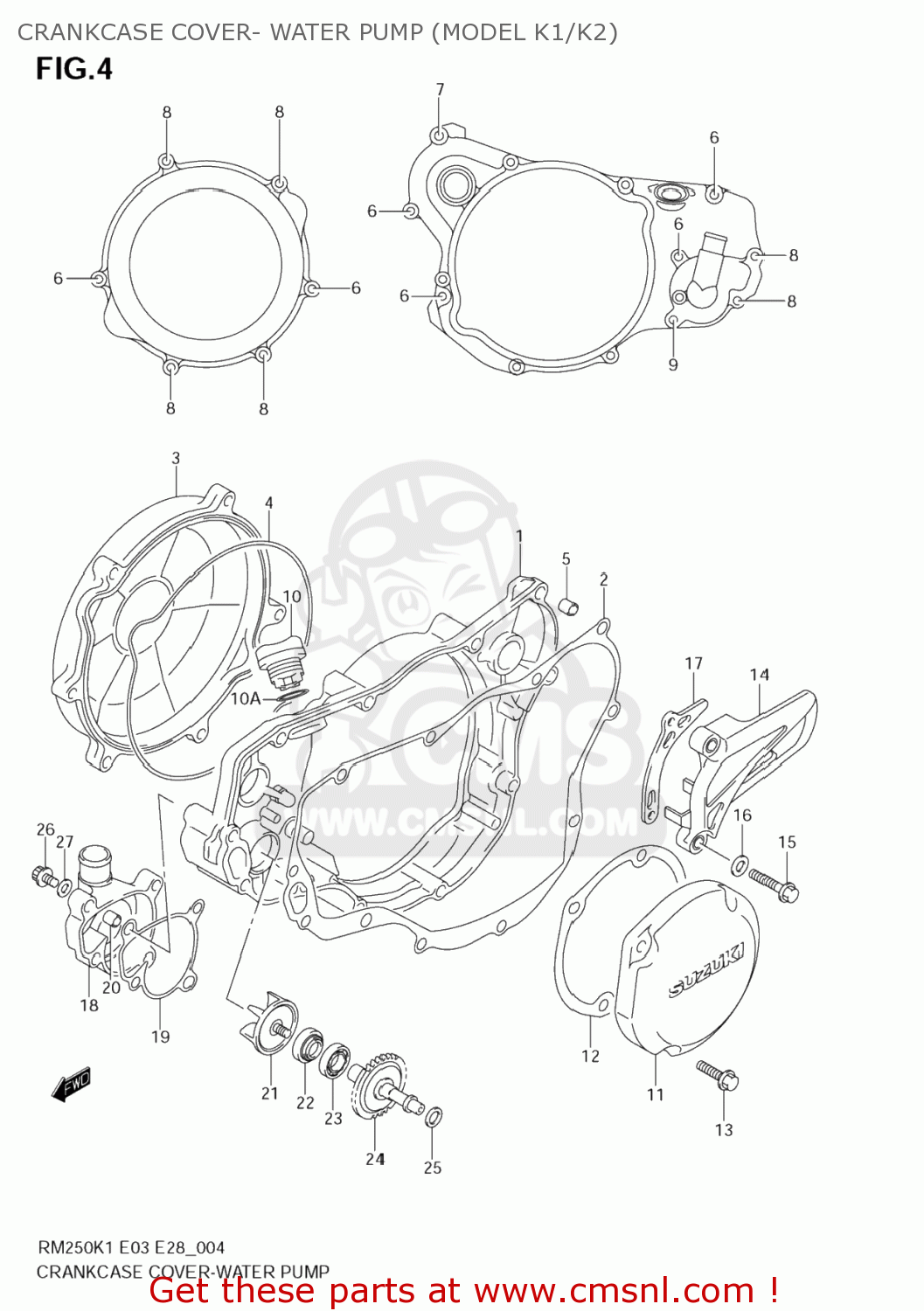

CRANKCASE COVER- WATER PUMP (MODEL K1/K2)

RM250 2006 (K6) USA (E03)

Crankcase cover- water pump (model k1/k2) diagram RM250 2006 (K6) USA (E03)

CRANKCASE COVER- WATER PUMP (MODEL K1/K2) RM250 2006 (K6) USA (E03)

CRANKCASE COVER- WATER PUMP (MODEL K1/K2) RM250 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1134137F00
ref: 1
11341-37F20

COVER,CLUTCH

€ 147.50

2-1

1148237F00
ref: 2-1
11482-37F01

GASKET,CL COVE (NAS)

€ 12.50

2-2

1148237F01
ref: 2-2

GASKET,COVER (NAS)

€ 12.50

3-1

1137137E01
ref: 3-1
11371-37F01

COVER,CLUTCH,OUTER

€ 134.00

3-2

1137137F00
ref: 3-2
11371-37F01

COVER,CLUTCH O

€ 134.00

4

1148437E00
ref: 4

O RING,CL COVER OUTER

€ 16.50

5

0421109109
ref: 5

PIN

€ 2.00

6-1

0154706253
ref: 6-1
01547-0625B

SCREW

€ 2.50

6-2

0910306250
ref: 6-2

BOLT(6X25)

€ 2.50

7-1

0154706303
ref: 7-1
01547-0630B

BOLT,G/S SWITC

€ 3.00

7-2

0910306251
ref: 7-2

BOLT(6X30)

€ 2.50

8-1

0154706603
ref: 8-1
01547-0660B

BOLT

€ 3.50

8-2

0910306253
ref: 8-2

BOLT(6X60)

€ 3.00

9-1

0154706653
ref: 9-1
01547-0665B

BOLT

€ 2.00

9-2

0910306245
ref: 9-2

BOLT(6X65)

€ 3.00

10

1197112C51
ref: 10

PLUG,OIL FILLER

€ 7.00

10A

0928017003
ref: 10A

O RING(D:3.1,ID:16.8)

€ 2.00

11-1

1135137E00
ref: 11-1
11351-37F00

COVER,MAGNETO

€ 124.00

11-2

1135137F00
ref: 11-2

COVER,MAGNETO

€ 124.00

12

1148337E02
ref: 12

GASKET,MAGNETO COVER

€ 8.00

13-1

0154706203
ref: 13-1
01547-0620B

SCREW

€ 2.50

13-2

0910306235
ref: 13-2
01547-06207

BOLT,6X20

€ 2.50

14

1136036E00
ref: 14

COVER,ENGINE SPROCKET

€ 27.00

15-1

0154706303
ref: 15-1
01547-0630B

BOLT,G/S SWITC

€ 3.00

15-2

0910306251
ref: 15-2

BOLT(6X30)

€ 2.50

16

0832201063
ref: 16
08322-0106B

WASHER

€ 2.00

17

2764137E00
ref: 17

PLATE,FR CHAIN GUIDE

€ 7.00

18-1

1741137F00
ref: 18-1
17411-37F01

CASE,WATER PUM

€ 60.50

18-2

1741137F01
ref: 18-2

CASE,WATER PUMP

€ 60.50

19

1743137F00
ref: 19

GASKET,WATER PUMP CASE (NAS)

€ 6.50

20

0421109109
ref: 20

PIN

€ 2.00

21-1

1749137F00
ref: 21-1
17491-37F01

IMPELLER,WATER

€ 23.00

21-2

1749137F01
ref: 21-2

IMPELLER,WATER PUMP

€ 23.00

22

1746103B00
ref: 22

SEAL,WATER PUMP OIL

€ 7.00

23

0811369010
ref: 23

BEARING

€ 19.00

24

1751037F00
ref: 24

SHAFT,WATER PUMP

€ 71.50

25

0918108139
ref: 25

SHIM(8.8X14X1)

€ 1.50

26

0712006103
ref: 26
07120-0610B

BOLT

€ 2.00

27

0916806004
ref: 27

GASKET(6.2X11X1).2 (NAS)

€ 1.50
