CARBURETOR (MODEL K4)
RM250Z 2001 (K1) USA (E03)

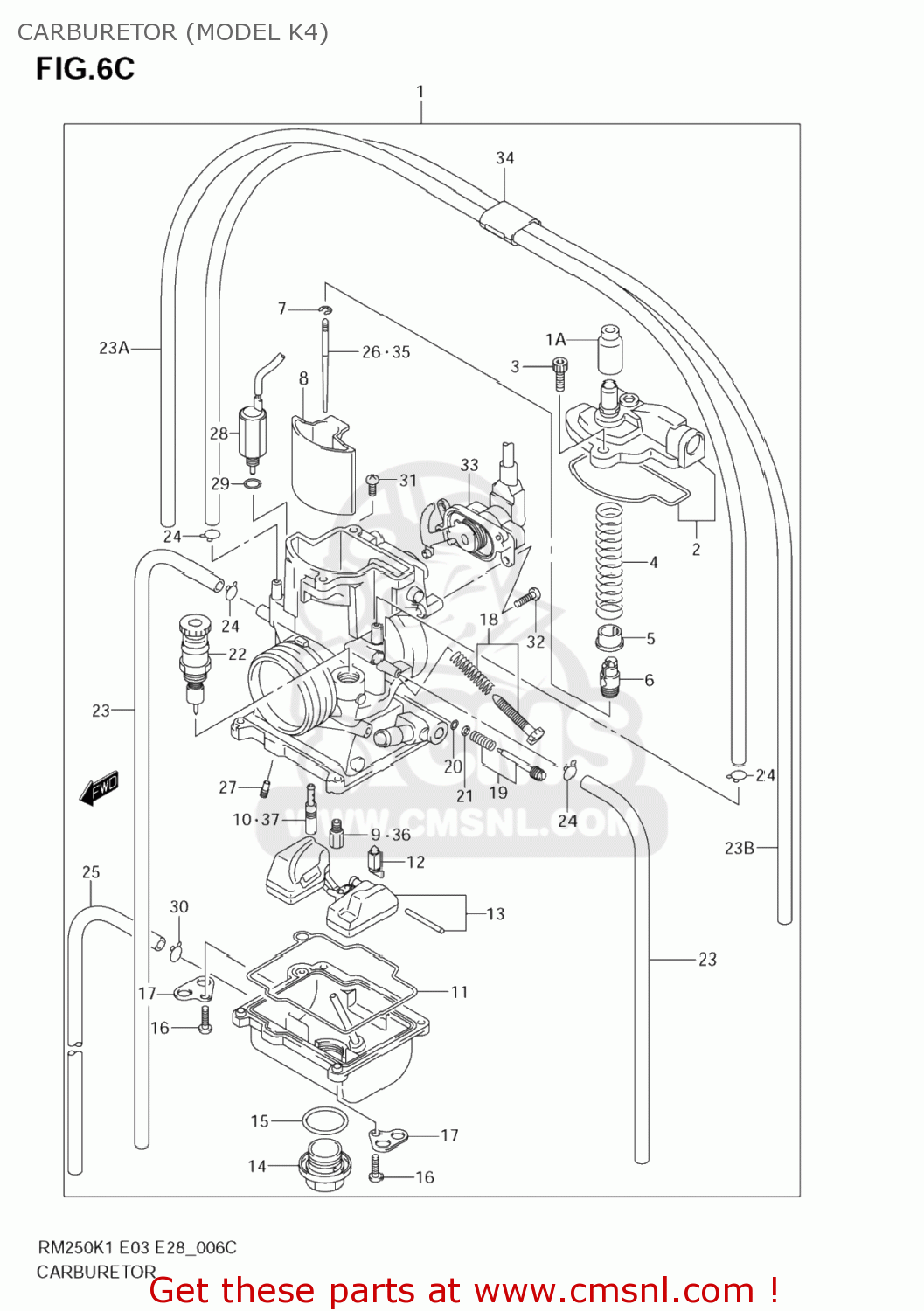

Carburetor (model k4) diagram RM250Z 2001 (K1) USA (E03)
CARBURETOR (MODEL K4) RM250Z 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
1368143D30
ref: 1A
CAP,CARBURETOR
€ 7.50
1-1
1320037F60
ref: 1-1
CARBURETOR ASSY
€ 0.00
1-2
1320037F70
ref: 1-2
CARBURETOR ASSY
€ 389.50
2
1326037F00
ref: 2
CAP SET,TOP
€ 37.50
3
1326237F00
ref: 3
SCREW
€ 5.50
4
1357337F00
ref: 4
SPRING,THROTTLE VALVE
€ 12.00
5
1342443D30
ref: 5
COLLAR,THROTTLE VALVE
€ 5.00
6
1358143D30
ref: 6
HOLDER,CABLE
€ 19.00
7
1339428E00
ref: 7
CLIP,NEEDLE
€ 3.50
8-1
1355137F60
ref: 8-1
VALVE,PISTON
€ 0.00
8-2
1355137F10
ref: 8-2
VALVE,THROTTLE
€ 100.50
9-1
0949133010
ref: 9-1
JET,MAIN(168)
€ 12.50
9-2
0949134011
ref: 9-2
JET,MAIN(172)
€ 12.50
10-1
0949248013
ref: 10-1
JET,SLOW(48)
€ 9.50
10-2
0949250023
ref: 10-2
JET,SLOW(50)
€ 11.50
11
1369644E00
ref: 11
GASKET,FLOAT CAHMBER
€ 11.00
12
1337043D30
ref: 12
VALVE SET,FLOAT
€ 40.50
13
1324036E20
ref: 13
FLOAT SET
€ 52.00
14
1324728E00
ref: 14
BOLT,DRAIN
€ 15.00
15
1324628E00
ref: 15
O RING
€ 3.50
16
1360226E10
ref: 16
SCREW
€ 6.00
17
1369336E00
ref: 17
PLATE
€ 4.50
18
1327043D30
ref: 18
SCREW SET,STOP
€ 14.50
19
1328043D30
ref: 19
SCREW SET,AIR
€ 18.50
20
1329526E00
ref: 20
O RING
€ 4.50
21
1329126E00
ref: 21
WASHER
€ 3.00
22
1341043D30
ref: 22
STARTER VALVE
€ 64.50
23
1368636E00
ref: 23
HOSE(4X7X620)
€ 7.50
23
1368636E00
ref: 23
HOSE(4X7X620)
€ 7.50
23A
1368636E00
ref: 23A
HOSE(4X7X620)
€ 7.50
23B
1368636E00
ref: 23B
HOSE(4X7X620)
€ 7.50
24
0940106101
ref: 24
CLIP
€ 2.50
25
0935135653600
ref: 25
HOSE(3.5X6.5X600)
€ 5.50
26-1
1338337FE0
ref: 26-1
NEEDLE,JET(NECJ)
€ 15.50
26-2
1338337FK0
ref: 26-2
NEEDLE,JET(NEDH)
€ 16.00
27-1
1334537F00
ref: 27-1
JET,POWER(45)
€ 12.50
27-2
0949255019
ref: 27-2
JET,POWER(55)
€ 13.00
28
1316037E01
ref: 28
SOLENOID ASSY
€ 105.50
29
1345337E00
ref: 29
O RING
€ 4.00
30
0940105402
ref: 30
09401-05402-XC0
CLIP
€ 1.00
31
1345237E00
ref: 31
SCREW
€ 2.00
32
1360237F00
ref: 32
SCREW
€ 2.50
33
1358037F01
ref: 33
SENSOR ASSY
€ 155.50
34
1345137F00
ref: 34
CLIP
€ 5.00
35-1
1338337FA0
ref: 35-1
NEEDLE,JET(NECF)
€ 15.00
35-10
1338337FK0
ref: 35-10
NEEDLE,JET(NEDH)
€ 16.00
35-11
1338337FL0
ref: 35-11
NEEDLE,JET(NEDW)
€ 15.50
35-12
1338337FM0
ref: 35-12
NEEDLE,JET(NEDJ)
€ 16.00
35-13
1338337FN0
ref: 35-13
NEEDLE,JET(NEDK)
€ 15.00
35-14
1338337FP0
ref: 35-14
NEEDLE,JET(NEDL)
€ 15.00
35-2
1338337FB0
ref: 35-2
NEEDLE,JET(NECG)
€ 16.00
35-3
1338337FC0
ref: 35-3
NEEDLE,JET(NECH)
€ 16.00
35-4
1338337FD0
ref: 35-4
NEEDLE,JET(NECW)
€ 15.50
35-5
1338337FE0
ref: 35-5
NEEDLE,JET(NECJ)
€ 15.50
35-6
1338337FF0
ref: 35-6
NEEDLE,JET(NECK)
€ 16.00
35-7
1338337FG0
ref: 35-7
NEEDLE,JET(NECL)
€ 15.00
35-8
1338337FH0
ref: 35-8
NEEDLE,JET(NEDF)
€ 15.00
35-9
1338337FJ0
ref: 35-9
NEEDLE,JET(NEDG)
€ 15.00
36-1
0949130018
ref: 36-1
JET,MAIN(150)
€ 13.00
36-10
0949134011
ref: 36-10
JET,MAIN(172)
€ 12.50
36-11
0949135009
ref: 36-11
JET,MAIN(175)
€ 15.50
36-12
0949135010
ref: 36-12
JET,MAIN(178)
€ 15.50
36-13
0949136008
ref: 36-13
JET,MAIN(180)
€ 15.50
36-14
0949137008
ref: 36-14
JET,MAIN(185)
€ 15.50
36-15
0949138011
ref: 36-15
JET,MAIN(190)
€ 15.50
36-16
0949139001
ref: 36-16
JET,MAIN(195)
€ 12.50
36-17
0949140013
ref: 36-17
JET,MAIN(200)
€ 12.50
36-18
0949141001
ref: 36-18
JET,MAIN(205)
€ 8.50
36-19
0949142006
ref: 36-19
JET,MAIN(210)
€ 8.50
36-2
0949130019
ref: 36-2
JET,MAIN(152)
€ 13.00
36-3
0949131012
ref: 36-3
JET,MAIN(155)
€ 13.00
36-4
0949131013
ref: 36-4
JET,MAIN(158)
€ 13.00
36-5
0949132010
ref: 36-5
JET,MAIN(160)
€ 13.00
36-6
0949132011
ref: 36-6
JET,MAIN(162)
€ 13.00
36-7
0949133009
ref: 36-7
JET,MAIN(165)
€ 9.00
36-8
0949133010
ref: 36-8
JET,MAIN(168)
€ 12.50
36-9
0949134010
ref: 36-9
JET,MAIN(170)
€ 12.50
37-1
0949235019
ref: 37-1
JET,SLOW(35)
€ 13.00
37-10
0949260016
ref: 37-10
JET,SLOW(60)
€ 12.50
37-2
0949240022
ref: 37-2
JET,SLOW(40)
€ 15.50
37-3
0949242019
ref: 37-3
JET,SLOW(42)
€ 12.50
37-4
0949245032
ref: 37-4
JET,PILOT(45)
€ 9.00
37-5
0949248013
ref: 37-5
JET,SLOW(48)
€ 9.50
37-6
0949250023
ref: 37-6
JET,SLOW(50)
€ 11.50
37-7
0949252011
ref: 37-7
JET,SLOW(52)
€ 11.50
37-8
0949255017
ref: 37-8
JET,SLOW(55)
€ 11.50
37-9
0949258001
ref: 37-9
JET,PILOT(58)
€ 9.50
