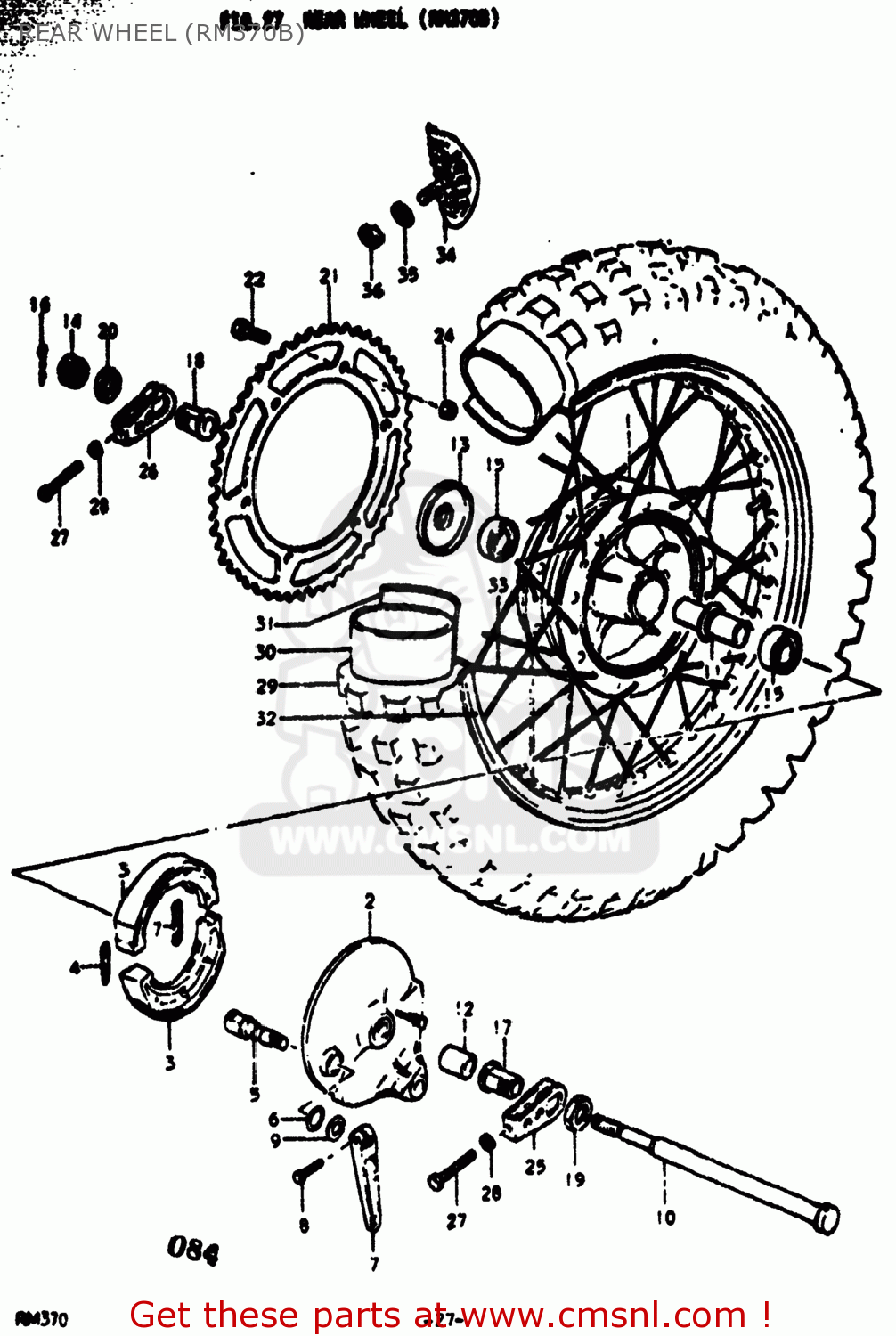

REAR WHEEL (RM370B)

ref

part #

description

quantity

1-1

6411041602
ref: 1-1

HUB COMP,REAR

€ 166.50

1-2

6410041820
ref: 1-2

HUB REAR

€ 256.00

2-1

6421041103
ref: 2-1

PANEL,REAR HUB

€ 82.00

2-2

6421041701
ref: 2-2

PANEL,REAR HUB

€ 116.00

3

5441008002
ref: 3
64400-02830

SHOE,BRAKE

€ 35.00

4

5542041100
ref: 4

SPRING

€ 5.50

5

5444108001
ref: 5
54440-08004

CAM,FRONT BRAKE

€ 19.00

6

0920815001
ref: 6

DUST SEAL

€ 0.00

7

5445141100
ref: 7

LEVER,FRONT BRAKE CAM

€ 43.50

8

0111206258
ref: 8
01500-06257

BOLT

€ 2.00

9

0916015001
ref: 9
09160-15048

WASHER (15X24X1.6)

€ 2.50

10

6471141100
ref: 10

AXLE,REAR

€ 29.50

11

6473041101
ref: 11

SPACER,REAR HUB BEARING

€ 11.50

12

0918017044
ref: 12

SPACER

€ 3.50

13

6475041102
ref: 13

SPACER,REAR AXLE

€ 4.50

14

0831431148
ref: 14
08314-3114A

NUT

€ 2.50

15

0812362034
ref: 15
08133-62037

BEARING

€ 24.50

16

0411130408
ref: 16
04111-3040A

PIN 30X40

€ 1.50

17

6478141100
ref: 17

SPACER,CHAIN ADJUSTER

€ 7.00

18

6479141100
ref: 18

SPACER,CHAIN ADJUSTER

€ 14.50

19

0914024007
ref: 19

NUT

€ 4.50

20

0914022006
ref: 20

NUT

€ 6.00

21

6451141130
ref: 21
64511-41131

SPROCKET,REAR

€ 79.50

22

0912008003
ref: 22
09120-08004

SCREW

€ 3.00

24

0915908021
ref: 24

NUT

€ 1.50

25

6142041100
ref: 25

ADJUSTER,CHAIN

€ 8.00

26

6141041100
ref: 26

ADJUSTER,CHAIN

€ 10.00

27

0910408006
ref: 27
09104-08034

BOLT

€ 3.00

28

0831211088
ref: 28
08310-00087

NUT

€ 2.00

29

6510041610
ref: 29
65100-14230

TIRE

€ 0.00

30

6520041110
ref: 30
65200-16510

TUBE ASSEMBLY,WHEEL,INNER

€ 16.00

31

6526116510
ref: 31
65261-33030

PROTECTOR,WHEEL,INNER

€ 5.50

32

6531141220
ref: 32

RIM,REAR WHEEL

€ 119.00

33

6530041850
ref: 33
65300-41851

SPOKE SET,REAR

€ 48.00

34

6527032101
ref: 34
65270-28E00

STOPPER,BEAD

€ 38.00

35

0832211088
ref: 35
08322-01087

WASHER

€ 2.00

36

0831211088
ref: 36
08310-00087

NUT

€ 2.00
