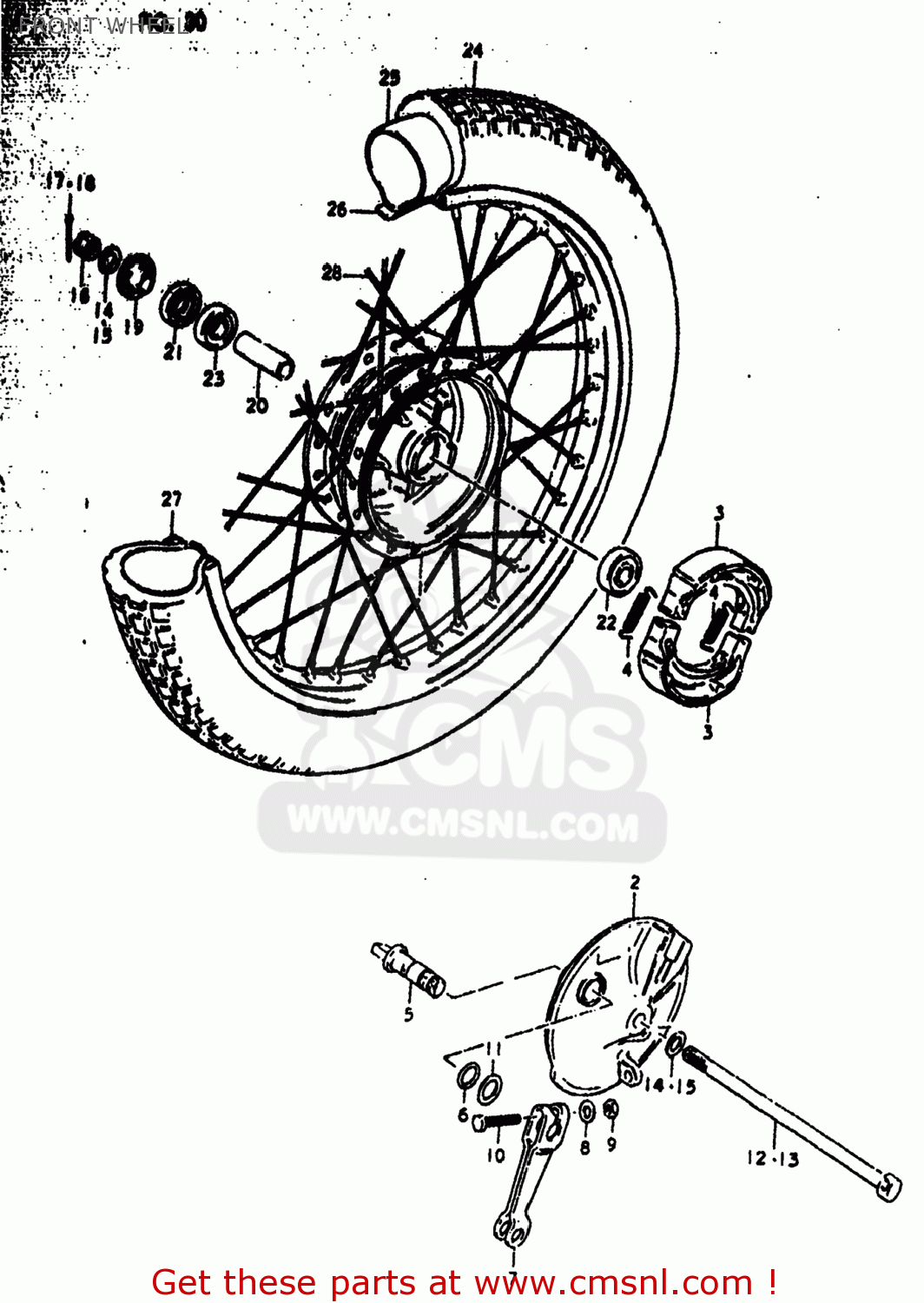

FRONT WHEEL

ref

part #

description

quantity

1

5411046021
ref: 1
54110-46002

HUB,FRONT

€ 91.00

2-1

5421046001
ref: 2-1

PANEL,FRONT HUB

€ 0.00

2-2

5421046002
ref: 2-2

PANEL,FR BRAKE ANCHOR

€ 60.50

3-1

5441043000
ref: 3-1
54400-35860

SHOE,BRAKE

€ 39.00

3-2

5441001005
ref: 3-2
54400-35860

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5-1

5444101002
ref: 5-1

CAM,FR BRAKE

€ 19.50

5-2

5444126501
ref: 5-2
54441-26503

CAM,FRONT BRAKE

€ 12.00

6-1

0928012001
ref: 6-1

O RING(D:2.5,ID:11.4)

€ 2.50

6-2

0928014003
ref: 6-2
09280-14011

O-RING (D:2.4 ID:13.8)

€ 3.50

7-1

5445138000
ref: 7-1

LEVER,FRONT BRAKE CAM

€ 34.00

7-2

5445126500
ref: 7-2

LEVER,FR BRAKE CAM

€ 7.00

8

0832221068
ref: 8
08322-01067

WASHER

€ 2.00

9

0831011068
ref: 9
08310-00067

NUT

€ 2.50

10-1

0910006050
ref: 10-1
09100-06150

BOLT

€ 1.50

10-2

0910006078
ref: 10-2

BOLT(6X33)

€ 2.50

11-1

0916012011
ref: 11-1

WASHER(12.5X20X1)

€ 1.50

11-2

0916014001
ref: 11-2
09160-14055

WASHER (14.5X22X1.6)

€ 2.50

12

5471126100
ref: 12
54711-04711

AXLE,FRONT

€ 19.50

13

5471146100
ref: 13
54711-46101

AXLE,FRONT

€ 16.00

14

0832211108
ref: 14
08322-01107

WASHER

€ 2.50

15

0916010039
ref: 15

WASHER(10.5X22X2.3)

€ 2.50

16

0831431108
ref: 16
08314-3110A

NUT

€ 1.50

17

0411120308
ref: 17
04111-2030A

COTTER PIN

€ 1.00

18

0411120208
ref: 18
04111-2020A

PIN 20X20

€ 1.50

19

5474026100
ref: 19
54740-26101

SPACER,FRONT AXLE,RIGHT

€ 11.00

20

0918010005
ref: 20
09180-10148

SPACER (10.2X16X51)

€ 5.50

21

0928415001
ref: 21

SEAL,OIL(15X31X5)

€ 4.00

22

0814363007
ref: 22

BEARING

€ 12.50

23

0811362000
ref: 23

BEARING

€ 7.50

24-1

5510046410
ref: 24-1
55100-46420

TIRE,FRONT

€ 41.50

24-2

5510046420
ref: 24-2

TIRE(2.25 14)

€ 41.50

25

5520046410
ref: 25

TUBE,INNER

€ 14.50

26

5526124010
ref: 26

PROTECTOR,INNER TUBE

€ 9.50

27

5531124020
ref: 27

RIM,FRONT WHEEL (1.40X14)

€ 73.00

28

5530024805
ref: 28
55320-24020

SPOKE SET,FRONT

€ 48.50
