HANDLE SWITCH (RM50C)
RM50 1980 (T)

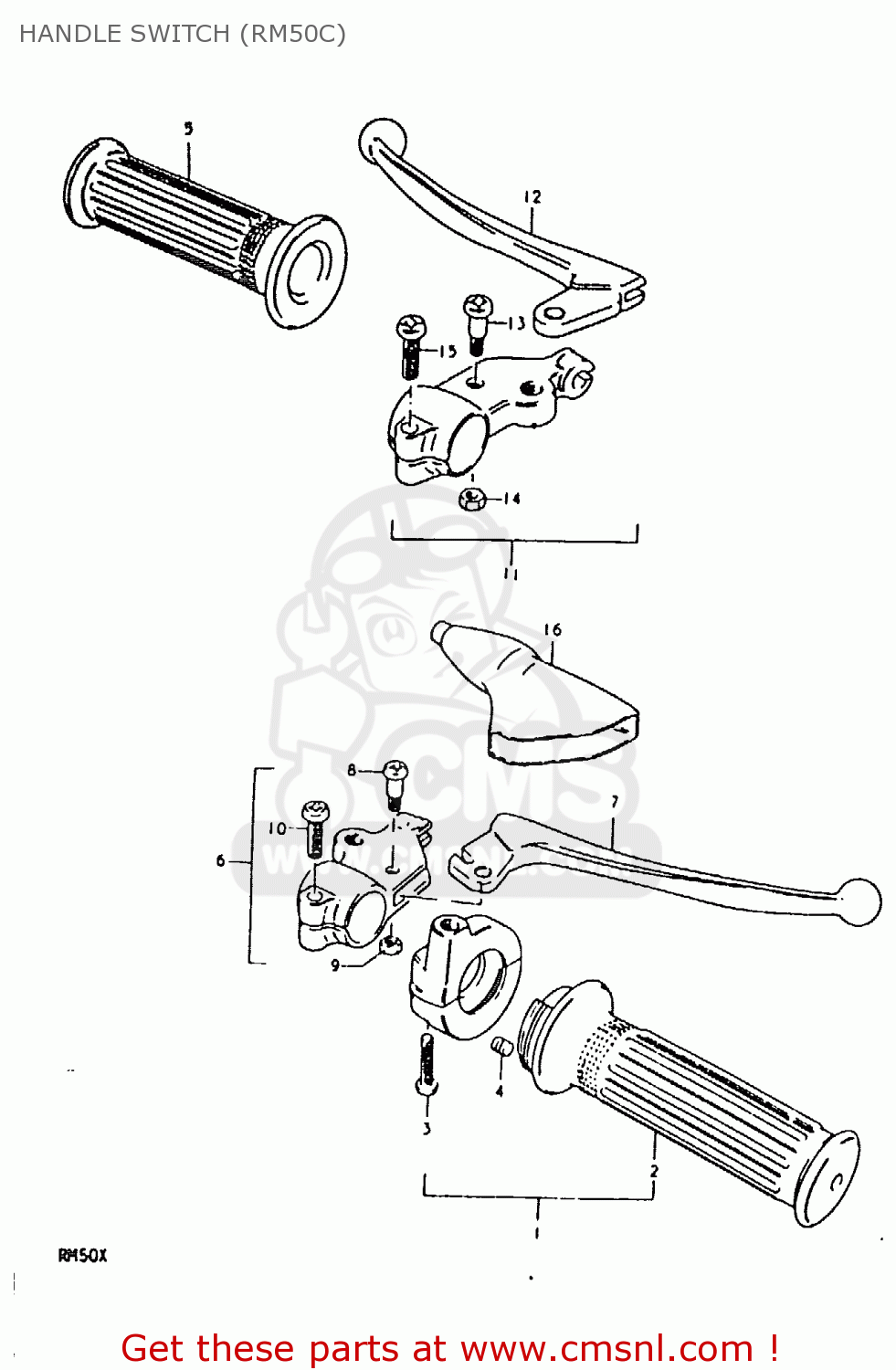

Handle switch (rm50c) diagram RM50 1980 (T)
HANDLE SWITCH (RM50C) RM50 1980 (T)
×
prices are in EUR
ref
part #
description
quantity
1
5710046401
ref: 1
FROM 57100-46400
CASE ASSEMBLY,THROTTLE
€ 53.50
2
5711046111
ref: 2
FROM 57110-46110
GRIP,THROTTLE
€ 18.00
3
0912505105
ref: 3
SCREW
€ 4.50
4
5863107010
ref: 4
PIECE,THROTTLE END
€ 3.00
5
5721146111
ref: 5
FROM 57211-46110
GRIP,L
€ 7.50
6
5730046501
ref: 6
FROM 57300-46500
LEVER ASSEMBLY,BRAKE
€ 27.50
7
5742046500
ref: 7
TO 57420-46501
LEVER,BRAKE
€ 24.50
8
5743101011
ref: 8
BOLT,LEVER
€ 5.00
9
5763327500
ref: 9
NUT,LEVER BOLT
€ 1.50
10
0211206208
ref: 10
SCREW
€ 2.00
11
5750046501
ref: 11
FROM 57500-46500
LEVER ASSEMBLY
€ 53.50
12
5762046500
ref: 12
TO 57620-46501
LEVER,CLUTCH
€ 26.50
13
5743101011
ref: 13
BOLT,LEVER
€ 5.00
14
0831011058
ref: 14
NUT
€ 2.50
15
0211206208
ref: 15
SCREW
€ 2.00
16
5734140001
ref: 16
COVER,CLUTCH LEVER
€ 7.50
