MUFFLER
RM80 1982 (Z) USA (E03)

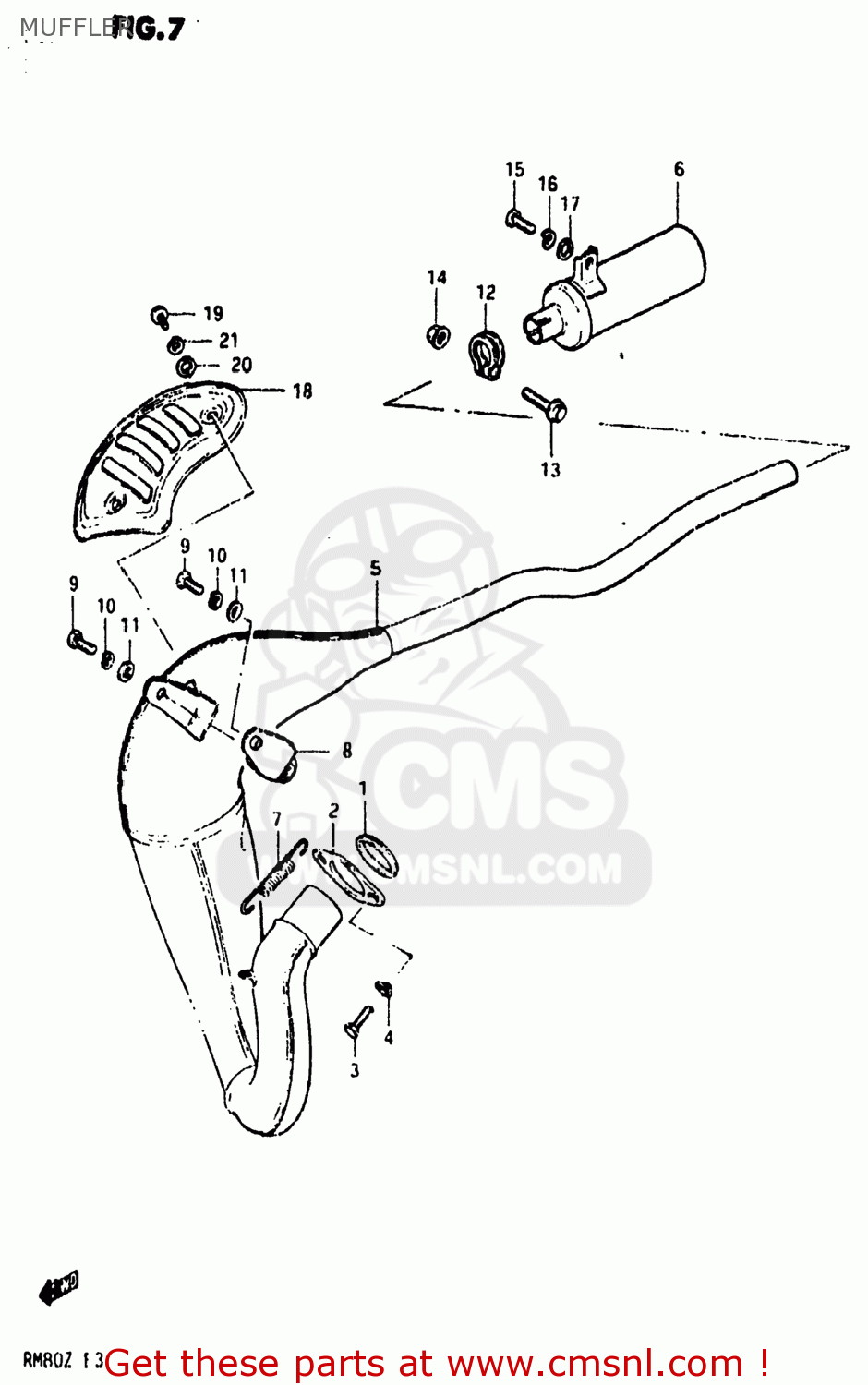

Muffler diagram RM80 1982 (Z) USA (E03)
MUFFLER RM80 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418120400
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 10.00
2
1418220401
ref: 2
CLAMP,EXHAUST PIPE
€ 4.00
3
0110706168
ref: 3
01500-06167
BOLT, UPPER
€ 3.00
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
1431020401
ref: 5
14310-20401-H01
BODY,MUFFLER
€ 237.00
6
1433020400
ref: 6
14330-20420
BODY,MUFFLER
€ 219.00
7
0944311002
ref: 7
SPRING
€ 4.50
8
1477020400
ref: 8
14770-20401
DAMPER,MUFFLER SUPPORT
€ 10.00
9
0110706128
ref: 9
01500-06127
BOLT
€ 2.00
10
0832121068
ref: 10
08321-01067
LOCK WASHER
€ 2.50
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
1477220400
ref: 12
14772-20401
CLAMP,EXHAUST
€ 2.50
13
0151706258
ref: 13
01550-06257
BOLT
€ 2.50
14
0831626068
ref: 14
08316-2006A
NUT 6MM
€ 2.00
15
0110706128
ref: 15
01500-06127
BOLT
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
1478120401
ref: 18
COVER,MUFFLER
€ 30.50
19
0211206108
ref: 19
02112-06107
SCREW
€ 1.50
20
0832221068
ref: 20
08322-01067
WASHER
€ 2.00
21
0832121068
ref: 21
08321-01067
LOCK WASHER
€ 2.50
