MUFFLER
RM80 1985 (F) USA (E03)

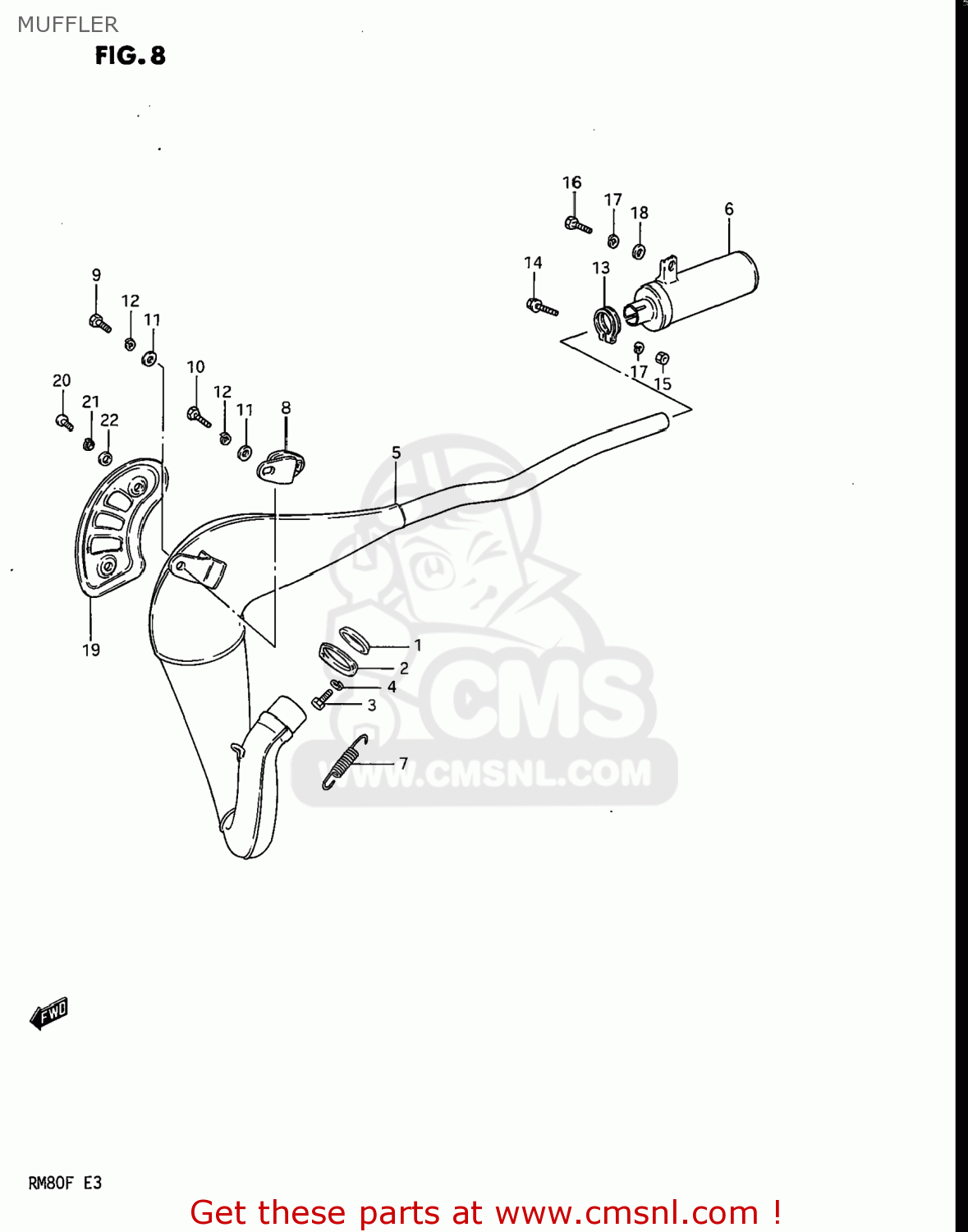

Muffler diagram RM80 1985 (F) USA (E03)
MUFFLER RM80 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418120400
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 10.00
2
1418220401
ref: 2
CLAMP,EXHAUST PIPE
€ 4.00
3
0110706165
ref: 3
01500-0616A
BOLT 6X16
€ 2.00
4
0832121065
ref: 4
08321-0106A
LOCK WASHER
€ 2.00
5-1
1431020901
ref: 5-1
14310-20920-H01
BODY,MUFFLER
€ 275.00
5-2
1431020920H01
ref: 5-2
BODY,MUFFLER,FIRST
€ 275.00
5-3
1431020940H01
ref: 5-3
14310-20920-H01
BODY,MUFFLER
€ 275.00
6-1
1433020400
ref: 6-1
14330-20420
BODY,MUFFLER
€ 219.00
6-2
1433020420H01
ref: 6-2
14330-20420
BODY,MUFFLER,SECOND
€ 219.00
6-3
1433020932H01
ref: 6-3
14330-20932
MUFFLER ASSEMBLY,SECOND
€ 36.00
7
0944311002
ref: 7
SPRING
€ 4.50
8
1477020400
ref: 8
14770-20401
DAMPER,MUFFLER SUPPORT
€ 10.00
9
0110706128
ref: 9
01500-06127
BOLT
€ 2.00
10
0110706168
ref: 10
01500-06167
BOLT, UPPER
€ 3.00
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13-1
1477220400
ref: 13-1
14772-20401
CLAMP,EXHAUST
€ 2.50
13-2
1477220410
ref: 13-2
CLAMP,MUFFLER SECOND
€ 3.50
14
0151706258
ref: 14
01550-06257
BOLT
€ 2.50
15
0831012068
ref: 15
08310-00067
NUT
€ 2.50
16
0110706128
ref: 16
01500-06127
BOLT
€ 2.00
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
19-1
1478120901
ref: 19-1
COVER,MUFFLER
€ 17.50
19-2
1478120910
ref: 19-2
COVER,MUFFLER
€ 16.50
20
0211206104
ref: 20
02112-0610B
SCREW
€ 1.50
21
0832121064
ref: 21
08321-0106A
WASHER,LOCK
€ 2.00
22
0832221064
ref: 22
08322-0106B
WASHER
€ 2.00
