STAND

RM80 1989 (K) USA (E03)

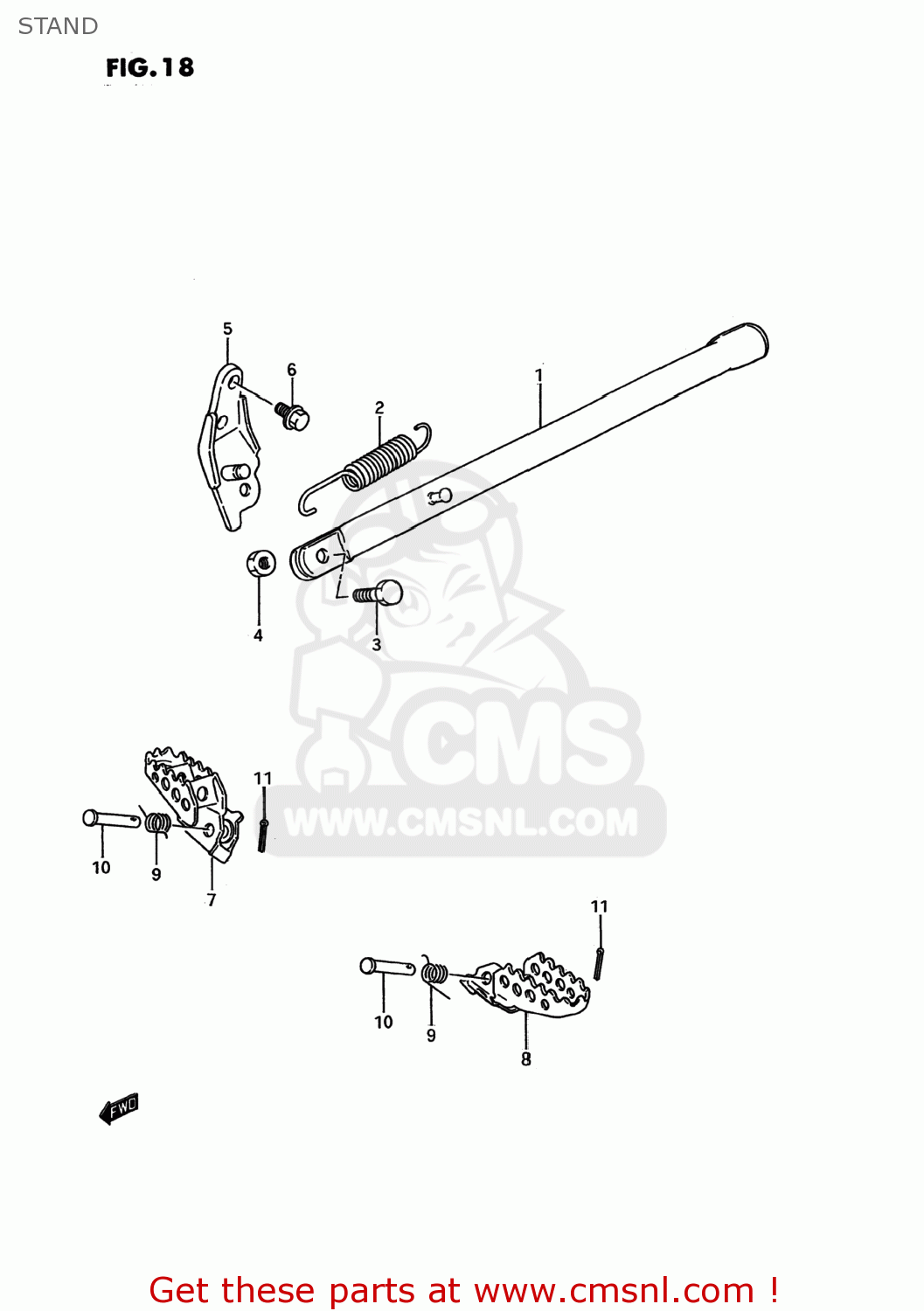

Stand diagram RM80 1989 (K) USA (E03)

STAND RM80 1989 (K) USA (E03)

STAND RM80 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4231002B0019F
ref: 1-1
42310-02B00-019

STAND,SIDE

€ 142.50

1-2

4231002B00019
ref: 1-2

STAND,PROP(BLACK)

€ 142.50

2

0944317007
ref: 2

SPRING

€ 4.50

3

0910008140
ref: 3

BOLT(8X25)

€ 2.00

4-1

0831022088
ref: 4-1
08310-00087

NUT 8MM

€ 2.00

4-2

0831000083
ref: 4-2
08310-0008A

NUT

€ 1.50

5-1

4233002B0019F
ref: 5-1
42330-02B01-019

BRACKET,SIDE STAND

€ 22.50

5-2

4233002B0119F
ref: 5-2
42330-02B01-019

BRACKET,SIDE STAND

€ 22.50

5-3

4233002B01019
ref: 5-3

BRACKET,PROP STAND(BLACK)

€ 22.50

6-1

0151708166
ref: 6-1
01550-0816A

BOLT

€ 3.00

6-2

0110708166
ref: 6-2
01500-0816B

BOLT, 8X1.25X1

€ 2.00

6-3

0155008163
ref: 6-3
01550-0816A

BOLT

€ 3.00

7-1

4355002B0019F
ref: 7-1
43550-02B01-019

FOOTREST COMP,FRONT,RIGHT

€ 29.50

7-2

4355002B0119F
ref: 7-2
43550-02B01-019

FOOTREST COMP,FRONT,RIGHT

€ 29.50

7-3

4355002B010RP
ref: 7-3
43550-02B01-019

FOOTREST COMP,FRONT,RIGHT

€ 29.50

7-4

4355002B011AZ
ref: 7-4
43550-02B01-019

FOOTREST COMP,FRONT,RIGHT

€ 29.50

7-5

4355002B01019
ref: 7-5

FOOTREST,FR,R

€ 29.50

8-1

4356002B0019F
ref: 8-1
43560-02B00-019

FOOTREST COMP,FRONT,LEFT

€ 23.50

8-2

4356002B000RP
ref: 8-2
43560-02B00-019

FOOTREST COMP,FRONT,LEFT

€ 23.50

8-3

4356002B001AZ
ref: 8-3
43560-02B00-019

FOOTREST COMP,FRONT,LEFT

€ 23.50

8-4

4356002B00019
ref: 8-4

FOOTREST,FR,L

€ 23.50

9

0944814012
ref: 9

SPRING

€ 3.00

10

0920008057
ref: 10

PIN

€ 3.00

11-1

0411120208
ref: 11-1
04111-2020A

PIN 20X20

€ 1.50

11-2

0920401002
ref: 11-2

PIN

€ 1.50
