GEAR SHIFTING (MODEL K/L/M/N/P/R/S)
RM80 1993 (P) USA (E03)

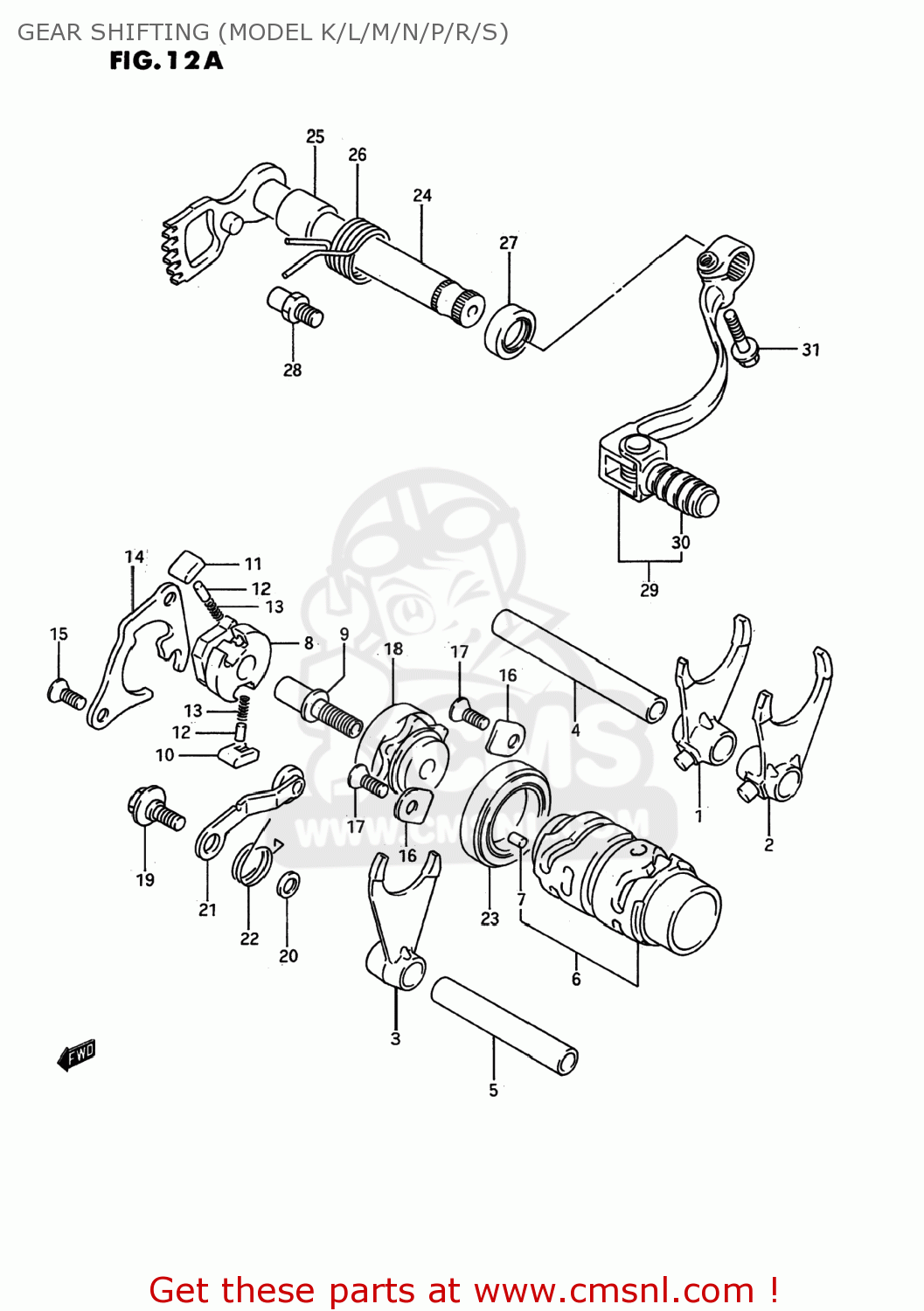

Gear shifting (model k/l/m/n/p/r/s) diagram RM80 1993 (P) USA (E03)
GEAR SHIFTING (MODEL K/L/M/N/P/R/S) RM80 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521102B41
ref: 1
FORK,GEAR SHIFT NO.1
€ 85.50
2
2522102B41
ref: 2
FORK,GEAR SHIFT NO.2
€ 58.00
3
2523102B40
ref: 3
FORK,GEAR SHIFT NO.3
€ 32.50
4
2541102B40
ref: 4
25411-02B41
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2542127C00
ref: 5
25421-27C01
SHAFT,GEAR SHIFT FORK
€ 9.50
6-1
2531002B41
ref: 6-1
25310-03B00
CAM,GEAR SHIFT
€ 94.00
6-2
2531002B50
ref: 6-2
25310-03B00
CAM,GEAR SHIFT
€ 94.00
6-3
2531003B00
ref: 6-3
CAM,GEAR SHIFT
€ 94.00
7-1
0926104011
ref: 7-1
PIN(4X11.8)
€ 2.00
7-2
0422104089
ref: 7-2
PIN
€ 1.50
8
2532231301
ref: 8
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
9-1
2531327C00
ref: 9-1
25313-27C02
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
9-2
2531327C01
ref: 9-2
25313-27C02
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
€ 1.50
13
0944004003
ref: 13
SPRING
€ 1.50
14
2533127C00
ref: 14
LIFTER,GEAR SHIFT POLE
€ 11.50
15
0212206123
ref: 15
02122-0612A
SCREW
€ 3.00
16
2474120A00
ref: 16
RETAINER,COUNTER BEARING,R
€ 2.00
17
0212206123
ref: 17
02122-0612A
SCREW
€ 3.00
18-1
2538127C02
ref: 18-1
25381-28C20
PLATE,GEAR SHIFT CAM STOPPER
€ 31.50
18-2
2538127C10
ref: 18-2
25381-28C20
PLATE,GEAR SHIFT CAM STOPPER
€ 31.50
18-3
2538128C20
ref: 18-3
PLATE,SHIFT CAM STOPPER
€ 31.50
19
0911106041
ref: 19
BOLT(6X14.3)
€ 3.00
20
0821106121
ref: 20
WASHER
€ 2.00
21-1
2535027C00
ref: 21-1
25350-27C30
STOPPER,SHIFT CAM
€ 7.50
21-2
2535027C30
ref: 21-2
STOPPER,SHIFT CAM
€ 7.50
22
0944818020
ref: 22
SPRING
€ 4.00
23
0814069050
ref: 23
BEARING
€ 28.50
24-1
2551002B42
ref: 24-1
25510-28C30
SHAFT,GEAR SHIFT
€ 48.00
24-2
2551028C30
ref: 24-2
SHAFT,GEAR SHIFT
€ 48.00
25
0918014016
ref: 25
SPACER(14X20X17.5)
€ 4.50
26
0944426013
ref: 26
SPRING
€ 3.50
27
0928314005
ref: 27
SEAL,OIL(14X22X7.3)
€ 6.50
28
2567101000
ref: 28
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
29-1
2560002B41
ref: 29-1
25600-02B44
LEVER ASSEMBLY,GEAR SHIFTING
€ 41.00
29-2
2560002B42
ref: 29-2
25600-02B44
LEVER ASSEMBLY,GEAR SHIFTING
€ 41.00
29-3
2560002B43
ref: 29-3
25600-02B44
LEVER ASSEMBLY,GEAR SHIFTING
€ 41.00
30
2565227C00
ref: 30
RUBBER,GEAR SHIFT PEDAL
€ 21.00
31
0154706303
ref: 31
01547-0630B
BOLT,G/S SWITC
€ 3.00
