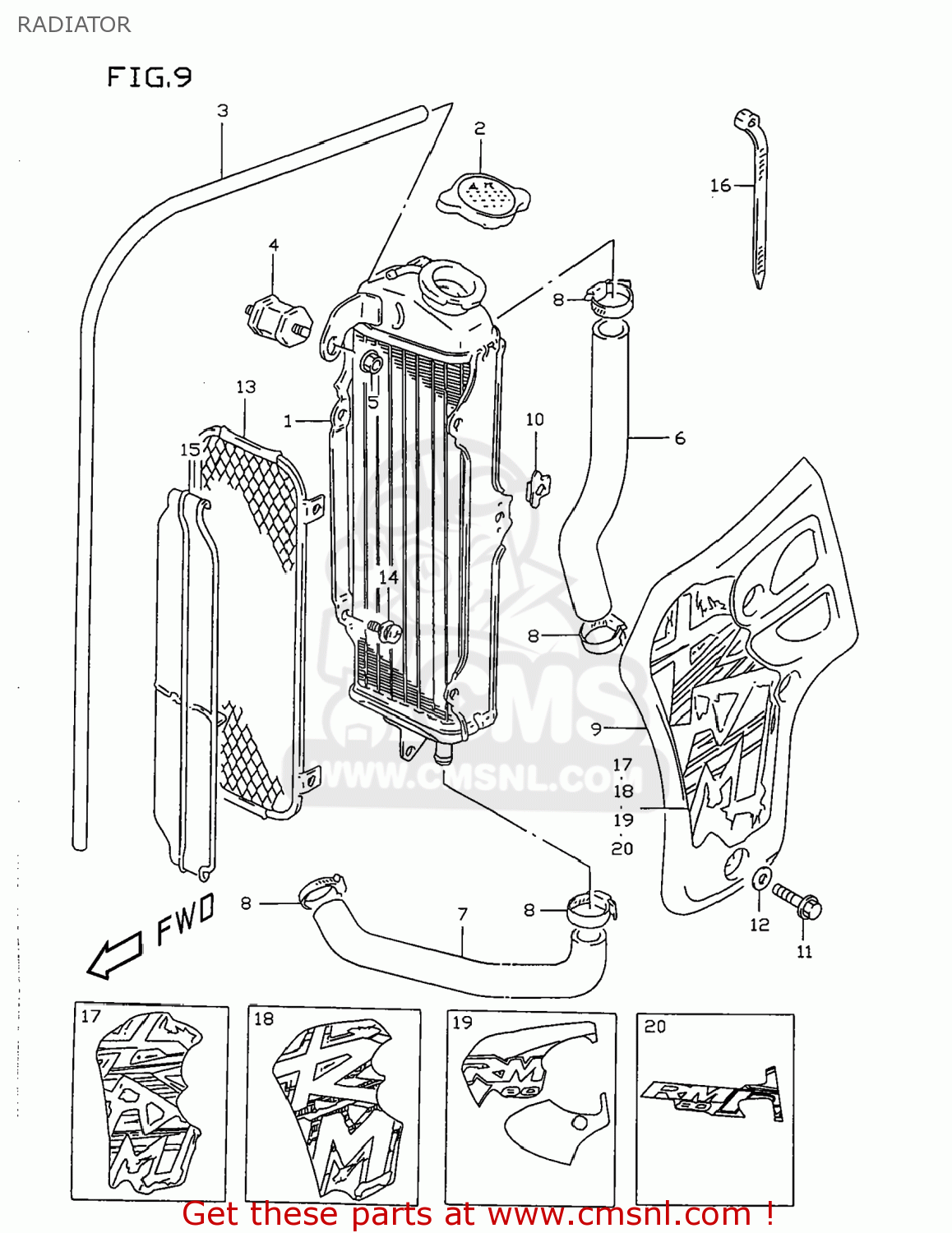

RADIATOR

ref

part #

description

quantity

1-1

1771002B03
ref: 1-1
17710-02B04

RADIATOR COMP,WATER

€ 359.50

1-2

1771002B04
ref: 1-2

RADIATOR ASSY,WATER

€ 359.50

2

1773012C01
ref: 2
17730-08J00

CAP,RADIATOR

€ 40.00

3

0935150803600
ref: 3
09351-50803-00B

HOSE (5X8X600)

€ 10.00

4

1778802B01
ref: 4

BOLT,RADIATOR CUSHION

€ 7.50

5

0831610063
ref: 5
08316-1006B

NUT

€ 2.50

6

1785102B40
ref: 6

HOSE,RADIATOR INLET

€ 14.50

7

1785202B40
ref: 7

HOSE,RADIATOR OUTLET

€ 15.50

8

0940228511
ref: 8

CLAMP

€ 8.50

9-1

1776103B00Z62
ref: 9-1

COVER,RADIATOR (PURPLE)

€ 14.50

9-2

1776103B00019
ref: 9-2

COVER,RADIATOR

€ 16.00

9-3

1776103B0025Y
ref: 9-3

COVER,RADIATOR

€ 20.00

10

1778520930
ref: 10

PLATE,RADIATOR COVER FITING

€ 4.50

11

0154706163
ref: 11
01547-0616B

BOLT

€ 2.50

12

0916006028
ref: 12

WASHER(6.5X18X1)

€ 1.50

13

1781002B40
ref: 13

BUMPER,RADIATOR

€ 26.00

14

0211276103
ref: 14
02112-7610A

SCREW

€ 2.00

15-1

1783020900019
ref: 15-1
17830-20901

LOUVER,RADIATOR (BLACK)

€ 20.50

15-2

1783020901
ref: 15-2

COVER,RADIATOR

€ 20.50

16

0940725401
ref: 16

CLAMP(L:235)

€ 4.00

17

6867103B50E8S
ref: 17

EMBLEM,RADIATOR COVER

€ 52.00

18

6867103B60G7E
ref: 18

EMBLEM,RADIATOR COVER

€ 0.00

19

6867003B70J7Z
ref: 19

TAPE SET,RADIATOR COVER

€ 54.50

20

6867003B80M2V
ref: 20

TAPE,RADIATOR COVER

€ 0.00

all assemblies
