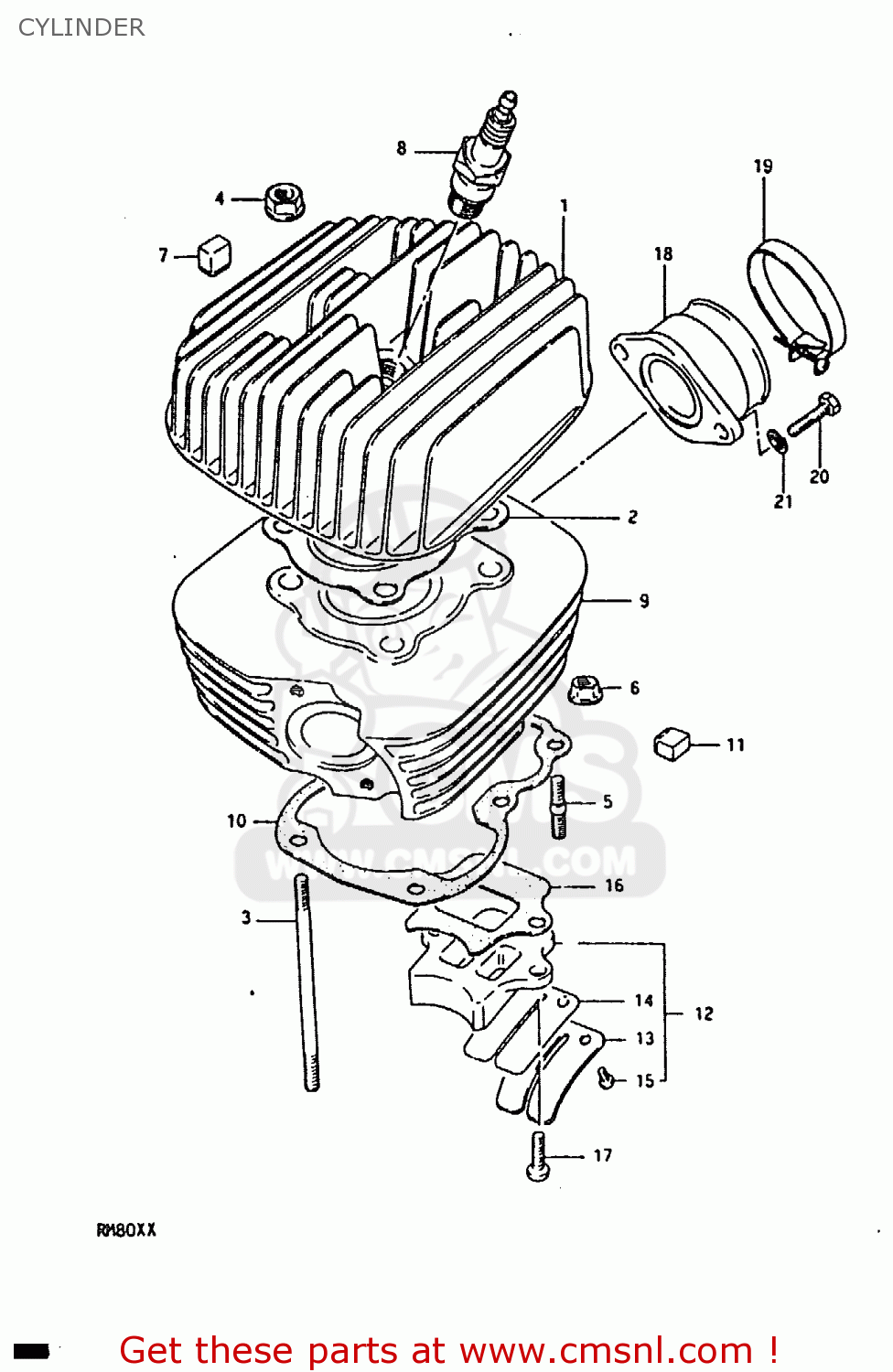

CYLINDER

ref

part #

description

quantity

1

1111120300
ref: 1

HEAD,CYLINDER

€ 88.00

2

1114146082
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 3.50

3

0910808028
ref: 3

BOLT,STUD

€ 5.50

4

0831616088
ref: 4

NUT

€ 2.50

5

0142106208
ref: 5

STUD 6X20

€ 2.50

6

0831616068
ref: 6

NUT

€ 2.50

7

1125225000
ref: 7
OPT

PAD,CYLINDER

€ 5.00

8-1

0948200091
ref: 8-1

PLUG,SPARK

€ 3.00

8-2

0948200092
ref: 8-2

PLUG,SPARK(W24ES)

€ 3.50

9-1

1121020310
ref: 9-1
MODEL T

CYLINDER (@F49)

€ 0.00

9-2

1121020321
ref: 9-2
MODEL X

CYLINDER (@F48)

€ 339.50

10

1124146900
ref: 10

GASKET,CYLINDER (MCA)

€ 8.00

11

1125225000
ref: 11
OPT

PAD,CYLINDER

€ 5.00

12

1315046011
ref: 12

VALVE ASSY,REED

€ 72.00

13

1315223011
ref: 13

STOPPER,REED VALVE

€ 4.50

14

1315327110
ref: 14

VALVE,REED

€ 8.50

15

1315419011
ref: 15

SCREW,REED VALVE

€ 1.50

16

1315646001
ref: 16

GASKET,REED VALVE (MCA)

€ 2.50

17

0211206168
ref: 17

SCREW

€ 2.50

18-1

1311046900
ref: 18-1
MODEL T

PIPE,INTAKE

€ 28.50

18-2

1311046910
ref: 18-2
MODEL X

PIPE,INTAKE

€ 35.00

19-1

0940246306
ref: 19-1
MODEL T

CLAMP

€ 4.50

19-2

0940244306
ref: 19-2
MODEL X

CLAMP

€ 5.50

20

0110706208
ref: 20

BOLT

€ 2.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50
