GEAR SHIFTING (MODEL K/L/M/N/P/R/S)

RM80X 1989 (K)

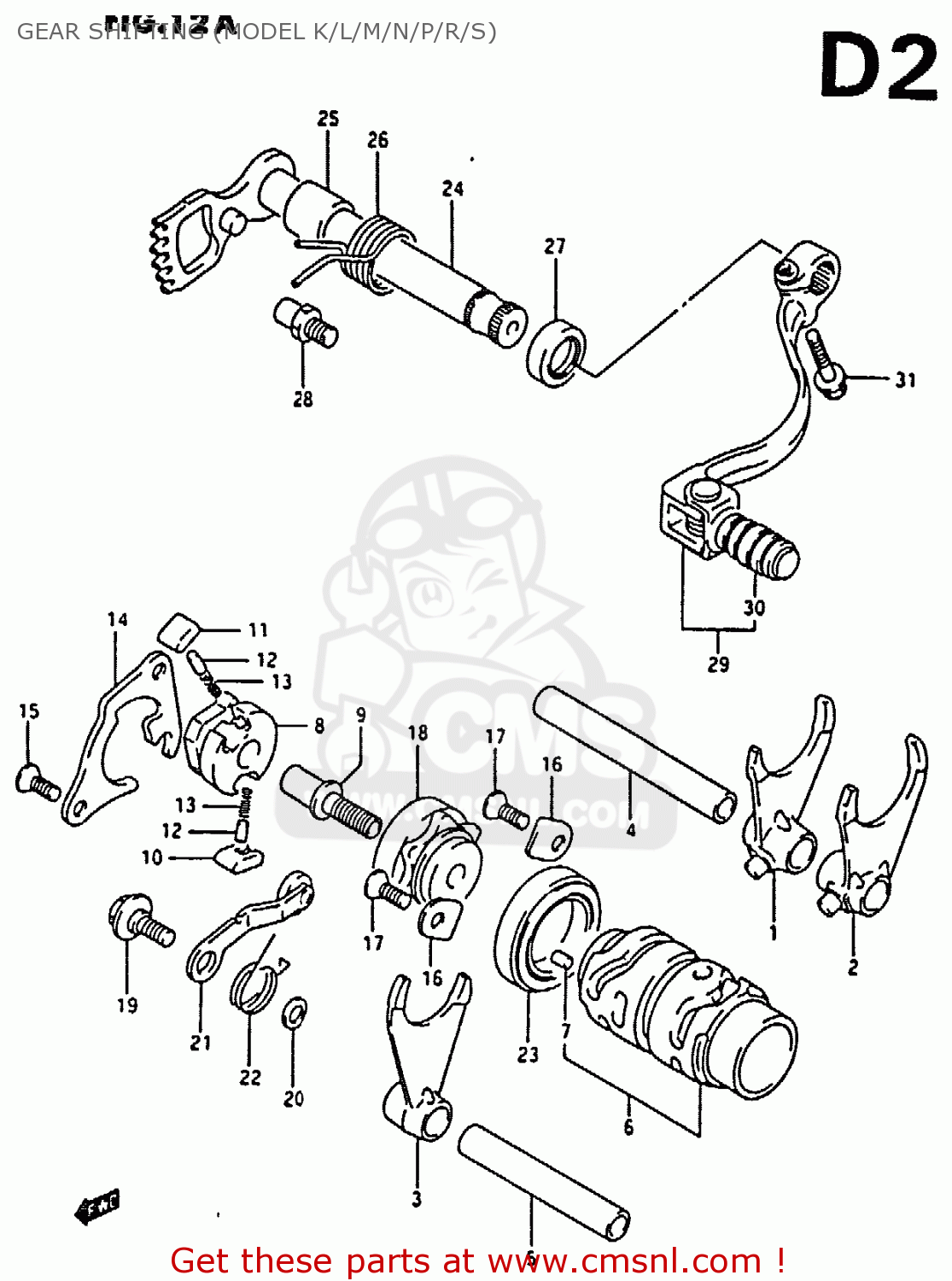

Gear shifting (model k/l/m/n/p/r/s) diagram RM80X 1989 (K)

GEAR SHIFTING (MODEL K/L/M/N/P/R/S) RM80X 1989 (K)
GEAR SHIFTING (MODEL K/L/M/N/P/R/S) RM80X 1989 (K)
GEAR SHIFTING (MODEL K/L/M/N/P/R/S) RM80X 1989 (K)
prices are in EUR
ref
part #
description
quantity
1
2521102B41
ref: 1
FORK,GEAR SHIFT NO.1
2521102B41
€ 85.50
2
2522102B41
ref: 2
FORK,GEAR SHIFT NO.2
2522102B41
€ 58.00
3
2523102B40
ref: 3
FORK,GEAR SHIFT NO.3
2523102B40
€ 32.50
4
2541102B40
ref: 4
SHAFT,GEAR SHIFT FORK
2541102B40
€ 11.50
5
2542127C00
ref: 5
SHAFT,GEAR SHIFT FORK
2542127C00
€ 9.50
6-1
2531002B42
ref: 6-1
MODEL K, @l25310-02B
CAM,GEAR SHIFT
€ 94.00
6-2
2531002B50
ref: 6-2
MODEL L
CAM,GEAR SHIFT
2531002B50
€ 94.00
6-3
2531003B00
ref: 6-3
MODEL M/N/P/R/S
CAM,GEAR SHIFT
€ 94.00
7-1
0926104011
ref: 7-1
L:11.8, MODEL K
PIN(4X11.8)
0926104011
€ 2.00
7-2
0422104089
ref: 7-2
MODEL L/M/N/P/R
PIN
0422104089
€ 1.50
8
2532231301
ref: 8
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
9
2531327001
ref: 9
PIN, SHIFT CAM DRIVEN GEAR
€ 0.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533127C00
ref: 14
LIFTER,GEAR SHIFT POLE
2533127C00
€ 11.50
15
0212206123
ref: 15
SCREW
0212206123
€ 3.00
16
2474120A00
ref: 16
RETAINER,COUNTER BEARING,R
2474120A00
€ 2.00
17
0212206123
ref: 17
SCREW
0212206123
€ 3.00
18-1
2538127C02
ref: 18-1
MODEL K
PLATE,GEAR SHIFT CAM STOPPER
2538127C02
€ 31.50
18-2
2538127C10
ref: 18-2
MODEL L
PLATE,GEAR SHIFT CAM STOPPER
2538127C10
€ 31.50
18-3
2538128C20
ref: 18-3
MODEL M/N/P/R/S
PLATE,SHIFT CAM STOPPER
2538128C20
€ 31.50
19
0911106041
ref: 19
BOLT(6X14.3)
0911106041
€ 3.00
20
0821106121
ref: 20
WASHER
0821106121
€ 2.00
21-1
2535027C00
ref: 21-1
MODEL K/L
STOPPER,SHIFT CAM
2535027C00
€ 7.50
21-2
2535027C30
ref: 21-2
MODEL M/N/P/R/S
STOPPER,SHIFT CAM
2535027C30
€ 7.50
22
0944818020
ref: 22
SPRING
0944818020
€ 4.00
23
0814069050
ref: 23
BEARING
0814069050
€ 28.50
24
2551028C30
ref: 24
SHAFT,GEAR SHIFT
2551028C30
€ 48.00
25
0918014016
ref: 25
SPACER(14X20X17.5)
0918014016
€ 4.50
26
0944426013
ref: 26
SPRING
0944426013
€ 3.50
27
0928314006
ref: 27
@l09283-14005
SEAL,OIL(14X22X6)
0928314006
€ 6.50
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
29-1
2560002B41
ref: 29-1
MODEL K/L
LEVER ASSEMBLY,GEAR SHIFTING
€ 41.00
29-2
2560002B42
ref: 29-2
MODEL M
LEVER ASSEMBLY,GEAR SHIFTING
€ 41.00
29-3
2560002B43
ref: 29-3
MODEL N/P/R/S
LEVER ASSEMBLY,GEAR SHIFTING
2560002B43
€ 41.00
30
2565227C00
ref: 30
RUBBER,GEAR SHIFT PEDAL
2565227C00
€ 21.00
31
0154706303
ref: 31
BOLT,G/S SWITC
0154706303
€ 3.00
