MAGNETO

RM80X 1991 (M)

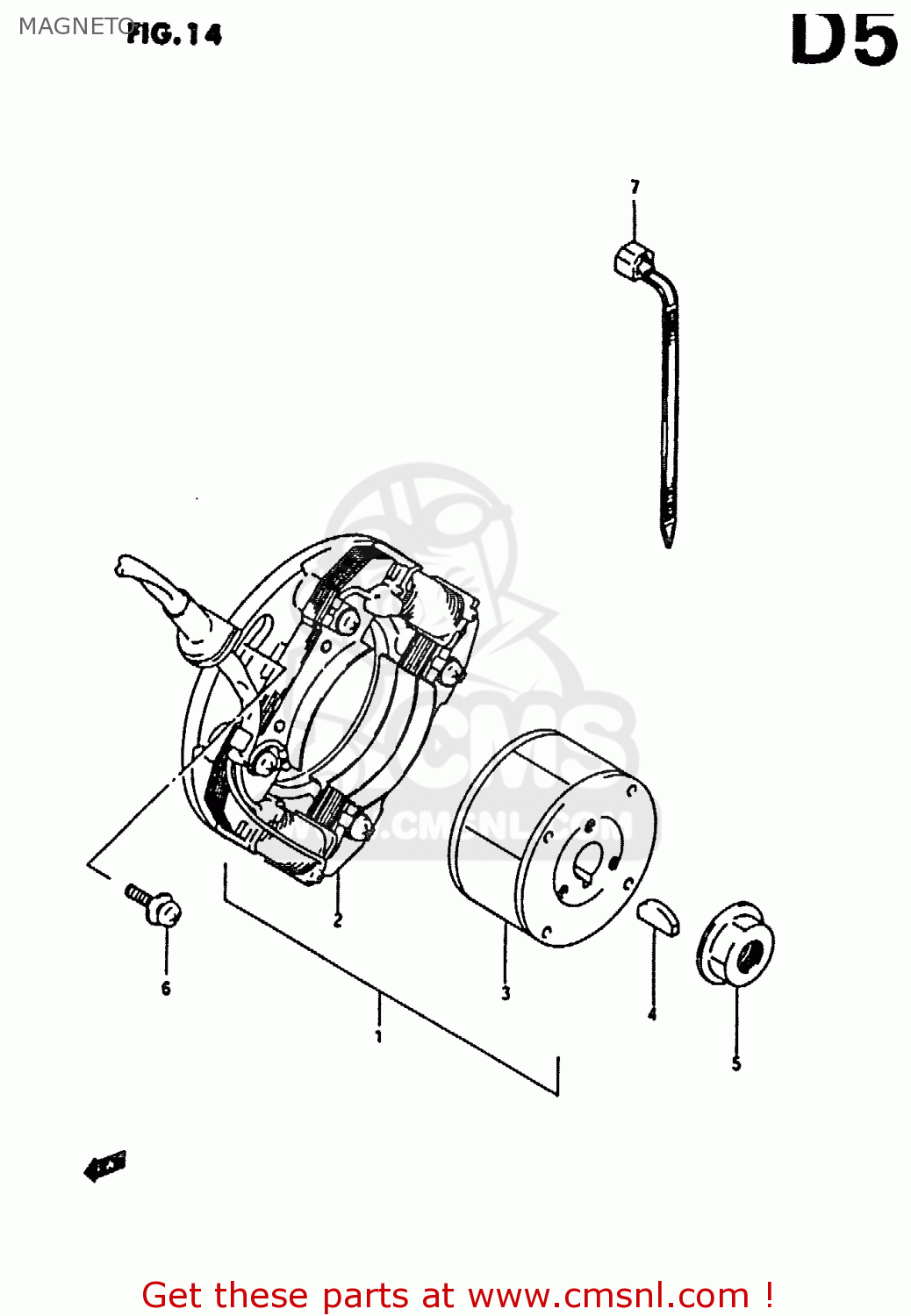

Magneto diagram RM80X 1991 (M)

prices are in EUR

ref

part #

description

quantity

1-1

3210002B21
ref: 1-1
MODEL G/H

MAGNETO ASSEMBLY

€ 446.00

1-2

3210002B31
ref: 1-2
MODEL J/K/L/M/N/P/R/

MAGNETO ASSEMBLY

€ 461.50

2-1

3210102B21
ref: 2-1
MODEL G/H

STATOR ASSEMBLY

€ 268.00

2-2

3210102B31
ref: 2-2
MODEL J/K/L/M/N/P/R/

STATOR

€ 268.00

3-1

3210202B20
ref: 3-1
MODEL G/H

ROTOR

€ 206.50

3-2

3210202B30
ref: 3-2
MODEL J/K/L/M/N/P/R/

ROTOR

€ 253.50

0942004008
ref: 4
@l08341-31049

KEY

€ 3.50

0831610103
ref: 5

NUT

€ 2.00

0211216203
ref: 6

SCREW

€ 2.50

7-1

0940714403
ref: 7-1

CLAMP(L:125)

€ 2.50

7-2

0940718403
ref: 7-2

CLAMP L:165

€ 2.50
