AIR CLEANER (MODEL G)
RM80X 1993 (P)

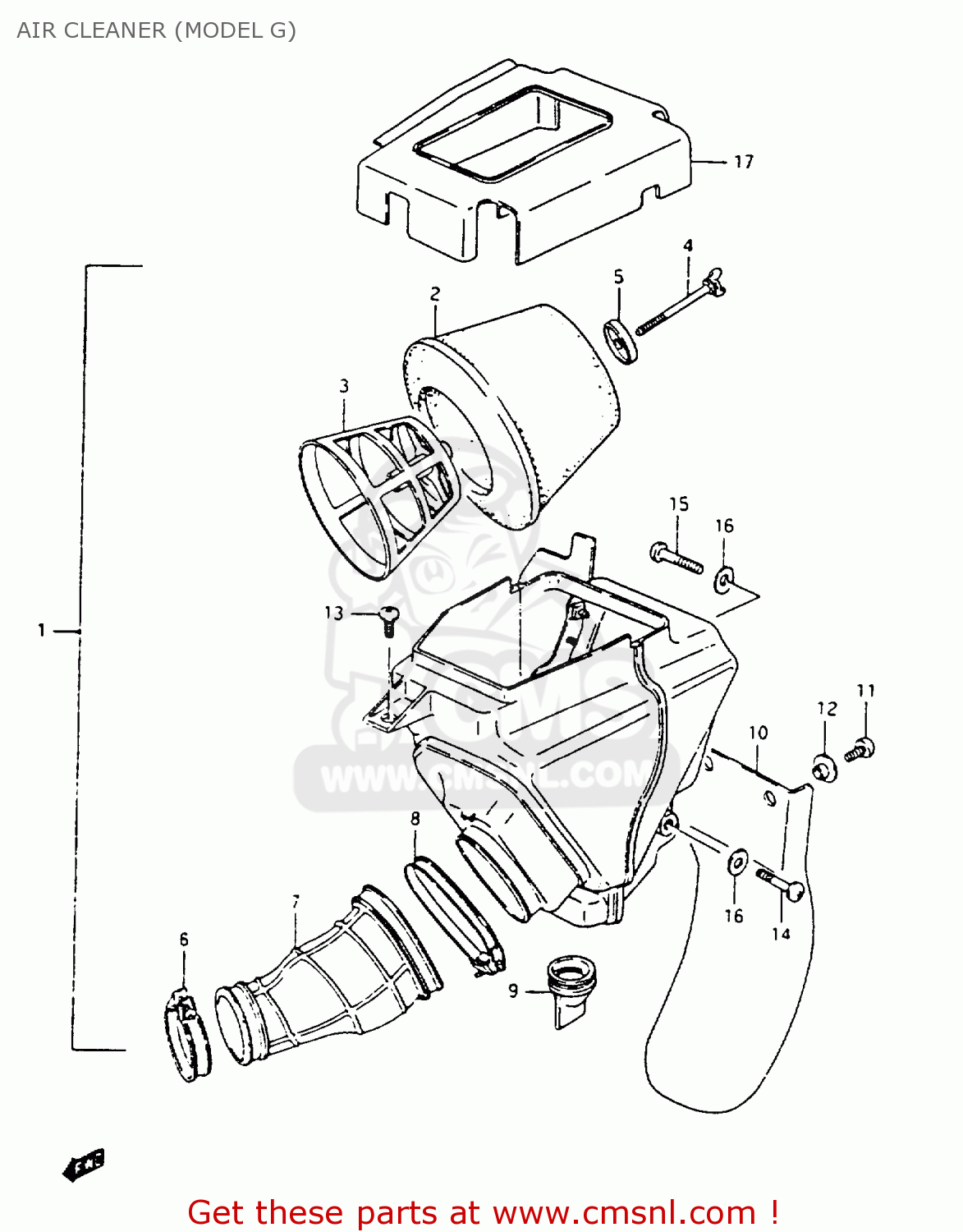

Air cleaner (model g) diagram RM80X 1993 (P)
AIR CLEANER (MODEL G) RM80X 1993 (P)
×
prices are in EUR
ref
part #
description
quantity
1
1370002B01
ref: 1
CLEANER ASSEMBLY,AIR
€ 0.00
2
1378002B00
ref: 2
FILTER ASSY
€ 24.50
3
1379102B00
ref: 3
HOLDER
€ 13.00
4
1383102B00
ref: 4
BOLT,WING
€ 4.00
5
1379213A01
ref: 5
WASHER,AIR CLEANER
€ 3.00
6
0940250208
ref: 6
CLAMP
€ 5.00
7
1388102B00
ref: 7
TUBE,AIR CLEANER OUTLET
€ 28.00
8
1382602B00
ref: 8
CLAMP
€ 7.00
9
1387318900
ref: 9
HOSE,AIR CLEANER DRAIN
€ 4.00
10
1373802B00
ref: 10
GUARD,MUD
€ 12.00
11
0214206167
ref: 11
SCREW
€ 2.00
12
1383802B00
ref: 12
COLLAR
€ 2.50
13
0214206127
ref: 13
SCREW 6X12
€ 1.50
14
0214206458
ref: 14
SCREW
€ 2.00
15
0214206508
ref: 15
SCREW
€ 2.50
16
0916006006
ref: 16
WASHER
€ 2.00
17
1373902B13
ref: 17
MUD GUARD,B
€ 26.50
