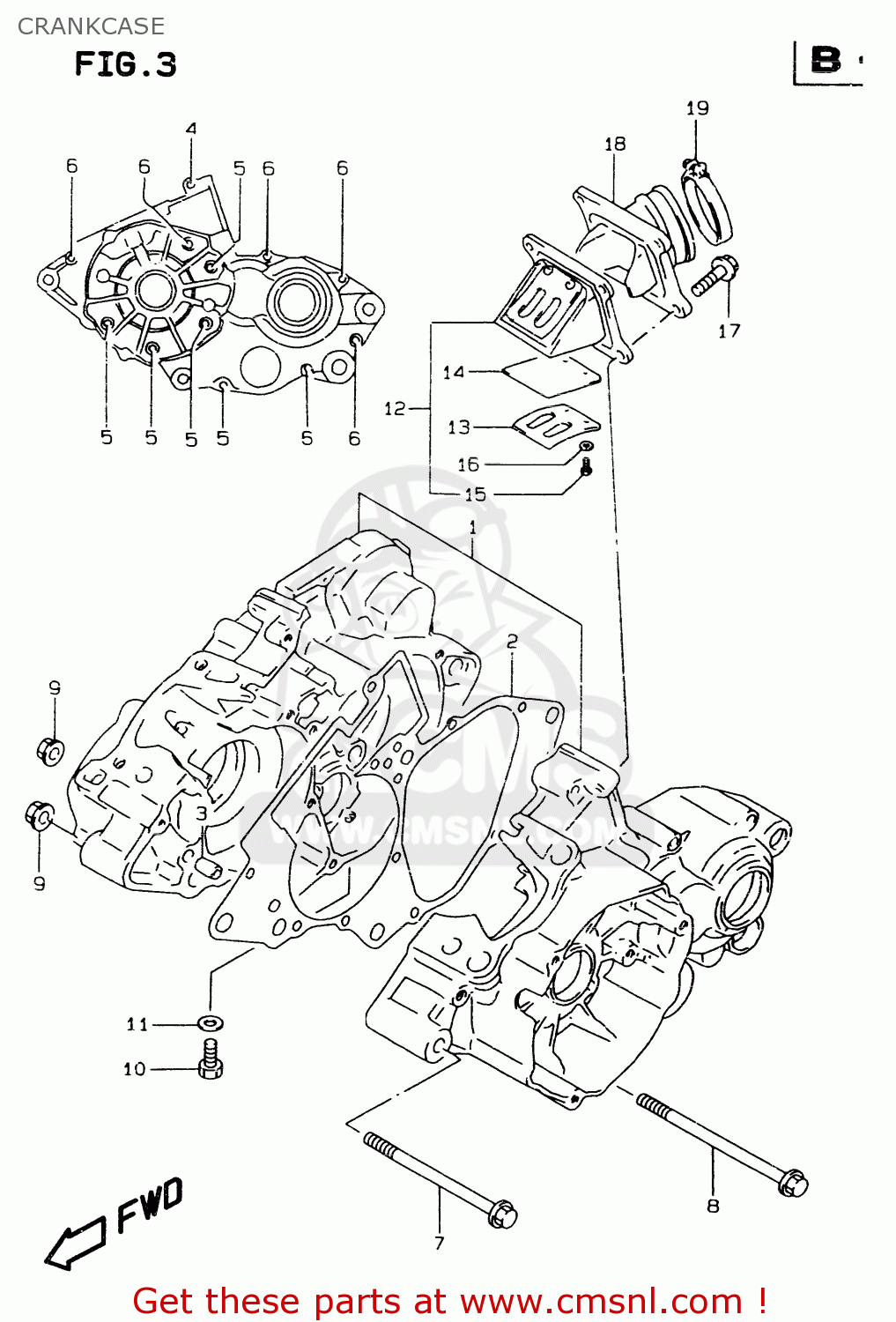

CRANKCASE

ref

part #

description

quantity

1

1130003811
ref: 1

CRANKCASE SET

€ 341.50

2

1148102B40
ref: 2

GASKET,CRANKCASE (NAS)

€ 11.00

3

0421109129
ref: 3

PIN

€ 2.00

4

0154706403
ref: 4

BOLT

€ 3.00

5

0154706403
ref: 5

BOLT

€ 3.00

6

0154706503
ref: 6

BOLT

€ 3.50

7

0910308295
ref: 7

BOLT 8X92

€ 4.50

8

0910308296
ref: 8

BOLT(8X102)

€ 5.50

9

0915908067
ref: 9

NUT

€ 5.50

10

0150008163
ref: 10

BOLT

€ 2.00

11

0916808016
ref: 11

GASKET(8.2X14X1) (NAS)

€ 1.00

12

1315002B50
ref: 12

VALVE ASSY,REED

€ 67.00

13

1315202B50
ref: 13

STOPPER,REED VALVE

€ 4.00

14

1315302B40
ref: 14

VALVE,REED

€ 8.00

15

0211203063
ref: 15

SCREW

€ 2.00

16

0832121033
ref: 16

WASHER,LOCK

€ 1.50

17

0154706203
ref: 17

SCREW

€ 2.50

18

1311002B50
ref: 18

PIPE,INTAKE

€ 51.50

19

0940242306
ref: 19

CLAMP

€ 4.50

all assemblies
