HANDLE LEVER (MODEL K5/K6)

RM85L 2006 (K6) USA (E03)

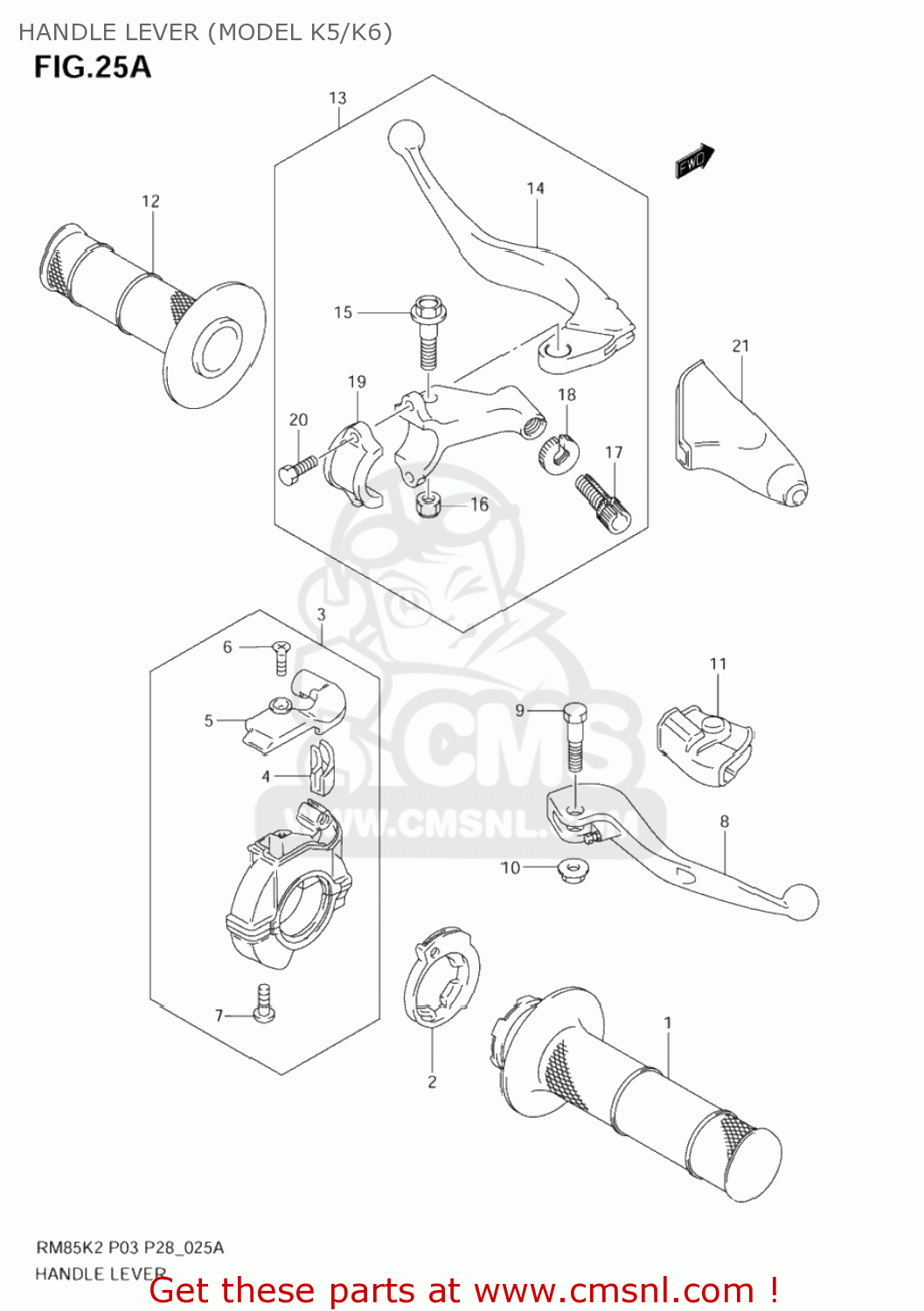

Handle lever (model k5/k6) diagram RM85L 2006 (K6) USA (E03)

HANDLE LEVER (MODEL K5/K6) RM85L 2006 (K6) USA (E03)
HANDLE LEVER (MODEL K5/K6) RM85L 2006 (K6) USA (E03)
HANDLE LEVER (MODEL K5/K6) RM85L 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5711027C00
ref: 1
GRIP,THROTTLE
5711027C00
€ 25.00
2
5711420410
ref: 2
ROTOR,THROTTLE GRIP
5711420410
€ 6.00
3
5710020411
ref: 3
CASE ASSY,THROTTLE
5710020411
€ 53.50
4
5712220410
ref: 4
GUIDE PIECE,THROTTLE
5712220410
€ 4.50
5
5712920411
ref: 5
COVER,THROTTLE CASE
5712920411
€ 8.50
6
0212204103
ref: 6
02122-0410A
SCREW,UPPER
€ 2.50
7
0211205167
ref: 7
SCREW
0211205167
€ 2.50
8
5731037F00
ref: 8
LEVER ASSY,BRAKE
5731037F00
€ 26.00
9
5743114500
ref: 9
BOLT,BRAKE LEVER
5743114500
€ 4.00
10
0831610063
ref: 10
08316-1006B
NUT
0831610063
€ 2.50
11
5734337F00
ref: 11
COVER,BRAKE LEVER
5734337F00
€ 27.00
12
5721127C00
ref: 12
GRIP,L
5721127C00
€ 11.00
13
5750028C12
ref: 13
LEVER ASSY,CLUTCH
5750028C12
€ 43.00
14
5762128C00
ref: 14
LEVER,CLUTCH
5762128C00
€ 36.00
15
5743128C01
ref: 15
BOLT,LEVER
5743128C01
€ 4.50
16
0831921068
ref: 16
08319-2106A
NUT 6MM
0831921068
€ 2.00
17
5744128C10
ref: 17
ADJUSTER,WIRE
5744128C10
€ 9.50
18
5744228C00
ref: 18
NUT,LOCK
5744228C00
€ 11.50
19
5751228C00
ref: 19
BRACKET,CLUTCH LEVER HOLDER
5751228C00
€ 13.00
20
0150005163
ref: 20
01500-0516B
BOLT
0150005163
€ 1.50
21
5734140002
ref: 21
COVER,CLUTCH LEVER
5734140002
€ 7.50
