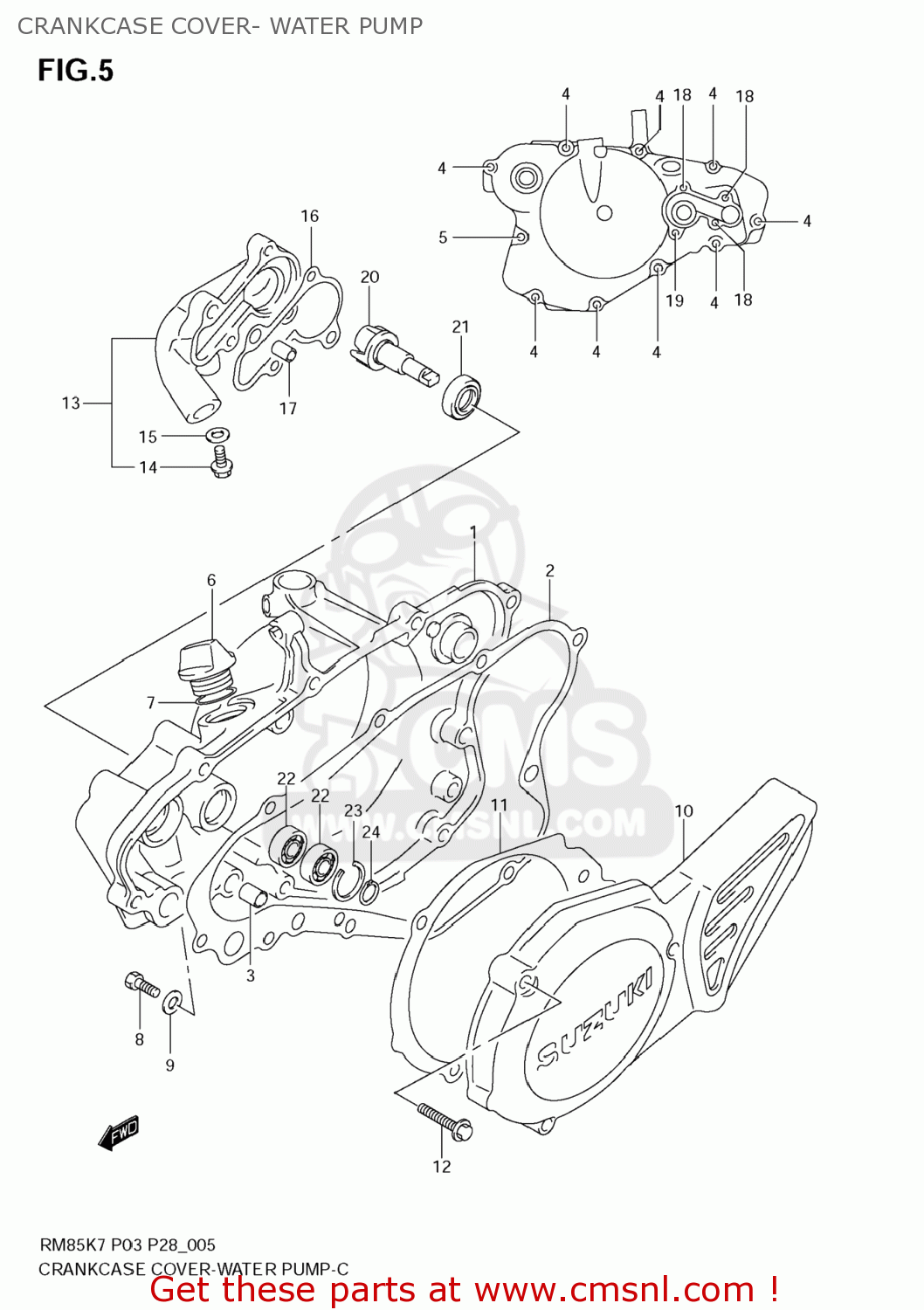

CRANKCASE COVER- WATER PUMP

ref

part #

description

quantity

1

1134103B00
ref: 1

COVER,CLUTCH

€ 122.00

2

1148227C02
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 12.00

3

0421109129
ref: 3

PIN

€ 2.00

4

0910306250
ref: 4

BOLT(6X25)

€ 2.50

5

0910306252
ref: 5

BOLT(6X35)

€ 3.00

6

1197125D00
ref: 6

PLUG,ENGINE OIL FILLER

€ 5.50

7

0928017003
ref: 7

O RING(D:3.1,ID:16.8)

€ 2.00

8

071200610B
ref: 8

BOLT

€ 2.00

9

0916806004
ref: 9

GASKET(6.2X11X1).2 (NAS)

€ 1.50

10

1135103B00
ref: 10

COVER,MAGNETO

€ 37.50

11

1148303B00
ref: 11

GASKET,MAGNETO COVER (NAS)

€ 4.50

12

0910306250
ref: 12

BOLT(6X25)

€ 2.50

13

1741003B00
ref: 13

CASE ASSY,WATER PUMP

€ 63.50

14

1741543D00
ref: 14

BOLT

€ 3.00

15

1741328C10
ref: 15

WASHER

€ 1.50

16

1743102B42
ref: 16

GASKET,WATER PUMP CASE (NAS)

€ 5.00

17

0421109129
ref: 17

PIN

€ 2.00

18

0154706207
ref: 18

BOLT

€ 2.50

19

015470630A
ref: 19

BOLT

€ 2.50

20

1749102B41
ref: 20

IMPELLER,WATER PUMP

€ 17.50

21

1746103B00
ref: 21

SEAL,WATER PUMP OIL

€ 7.00

22

0811306980
ref: 22

BEARING

€ 14.00

23

0938119003
ref: 23

CIRCLIP

€ 2.00

24

0833131086
ref: 24
08331-3108A

CIRCLIP

€ 2.00

all assemblies
