CARBURETOR (MODEL K/L/M/N)
RMX250 1995 (S) USA (E03)

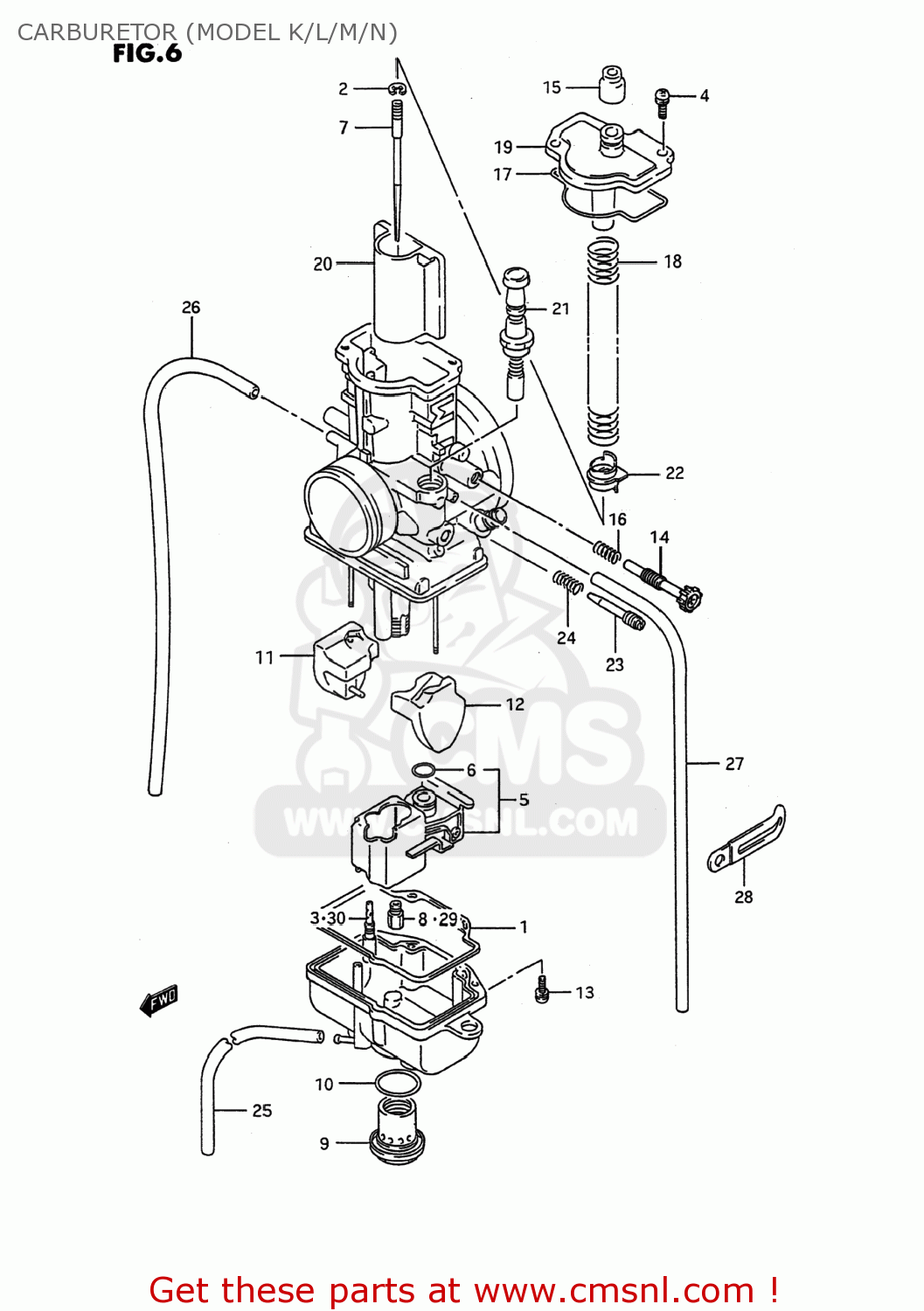

Carburetor (model k/l/m/n) diagram RMX250 1995 (S) USA (E03)
CARBURETOR (MODEL K/L/M/N) RMX250 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320005D00
ref:
13200-05D40
CARBURETOR ASSEMBLY
€ 258.00
1320005D40
ref:
CARBURETOR ASSEMBLY
€ 258.00
1
1369626C00
ref: 1
O RING,FLOAT CHAMBER
€ 12.50
2
1339431210
ref: 2
CLIP,NEEDLE
€ 3.50
3
0949245026
ref: 3
JET,PILOT(45)
€ 14.00
4
1360104128
ref: 4
02112-3412B
SCREW
€ 2.00
5
1337026C00
ref: 5
VALVE ASSY,NEEDLE
€ 41.00
6
1337444080
ref: 6
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
7
1338305D00
ref: 7
NEEDLE,JET
€ 15.00
8-1
0949146001
ref: 8-1
JET,MAIN(230)
€ 6.50
8-2
0949152001
ref: 8-2
09491-52006
JET
€ 7.50
9
1324727C00
ref: 9
CAP,DRAIN
€ 15.00
10
1338927C00
ref: 10
O RING
€ 6.50
11-1
1325201B20
ref: 11-1
FLOAT,R
€ 22.50
11-2
1325205D00
ref: 11-2
FLOAT,RIGHT
€ 23.50
12-1
1325201B21
ref: 12-1
FLOAT,L
€ 21.50
12-2
1325205D10
ref: 12-2
FLOAT,LEFT
€ 19.00
13
0211233106
ref: 13
02112-33103
SCREW
€ 1.50
14
1327913A60
ref: 14
ADJUSTER
€ 5.00
15
1368104010
ref: 15
CAP
€ 3.00
16
1327193011
ref: 16
SPRING
€ 4.50
17
1325126C00
ref: 17
O RING,TOP CAP
€ 9.50
18
1357326C00
ref: 18
SPRING
€ 6.50
19
1326105D00
ref: 19
CAP,TOP
€ 0.00
20
1355126C00
ref: 20
VALVE,PISTON(CA:3.5)
€ 117.50
21
1341126C00
ref: 21
PLUNGER ASSY
€ 41.00
22
1342426C00
ref: 22
RING
€ 7.50
23-1
1326709400
ref: 23-1
SCREW,AIR
€ 5.00
23-2
1326709400
ref: 23-2
SCREW,AIR
€ 5.00
24
1326835010
ref: 24
SPRING
€ 3.00
25
0935130503600
ref: 25
HOSE(3X5X600)
€ 6.50
26
1368337420
ref: 26
09351-35653-600
HOSE
€ 5.50
27
1368337420
ref: 27
09351-35653-600
HOSE
€ 5.50
28
0940406402
ref: 28
09404-06432
CLAMP
€ 2.50
29-1
0949142001
ref: 29-1
09491-42005
JET,MAIN (210)
€ 11.00
29-2
0949144001
ref: 29-2
09491-44007
JET,MAIN (220)
€ 9.50
29-3
0949148003
ref: 29-3
JET,MAIN(240)
€ 13.00
29-4
0949150008
ref: 29-4
JET,MAIN(250)
€ 12.50
29-5
0949152001
ref: 29-5
09491-52006
JET
€ 7.50
29-6
0949154002
ref: 29-6
JET,MAIN(270)
€ 11.50
29-7
0949156003
ref: 29-7
JET,MAIN(280)
€ 14.50
30-1
0949250018
ref: 30-1
JET,PILOT(50)
€ 17.50
30-2
0949260013
ref: 30-2
JET,PILOT (60)
€ 10.50
30-3
0949265007
ref: 30-3
JET,PILOT (65)
€ 9.00
