REAR BRAKE
RS175 1982 (Z) USA (E03)

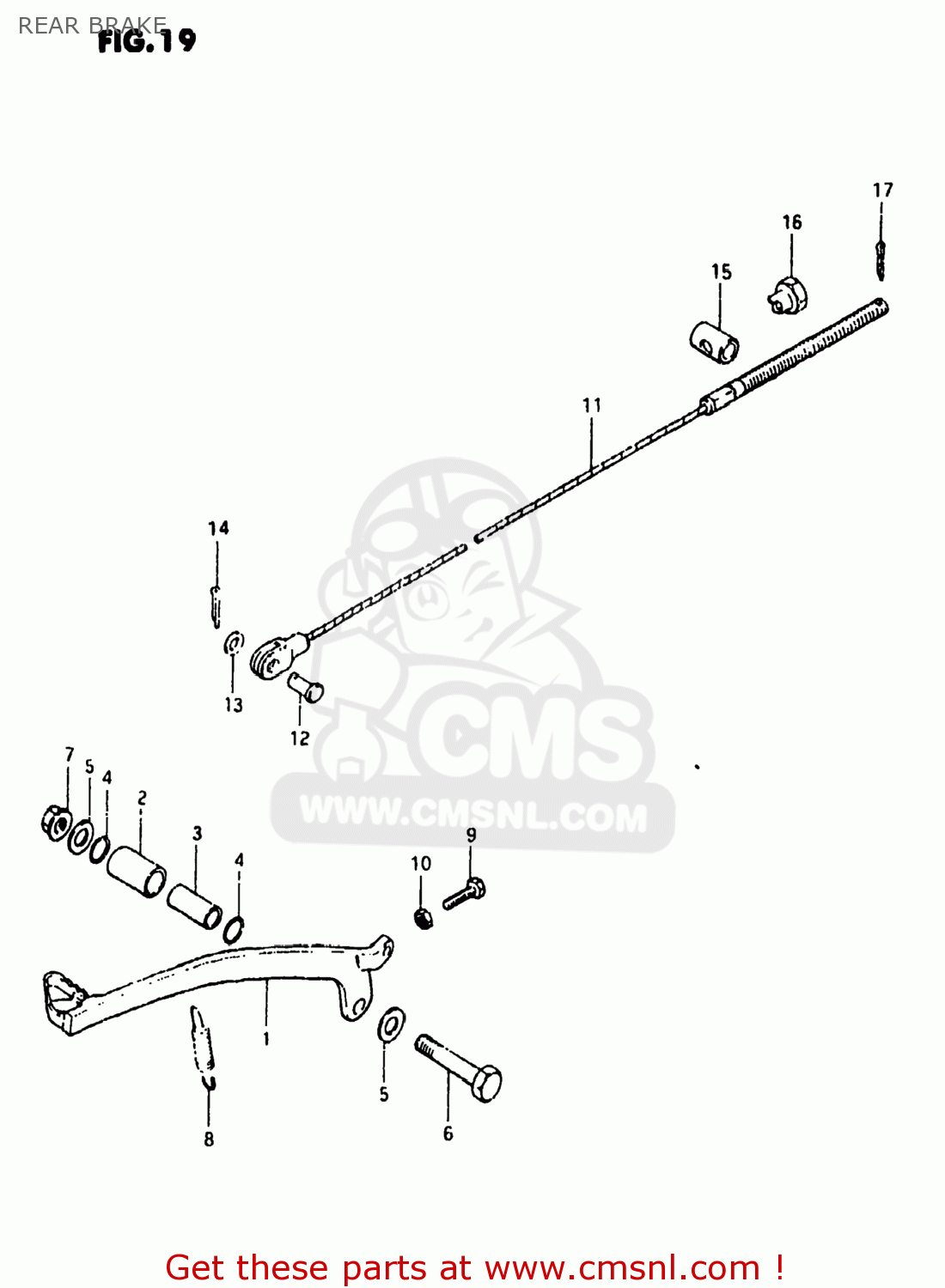

Rear brake diagram RS175 1982 (Z) USA (E03)
REAR BRAKE RS175 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311040201
ref: 1
PEDAL,BRAKE
€ 41.50
2
0931914003
ref: 2
BUSH
€ 18.00
3
0918010055
ref: 3
SPACER(10X14X32.2)
€ 8.50
4
0928014007
ref: 4
O RING(D:1.5,ID:13.8)
€ 2.00
5
0821110221
ref: 5
WASHER
€ 2.50
6
0910010122
ref: 6
09100-10021
BOLT
€ 3.50
7
0831921108
ref: 7
09159-10027
NUT
€ 3.00
8
0944311006
ref: 8
09443-11006-XC0
SPRING
€ 6.00
9
0910006009
ref: 9
BOLT(6X23)
€ 1.50
10
0831011068
ref: 10
08310-00067
NUT
€ 2.50
11
5851040400
ref: 11
CABLE,RR BRAKE
€ 19.50
12
0920005001
ref: 12
PIN(L:17.5)
€ 1.50
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
14
0411120208
ref: 14
04111-2020A
PIN 20X20
€ 1.50
15
0920913004
ref: 15
PIN
€ 7.50
16
0915006001
ref: 16
09150-06010
NUT
€ 3.50
17
0411120158
ref: 17
04111-2015A
PIN
€ 1.50
