REAR SWINGING ARM
SP125 1988 (J) USA (E03)

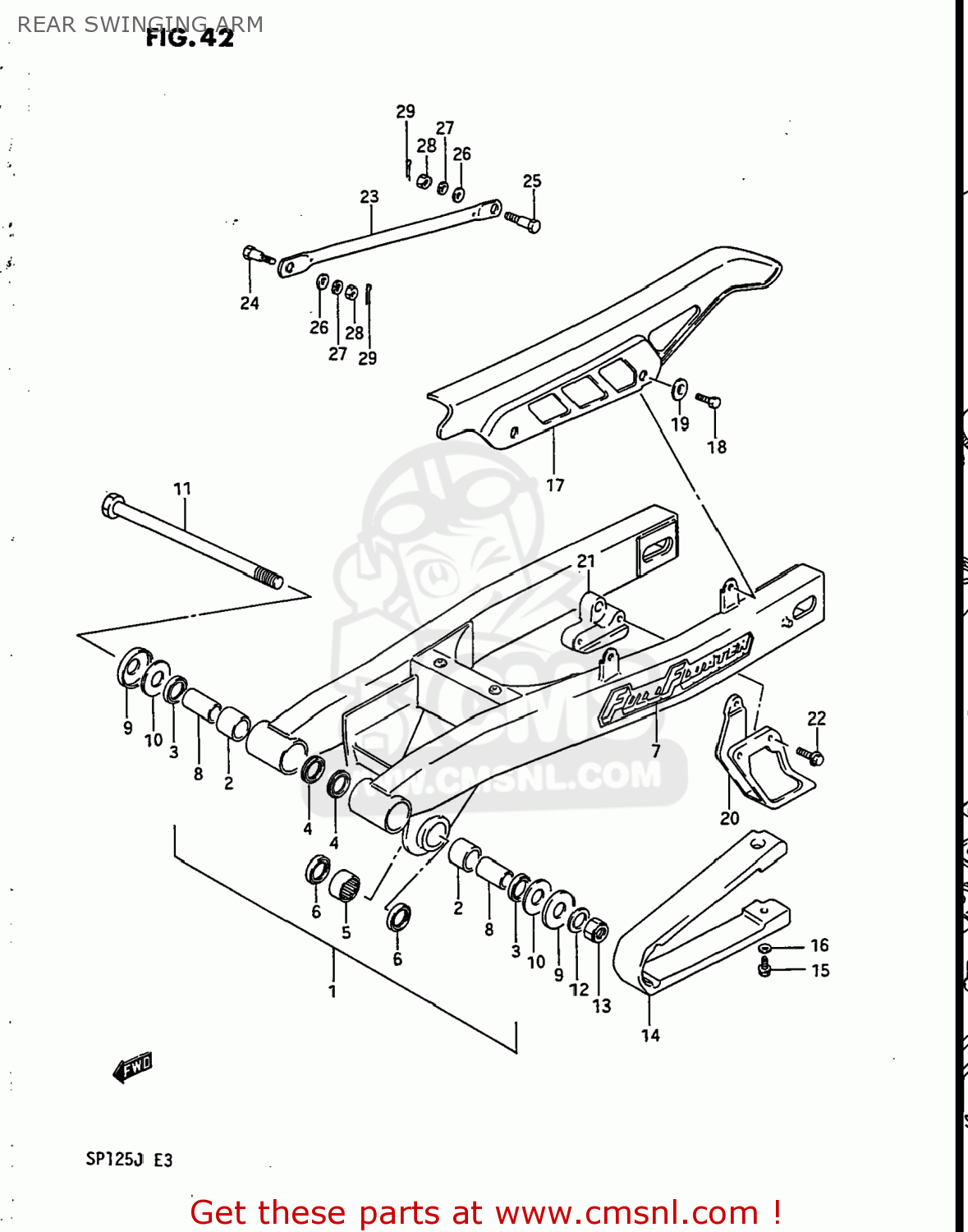

Rear swinging arm diagram SP125 1988 (J) USA (E03)
REAR SWINGING ARM SP125 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
611004484013L
ref: 1-1
61000-44A30-13L
SWING ARM ASSEMBLY,REAR
€ 356.00
1-2
611004484113L
ref: 1-2
61000-44A30-13L
SWING ARM ASSEMBLY,REAR
€ 356.00
2
6126113700
ref: 2
BUSHING,RR SWGARM PIVOT
€ 8.00
3
0928520005
ref: 3
09283-20031
OIL SEAL
€ 5.00
4
0928620001
ref: 4
SEAL,OIL(20X27X5)
€ 2.50
5
0926320031
ref: 5
09263-20053
BEARING
€ 15.50
6
6264744A00
ref: 6
SEAL,CUSHION LEVER OUT DUST
€ 3.50
7
6838144A0069L
ref: 7
EMBLEM
€ 4.50
8
6125142A00
ref: 8
SPACER,RR SWGARM PVT
€ 9.50
9
6126240400
ref: 9
COVER,RR SWGARM DUST SEAL
€ 4.00
10
0821114322
ref: 10
WASHER
€ 2.50
11
6121144A00
ref: 11
61211-44A11
SHAFT,REAR SWING ARM
€ 28.50
12-1
0832211144
ref: 12-1
08322-0114A
WASHER
€ 2.00
12-2
0916014043
ref: 12-2
09160-14027
WASHER
€ 2.50
13
0831921145
ref: 13
08319-2114A
NUT
€ 3.00
14
6127344A00
ref: 14
BUFFER,CHAIN TOUCH DEFENSE
€ 24.00
15
0151705168
ref: 15
01550-05167
BOLT
€ 1.50
16
0916905012
ref: 16
WASHER
€ 3.00
17
6131101A02
ref: 17
61311-01A03
CASE,CHAIN
€ 33.50
18
0110706104
ref: 18
01500-0610B
BOLT
€ 2.00
19
0916906026
ref: 19
WASHER
€ 2.00
20
6134113A00
ref: 20
61341-13A10
GUIDE,CHAIN
€ 20.00
21
6134542A00
ref: 21
RUBBER,CHAIN GUIDE
€ 7.50
22
0151706205
ref: 22
01550-0620A
BOLT
€ 2.50
23
643114870013L
ref: 23
TORQUE LINK,RR
€ 11.50
24
0911108015
ref: 24
BOLT(8X22)
€ 3.00
25
0911108013
ref: 25
BOLT(8X26.5)
€ 3.00
26
0832211088
ref: 26
08322-01087
WASHER
€ 2.00
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
0914008008
ref: 28
NUT
€ 1.50
29
0411120208
ref: 29
04111-2020A
PIN 20X20
€ 1.50
