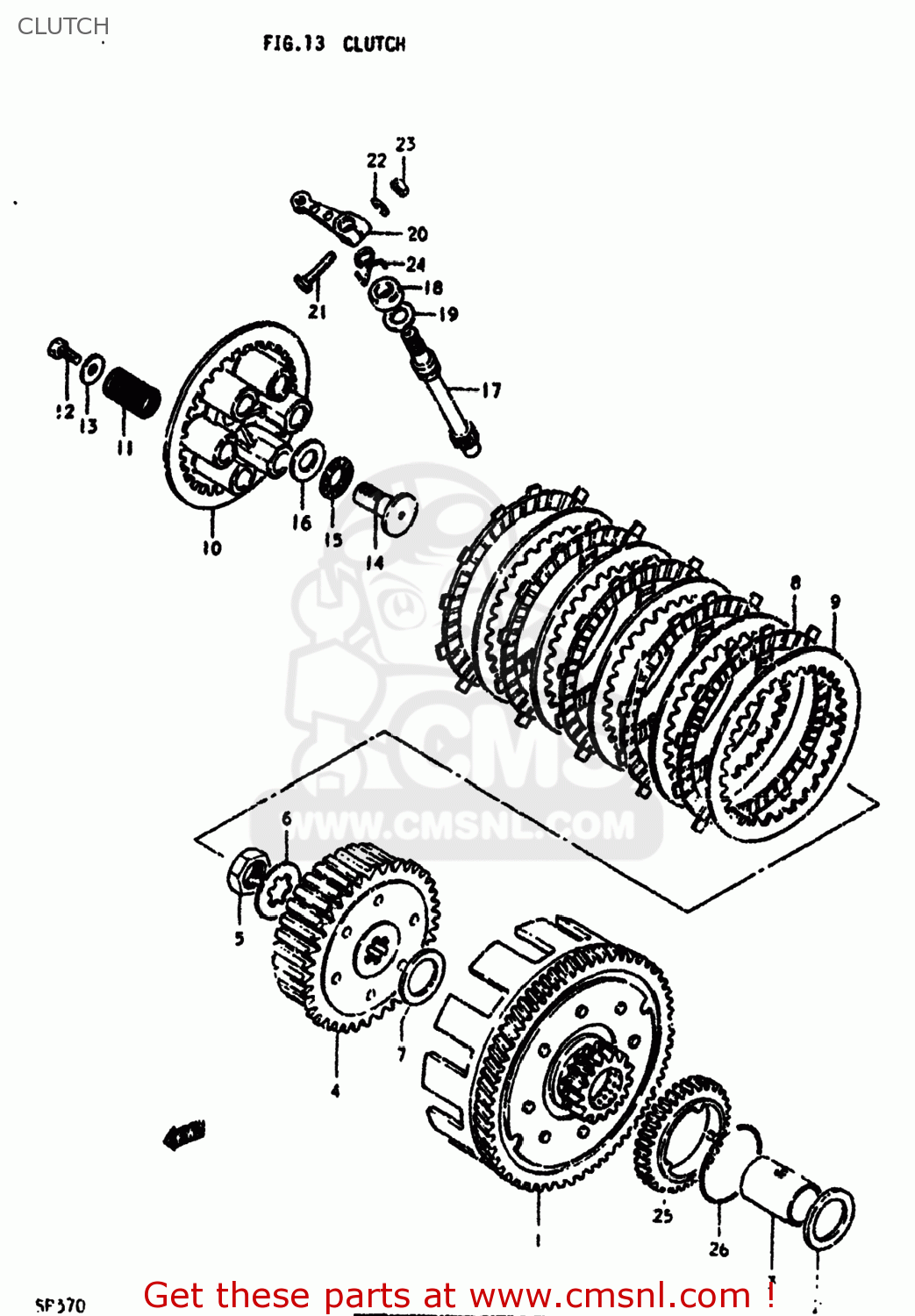

CLUTCH

ref

part #

description

quantity

1

2120032402
ref: 1
21200-37100

GEAR ASSEMBLY,PRIMARY DRIVE

€ 236.50

2

0821122383
ref: 2

WASHER

€ 3.00

3

0918022014
ref: 3

SPACER

€ 9.50

4

2141141101
ref: 4

HUB,CLUTCH SLEEVE

€ 69.00

5

0914020002
ref: 5
09140-20001

NUT (20MM)

€ 3.50

6

0916720006
ref: 6
09167-20009

WASHER,LOCK

€ 3.00

7

0916020028
ref: 7

WASHER(20X38X2)

€ 6.50

8

2144116500
ref: 8
21442-37401

PLATE,CLUTCH DRIVE (MCA)

€ 11.50

9

2145131000
ref: 9

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

10

2146216500
ref: 10
21462-14301

DISC,CLUTCH PRESSURE

€ 51.00

11

0944019007
ref: 11

SPRING

€ 3.00

12

0110706168
ref: 12
01500-06167

BOLT, UPPER

€ 3.00

13

0916008020
ref: 13

WASHER

€ 1.00

14

2316516501
ref: 14
23165-16502

RACK,CLUTCH RELEASE

€ 23.00

15

0926315003
ref: 15

BEARING(15X28X2)

€ 7.00

16

0916015015
ref: 16
09160-15045

WASHER

€ 4.00

17

2326116500
ref: 17
23261-16501

PINION,CLUTCH RELEASE

€ 40.50

18

0928512002
ref: 18
09285-12006

OIL SEAL

€ 7.00

19

0918014003
ref: 19

SPACER(14X19X18)

€ 13.00

20

2327116500
ref: 20
23271-45400

ARM,CLUTCH RELEASE

€ 31.50

21

0110706258
ref: 21
01500-06257

BOLT

€ 2.00

22

0832221068
ref: 22
08322-01067

WASHER

€ 2.00

23

0831011068
ref: 23
08310-00067

NUT

€ 2.50

24

0944815005
ref: 24

SPRING

€ 3.00

25

1632132401
ref: 25

GEAR,OIL PUMP DRIVE

€ 31.00

26

0938050001
ref: 26

CIRCLIP

€ 2.50
