MAGNETO

SV1000S 2006 (K6) USA (E03)

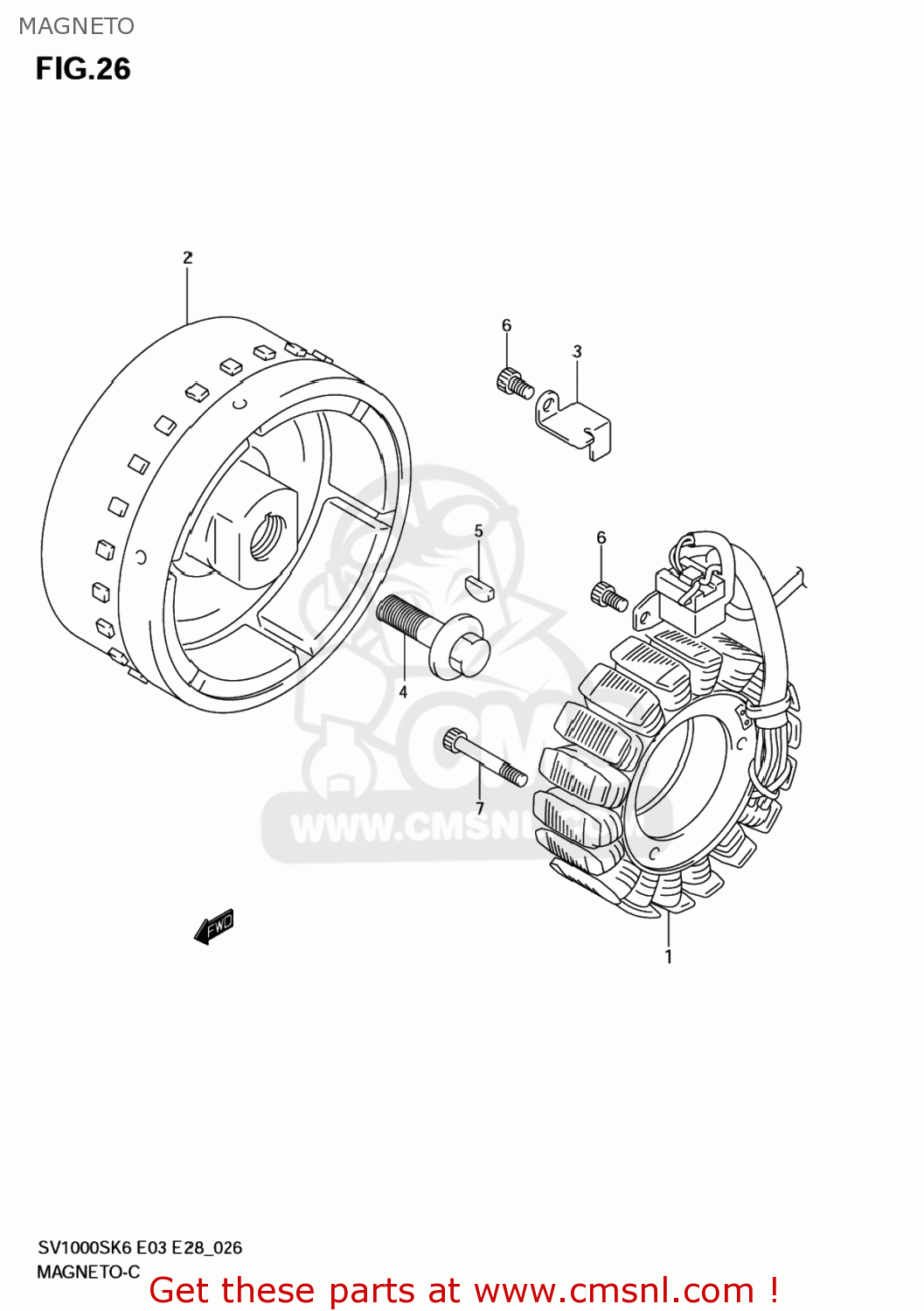

Magneto diagram SV1000S 2006 (K6) USA (E03)

MAGNETO SV1000S 2006 (K6) USA (E03)

MAGNETO SV1000S 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210116G00
ref: 1

STATOR ASSY

€ 275.00

2-1

3210216G00
ref: 2-1

ROTOR ASSY

€ 509.50

2-2

3210216G10
ref: 2-2

ROTOR ASSY

€ 509.50

3

3237113E00
ref: 3

CLAMP,MAGNETO LEAD NO.1

€ 3.00

4

3249106G00
ref: 4

BOLT,MAGNETO ROTOR

€ 7.50

5

0942004008
ref: 5

KEY

€ 3.50

6

071300510B
ref: 6

BOLT

€ 2.00

7

0910606088
ref: 7

BOLT(6X35)

€ 2.50
