REAR CYLINDER HEAD (MODEL K3/K4/K5/K6)
SV650 2004 (K4) USA (E03)

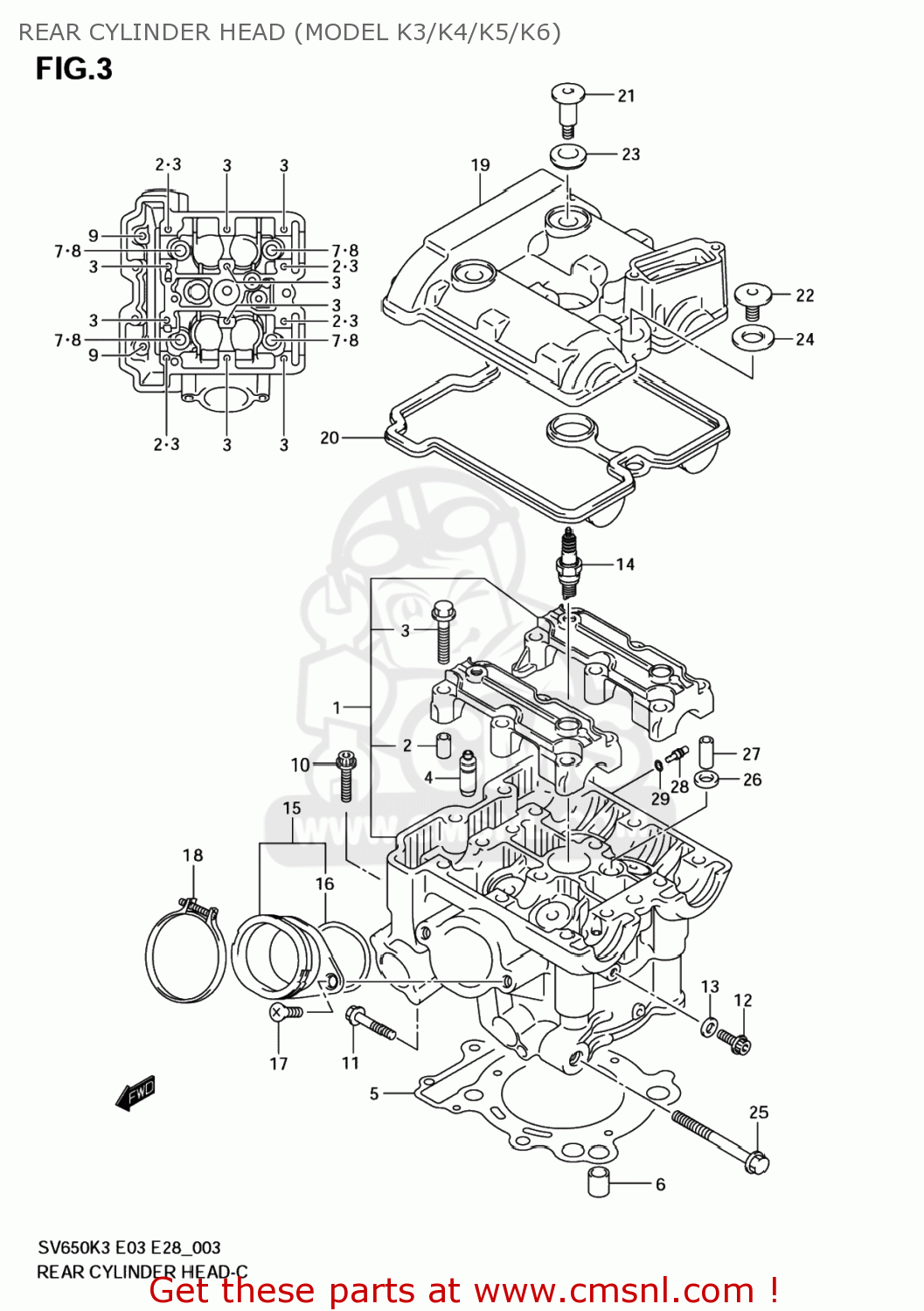

Rear cylinder head (model k3/k4/k5/k6) diagram SV650 2004 (K4) USA (E03)
REAR CYLINDER HEAD (MODEL K3/K4/K5/K6) SV650 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110317G01
ref: 1-1
HEAD ASSY,CYLINDER RR
€ 888.50
1-2
1110317G10
ref: 1-2
HEAD ASSY,CYLINDER RR
€ 888.50
2
0920608001
ref: 2
PIN(6.2X8X11)
€ 2.00
3
0910306026
ref: 3
BOLT(6X39)
€ 2.00
4
1111518D72
ref: 4
GUIDE,VALVE
€ 18.50
5
1114120F00
ref: 5
GASKET,CYLINDER HEAD (NAS)
€ 31.50
6
0421113189
ref: 6
PIN
€ 2.50
7
0916010082
ref: 7
WASHER(10.5X19X2)
€ 2.00
8
0910310272
ref: 8
BOLT(10X160)
€ 14.00
9
0910306103
ref: 9
BOLT(6X70)
€ 2.50
10
0712006403
ref: 10
07120-0640B
BOLT
€ 3.50
11
0155010557
ref: 11
BOLT
€ 3.00
12
0712006123
ref: 12
07120-0612B
BOLT
€ 3.50
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
€ 2.00
14-1
0948200456
ref: 14-1
PLUG,SPARK(CR8E)
€ 7.00
14-2
0948200457
ref: 14-2
PLUG,SPARK(U24ESR-N)
€ 7.00
14-3
0948200458
ref: 14-3
PLUG,SPARK(NGK CR9E)
€ 8.50
14-4
0948200459
ref: 14-4
PLUG,SPARK(U27ESR-N)
€ 8.50
14-5
0948200516
ref: 14-5
PLUG,SPARK(CR7E)
€ 8.50
14-6
0948200515
ref: 14-6
PLUG,SPARK(U22ESR-N)
€ 8.50
15
1310217G00
ref: 15
PIPE ASSY,INTAKE RR
€ 57.50
16
0928046006
ref: 16
O RING(D:2.4,ID:47X42)
€ 8.00
17
0212206163
ref: 17
02122-0616A
SCREW ,6X16
€ 2.00
18
0940262208
ref: 18
CLAMP
€ 6.00
19
1117217G00
ref: 19
COVER,CYLINDER HEAD RR
€ 165.00
20
1117319F01
ref: 20
GASKET,CYLINDER HEAD COVER (NAS)
€ 26.50
21
0910607009
ref: 21
BOLT(7X17.5)
€ 4.50
22
0910607010
ref: 22
BOLT(7X31)
€ 4.50
23
0916111008
ref: 23
WASHER(10.6X25.5X2.3)
€ 4.50
24
1119213E00
ref: 24
CUSHION,HEAD COVER BOLT
€ 4.50
25
0910310148
ref: 25
BOLT(10X110)
€ 7.50
26
1118235F00
ref: 26
GASKET,2ND AIR PASSAGE (NAS)
€ 4.00
27
0920608007
ref: 27
PIN(6.2X8X16)
€ 2.50
28
0949380005
ref: 28
JET(8)
€ 12.00
29
0928004004
ref: 29
O RING(D:1.2,ID:4)
€ 2.00
